4KES250T

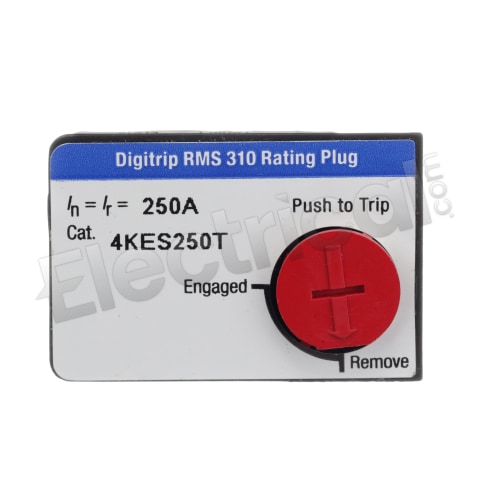

Cutler Hammer - Rating Plug

Cutler Hammer Rating Plug 4KES250T

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

4KES250T Specifications

View Specifications

4KES250T, Cutler Hammer, Series C, type 4KES, interchangeable rating plug element, rated for 250A, suitable for use with the 400A current sensor rating, to be used with Series C- KD,DK,KDB,HKD,HKDB,KDC,CKD,CHKD,KW,HKW,KWC molded case circuit breaker frame types, for use with DIGITRIP,RMS310,KES solid state electronic trip units & circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Rating Plug
Family
Series C

Electrical.com is NOT an authorized distributor for Cutler Hammer and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
4KES250T Specifications:
Part Number4KES250T
Manufacturers
Cutler Hammer
Sub-CategoryRating Plug
FamilySeries C
Type4KES
Weight0.2 lbs
Suit FrameKD,DK,KDB,HKD,HKDB,KDC,CKD,CHKD,KW,HKW,KWC
Suit TripDIGITRIP,RMS310,KES
Amperage Min250
Amperage Max250
