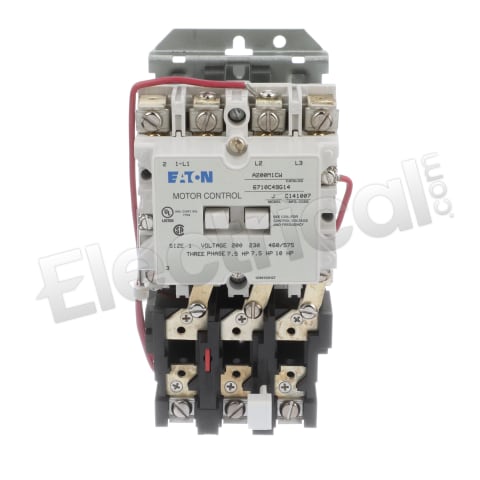

A200M1CW
A200M1CW
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
A200M1CW Specifications
View Full SpecificationsView Specifications
A200M1CW, Cutler Hammer, A200 Series, type A200, 3P, 1 or 3PH, 27A, 600V, 2hp @ 115V 1PH, 7.5hp @ 208V 3PH, 7.5hp @ 240V 3PH, 10hp @ 480V 3PH, 10hp @ 600V 3PH, complete with 240V 60Hz, AC coil, non-reversing starters, NEMA size 1, suitable for use with A200 Series motor control systems
| Part Number | A200M1CW | Family | A200 Series |
| Manufacturer | Cutler Hammer | Type | A200 |
| Subcategory | Motor Starter | Voltage | 600 |
| Part Number | A200M1CW | ||
| Family | A200 Series | ||
| Manufacturer | Cutler Hammer | ||
| Type | A200 | ||
| Subcategory | Motor Starter | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
A200M1CW Specifications:
Part NumberA200M1CW
Manufacturers
Sub-CategoryMotor Starter
FamilyA200 Series
TypeA200
Weight45 lbs
Coil Voltage Min240
Voltage600
Coil Voltage Max240
Amperage27
Poles3
NEMA Rating1
Phase3
Line Cards
Additional Information
Accessories
Similar Products
Need A Repair?
We can test, inspect and repair your A200M1CW. All repairs include a 2-Year Electrical.com Warranty.
To receive a repair quote, complete the repair form or call our expert sales team for an instant quote.
