8536SCO3V02S
8536SCO3V02S
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
8536SCO3V02S Specifications
View Full SpecificationsView Specifications

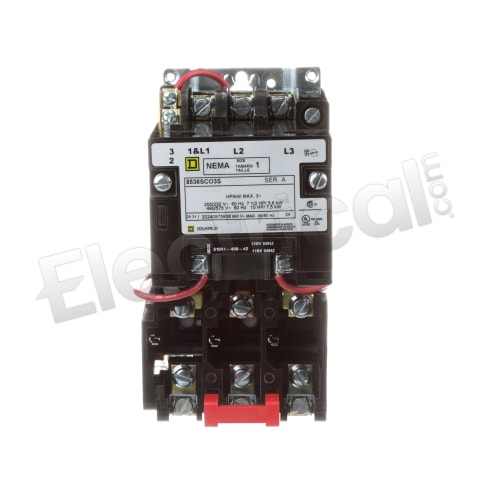

8536SCO3V02S, Square D, Schneider Electric, Class 8536, motor starter, type SCG, 3P, 3PH, 27A, 600V with 120V 60Hz / 110V 50Hz coil, NEMA size 1, open type
| Manufacturer | Square D | Subcategory | Motor Starter |
| Family | Class 8536 | ||
| Manufacturer | Square D | ||
| Subcategory | Motor Starter | ||
| Family | Class 8536 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
We can test, inspect and repair your 8536SCO3V02S. All repairs include a 2-Year Electrical.com Warranty.
The 8536SCO3V02S is a NEMA motor starter from the Square D Type S series, designed for full-voltage starting and stopping of AC squirrel cage motors in commercial and industrial applications. The 8536SCO3V02S features a 3-pole configuration, a 27A current rating, and is rated for operation up to 600V AC. It is a non-reversing, Size 1 starter with a melting alloy thermal overload relay and a 120V AC coil (110V AC at 50 Hz, 120V AC at 60 Hz). The short-circuit current rating (SCCR) for the 8536SCO3V02S is {aic rating}, specifically 5kA at 600V AC. This open-style device is intended for surface mounting and is equipped with screw clamp terminals for secure wiring connections.
The Type S series, which includes the 8536SCO3V02S, is known for its robust construction, flexible overload relay options, and broad compatibility with Square D motor control systems. Since its introduction, the series has been widely used for reliable motor control in a variety of environments, supporting a range of horsepower ratings—up to 10 HP at 460V AC and 7.5 HP at 230V AC for this model. The 8536SCO3V02S is UL listed, CSA certified, and built to meet NEMA standards, ensuring dependable performance and straightforward integration into new or existing installations.
For projects requiring durable and serviceable motor control solutions, the 8536SCO3V02S provides a field-proven platform with easily replaceable components and a design optimized for streamlined installation and maintenance. Electrical.com can assist with technical specifications, selection guidance, and sourcing for the 8536SCO3V02S, ensuring your motor control needs are met with precision and reliability.
