PKL46000S12AB, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 1200A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with 2A/2B auxiliary switch, NA - No Overcurrent Protection, Non-Automatic switch, line & load side lug terminals, molded case circuit breakers

SED361400LIGES3E5, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1400A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HJL36100U44XAFBKYP, Square D, PowerPact, type , 3P, 3PH, 100A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications, micrologic ammeter non-interchangeable trip with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, "ON" or "OFF" end handle padlock device, molded case circuit breakers

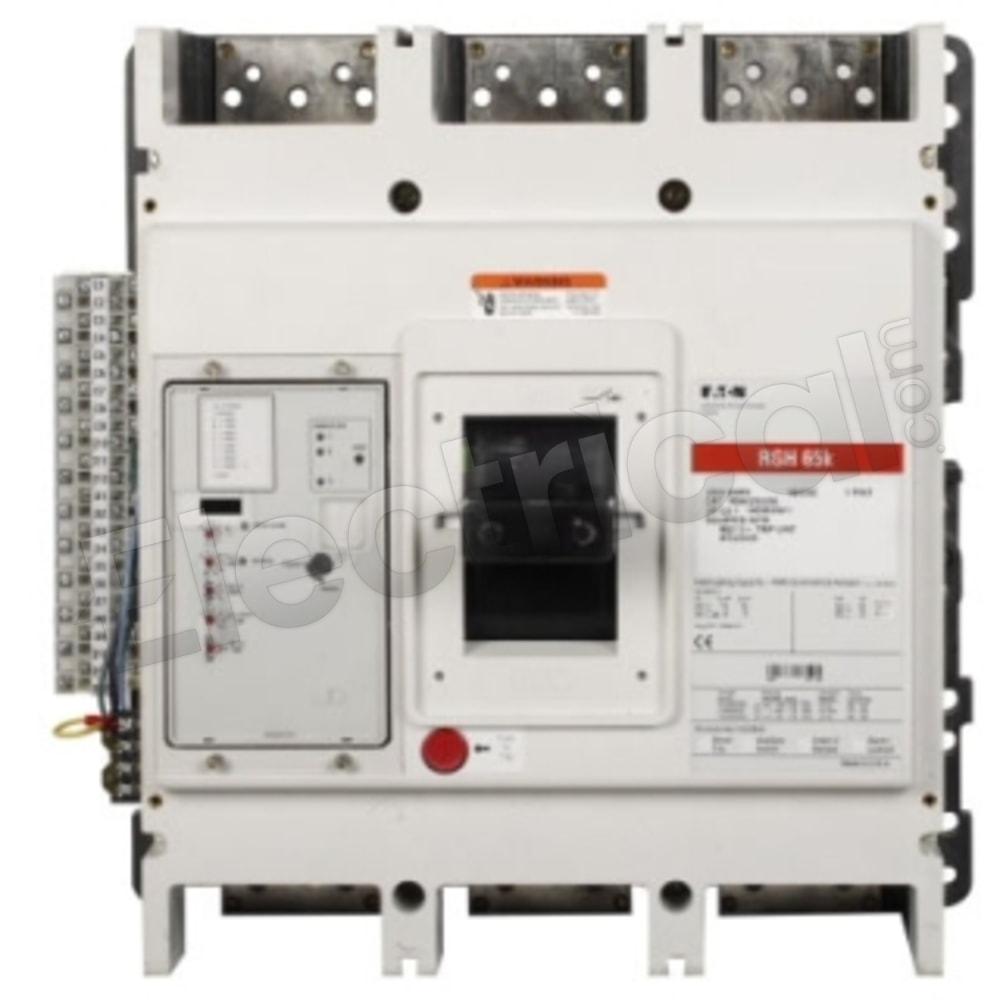

RGH316035MC, Eaton, Cutler Hammer, Series G, type , 3P, 3PH, 1600A, 600V, 65kA@480V, 100% rated, high interrupting capacity, Feed-Thru, LSG - Long-Time, Short-Time and Ground Fault trip functions, complete with Digitrip 310 electronic trip unit with adjustable rating plug and line & load side lug terminals, metric threading, Solid State electronic, molded case circuit breakers

LNX3E100, Siemens, VL Series, type , 3P, 3PH, 1000A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with non-interchangeable LCD trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, suitable for reverse feed applications, Solid State electronic, molded case circuit breakers

MDN4083LEA0522NMNFNYNLCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch, Castell key interlock & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HJW3125, Eaton, Westinghouse, Cutler Hammer, Series C, type , 3P, 3PH, 125A, 690V, 70kA@415V, IEC rated, high interrupting capacity, Feed-Thru, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable thermal magnetic, Thermal Magnetic, molded case circuit breakers

HDA260601SPYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 60A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 48 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

LA-4000B-EO-DO-LIG, Siemens-Allis, LA Series, type , 4000A frame size, electrically operated/Draw-Out, 3P, 3PH, 4000A current sensor rating, 600V, 85kA@480V, originally supplied with StaticTrip II or LimiTrip overcurrent trip devices but can also be retrofitted with a modern Solid State electronic trip unit with LIG - Long-Time, Instantaneous and Ground Fault trip functions, low voltage power air circuit breakers

SED36300LIES9C4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDG34K0400E2XN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 400A, 50kA@480V, Bolt-On, no lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0522NMNE2EHNCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

NRLA36100CU41A, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 1000A, 600V, 100kA@480V, UL listed, very high interrupting capacity, I-Line Style Plug-In, 100% rated, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

HDA36150U31XAFBC, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B low-level aux switch, alarm switch, molded case circuit breakers

PDG32GH250D2WJ, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 1PH, 2P, 600V, 250A, high override, 35kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0522NMNX2ENKMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0822NMNANNNKCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

PDF53K1200E2XM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 1200A, 50kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

SEHF361800LIGV1, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 120VAC undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260404ABBC, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 40A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch, molded case circuit breakers

PXF361600LSGZ, Square D, Micrologic, type , 3P, 3PH, 1600A, 600V, 100kA@480V, high interrupting capacity, Bolt-On, complete with Micrologic non-interchangeable trip LSG - Long-Time, Short-Time and Ground Fault standard trip functions and rating plug, lugs not included, Solid State electronic, molded case circuit breakers

MPA31F20V0440, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50L trip unit, 220/250V dc/ac closing coil and 220/250V dc/ac shunt trip, 3P, 3PH, 2000A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault, Solid State electronic, insulated case circuit breakers

SEF361000T2, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 24VDC shunt trip & 120VAC undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0822NMNC2NNHMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired
