HJA36060BKSJ, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 60A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, low-level, 525/600 VAC shunt trip, molded case circuit breakers

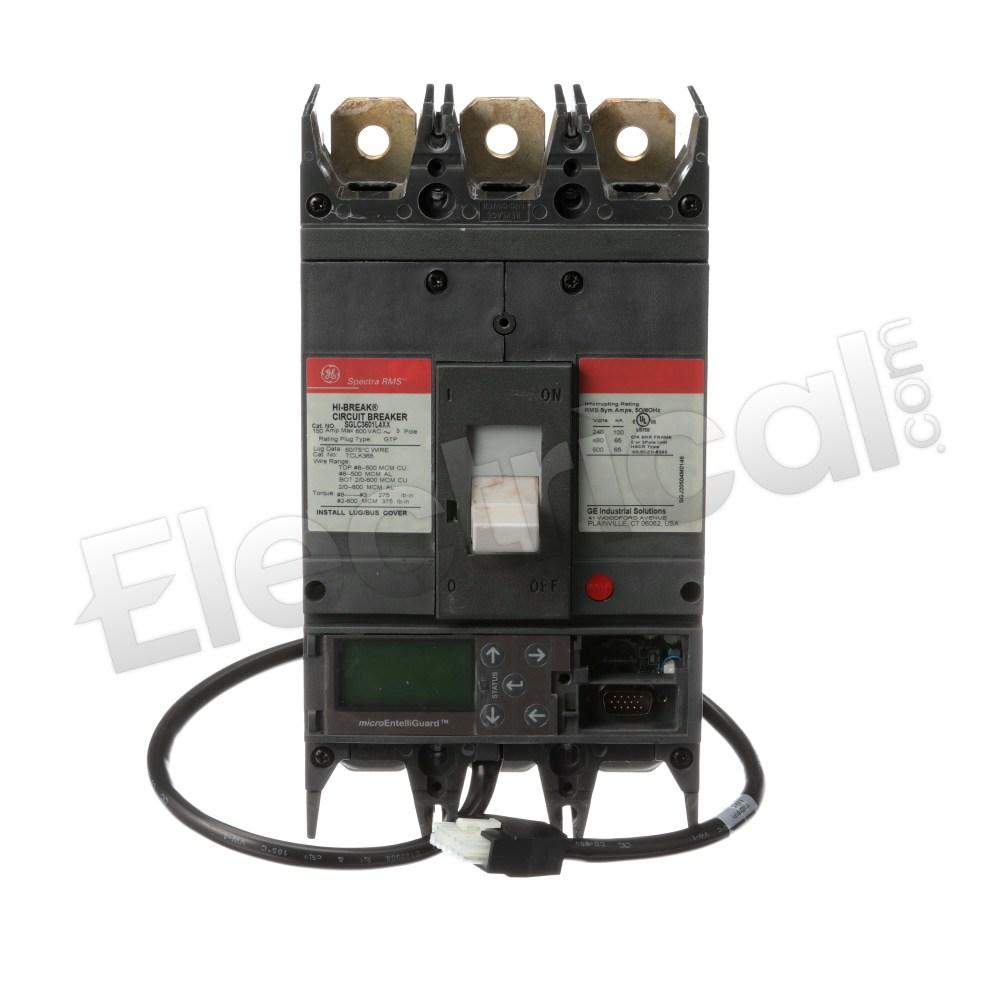

SGLL3601L4XX General Electric Spectra Series, type , 3P, 3PH, 150A, 600V, 65kA@480V, high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

AKR-7D-30H, General Electric, AKR Series, type , 800A frame, 3PH, 3P, 635Vac, 150A, 400A or 800A sensor rating available, 42kA@508V, Draw-Out AKD-8 with substructure, available either mechanically operated or electrically operated, with MicroVersa Trip RMS-9, LI - Long-Time and Instantaneous trip functions, optional functions available, Solid State electronic, low voltage air circuit breakers

MDN4083LEA0222NMNN4NNLMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0722NMNX4ENHCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SEHD363200LSGES7D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 3200A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 125VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDG34GH250D3MJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 250A, High Override, 35kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PGD46100U73AE1AB, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 1000A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with 2A/2B auxiliary switch, micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

MDN4083LEA0522NMNA2NNHDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PKF36060U41ABD, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 600A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 1A/1B overcurrent trip switch, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

MDN4083LEA0222NMNX4ENHCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

WLL1F320GQ, Siemens, WL Series, type , frame size I, fixed mount, 3P, 3PH, 2000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU748 programmer+ WLLCD48 LCD display + WLGFM48 ground fault module, LSG - Long-Time, Short-Time and Ground Fault trip functions and 400A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SEHD36300LIGES4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 300A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

FGRP3K0150, General Electric, Record Plus, type , adjustable rating plug element, rated for 150A, suitable for use with 250A rated, type FG 600A frame molded case circuit breakers and SMR1 solid state electronic trip units

HLL36080AFBHUJ, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 525/600 VAC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0422NMNK2EHNCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SED361200LSES6B8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SHMD6A600LIGH, Siemens, Sentron Series, type , 3PH, 3P, 600V, 600A, 65kA@480V, Feed-Thru connection, 100% rated, complete with Sensitrip IV series trip unit with LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

PJL36060CU33ARD10, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with direct mounted standard black handle, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

TFL236080 General Electric TFL Series, type , 3P, 3PH, 80A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

MAP3612001121, Square D, MAP Series, type , 3P, 3PH, 1200A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with 120Vac undervoltage trip (UVR), non-interchangeable trip LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

MDN4083LEA0822NMNXNYNANCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

422284-000, TE Connectivity part and accessory

FP50-1600A-MO-DO-LIG, Federal Pacific, FP Series, type , 1600A frame size, manually operated/Draw-Out, 3P, 3PH, 1600A, 600V, 50kA@480V, originally supplied with electro-mechanical TD-1 or TD-2 overcurrent trip device, but can also be retrofitted with modern Solid State electronic trip unit with LIG - Long-Time, Instantaneous and Ground Fault trip functions, low voltage power air circuit breakers
