MDN4083LEA0222NMNK2YNADCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HDA36035BHUD, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 35A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 208/277 VAC under voltage release (UVR), molded case circuit breakers

RLX-1600A-MO-DO-LSG, Allis Chalmers, RL Series, type , 1600A frame size, manually operated/Draw-Out, 3P, 3PH, 1200-1600A current sensor rating, 600V, 65kA@480V, originally supplied with StaticTrip III RMS trip device but can also be retrofitted with a modern Solid State electronic trip unit with LSG - Long-Time, Short-Time and Ground Fault trip functions, low voltage power air circuit breakers

HGA36020URYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDF34F0250E5WK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 250A, 25kA@480V, 100% UL, Bolt-On, line side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MPA41F20V4310, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50L trip unit, 220/250V dc/ac motor operator, 110/130V dc/ac closing coil and 24/30V dc shunt trip, 4P, 3PH, 2000A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers

RE2025VL, Westinghouse, E Series, type , 2P, 1PH, 25A, 240V, 7kA@240V, standard interrupting capacity, 50°C, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, replacement molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

MDN4083LEA0322NMNA4NNHCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0522NMNJ4ENCMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

PGA36120U31ARD10, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, complete with direct mounted standard black handle, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

PGA36040CU31AAA, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, 100% rated, complete with 1A/1B auxiliary switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

MDN4083LEA0822NMNA4ENKMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

PDG52P1200E2WM, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 1200A, 100kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays, modbus & ZSI option, Solid State electronic, molded case circuit breakers; globally rated

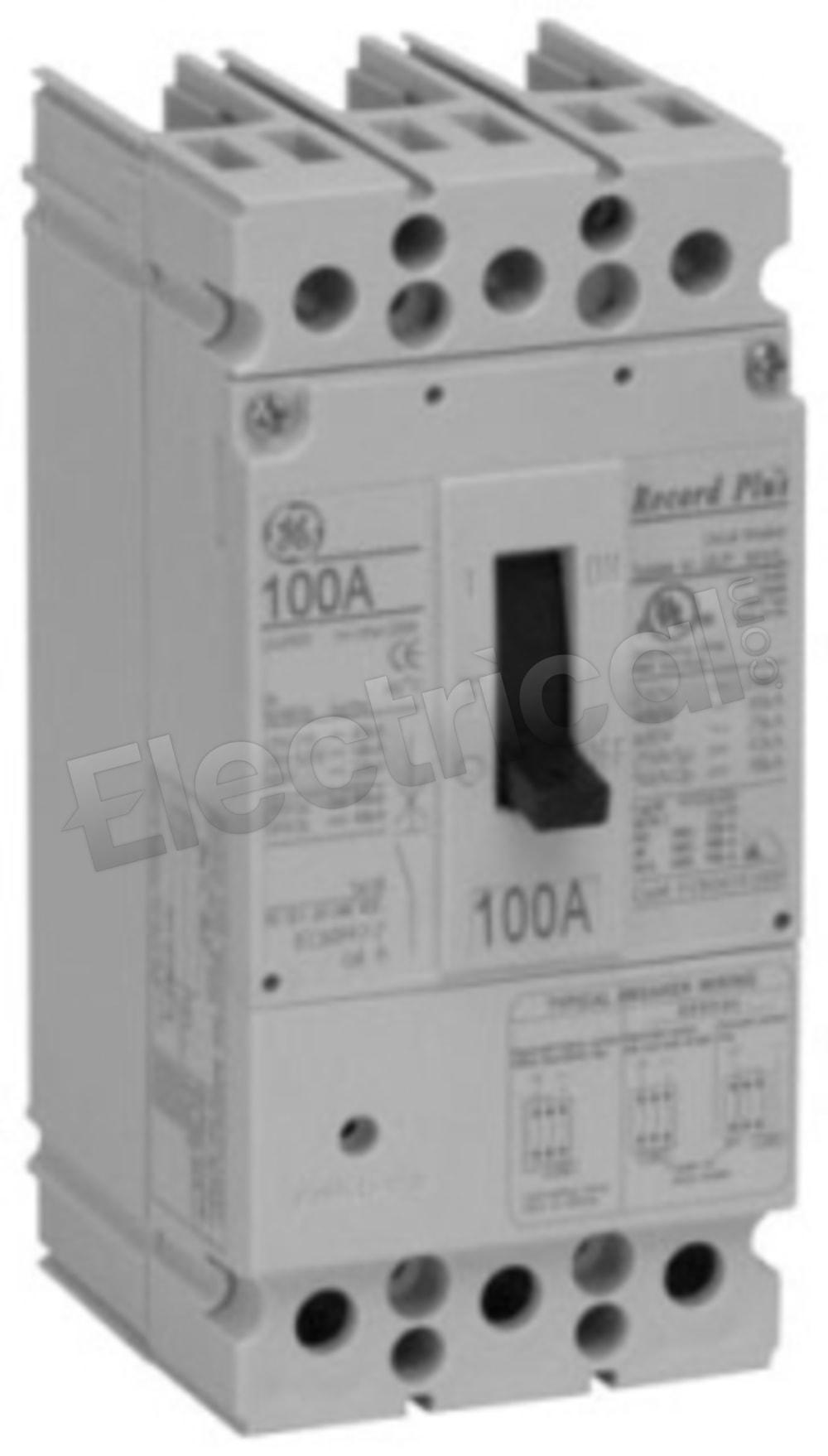

FCS36TE100R2 General Electric Record Plus, type , FC100 frame, 3P, 3PH, 100A, 600V, 25kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, fixed Thermal Magnetic, molded case circuit breakers

NPJP36120CU44A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

SHD6G9H92, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, RELT, modbus communication & relays features and 3000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0122NMNRNYCNCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

QBE32100, Square D, I-Line, type , 3P, 3PH, 100A, 240V, 10kA@240V, UL listed, standard interrupting capacity, I-Line Style Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0322NMNGNNNHDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

PGFN2ATAK0250, General Electric, GuardEon, type , 1PH, 2P in 3P construction, 600V, 75-250A, 65kA@480V, front connection/Feed-Thru, toggle mechanism, complete with PremEon G interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

SEF362500ES1, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 2500A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PA11029, Square D, Square D Series, type , shunt trip, 125V, when installed in a circuit breaker the part number suffix is -1029, suitable for use with PA,PAF,PAL,PAP,PH,PHF,PHL,PHP,PC,PCF,PCL,PCP,PE,PEF,PEL,PEP,PX,PXF,PXL,PXP circuit breaker frame types

E4S-A36-4P-1000A-DO-EO-LSIG, ABB, EMax, type , 4P, 3PH, 3600A frame, 1000A rating plug, 600V, 65kA@480V, Draw-Out, electrically operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance
