PDG52N0800E2CN, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 800A, 85kA@480V, Bolt-On, no terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays & CAM option, Solid State electronic, molded case circuit breakers; globally rated

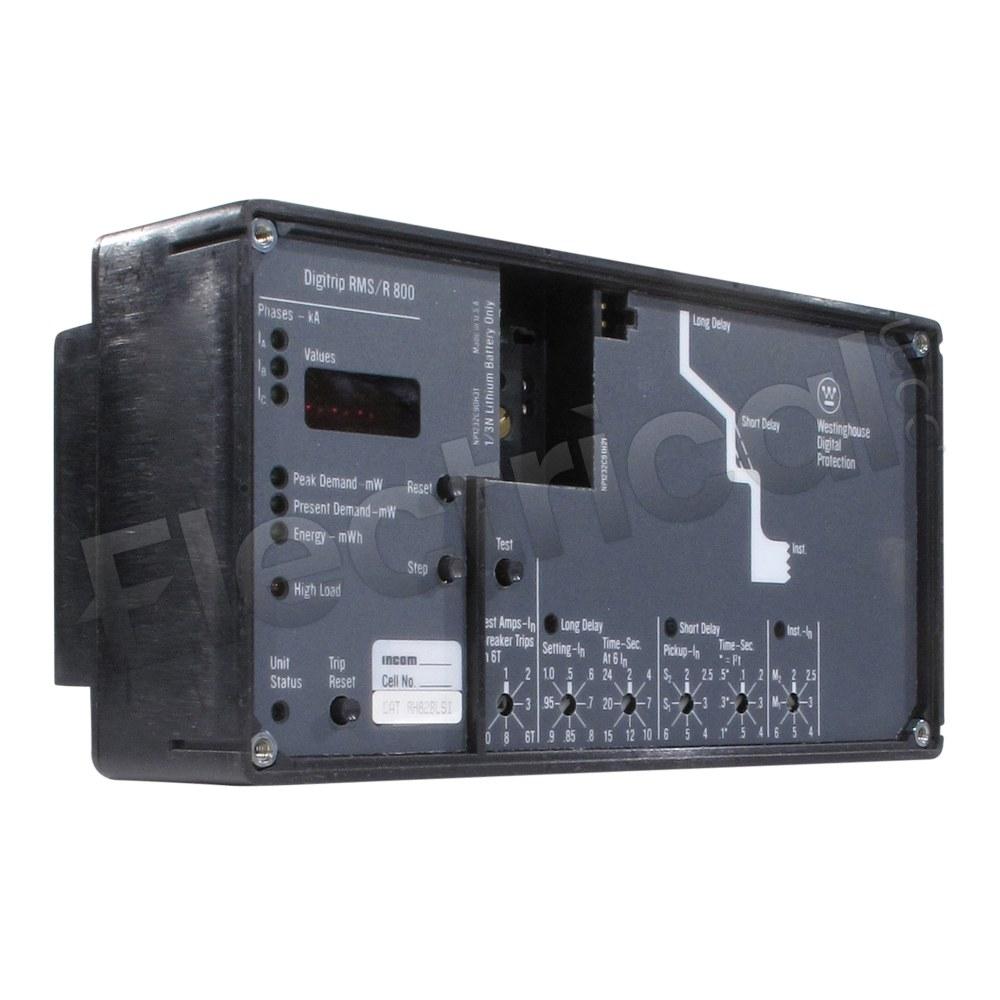

RH82BLSI, Cutler Hammer, Digitrip RMS/R 800 horizontal, style number 1232C84G14, programmable to any amperage requirement, 400 - 5000A, Solid State electronic, LSI - Long-Time, Short-Time and Instantaneous trip functions, suitable for use with DS,DSL,DSII,DSLII,SPB low voltage power air circuit breakers

PGD46120U63AE1, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

LGS440035G, Cutler Hammer, Series G, type , 4P, 3PH, 400A, 600V, 50kA@480V, standard interrupting capacity, Feed-Thru, complete with interchangeable trip, LSG - Long-Time, Short-Time and Ground Fault trip functions and line & load side lug terminals, Solid State electronic molded case circuit breakers

JGM36225T, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 225A, 600V, 35kA@480V, high interrupting capacity, Bolt-On, UL listed, complete with JT3225 interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, Thermal Magnetic, molded case circuit breakers

XT5VU430AZFF000XXX, ABB, SACE Tmax XT, type , 3PH, 4P, 600V, 300A, 150kA@480V, Bolt-On, front terminals, complete with Ekip G Hi-Touch trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, generator protection circuit breakers; 1SDA102699R1 + 1SDA102829R1 global reference

PCF33000K, Westinghouse, SELTRONIC, type , 3P, 3PH, 3000A, 600V, Bolt-On, NA - No Overcurrent Protection, front connected, complete with high magnetic non-interchangeable trip and rating plug, Non-Automatic switch, molded case circuit breakers; these switches are now obsolete; however, we do still stock them

QJH23B08000S01, Siemens, QJ Frame, type , 3P, 3PH, 80A, 240V, 22kA@240V, high interrupting capacity, Bolt-On, complete with 120/240V shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

FHP360201354, Square D, FHP Series, type , 3P, 3PH, 20A, 600V, 25kA@480V, standard interrupting capacity, Bolt-On, complete with 2 sets of 2A/2B aux switches, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

18504, Merlin Gerin, Multi9, type , D curve, magnetic setting between 10 and 14 amp rating, 3P, 3PH, 10A, 440V, IEC rated, 15kA@415V, Feed-Thru, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, Thermal Magnetic, molded case miniature circuit breakers

JJD36250TU54X, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, Draw-Out, UL listed, complete with JE3250U54X, micrologic energy interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

RKF46100U41A, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

ITEQ3015, ITE, Siemens, Q Series, type , dual/twin 2P, 1PH, 30/15A, 120/240V, 10kA@240V, standard interrupting capacity, Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

MPA41F1200300, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches and 110/130V dc/ac closing coil, 4P, 3PH, 1250A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

434043 General Electric Record Plus, type , FG630 frame, FGH46KA400NLF, 4P, 3PH, 400A, 690V, 80kA@415V, Bolt-On, complete with interchangeable modular electronic SMR2 trip, LS - Long-Time and Short-Time trip functions, rating plug not included, Solid State electronic, molded case circuit breakers

LV429692ATS3, Schneider Electric, Compact, type , 4P, 3PH, 100A, 690V, 70kA@415V, Bolt-On, complete with NSX100H frame, type UA, 220Vac controller, automatic transfer switch and 4 pole TM63D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

FIL360601627, Square D, FIL Series, type , 3P, 3PH, 60A, 600V, 200kA@480V, current limiting, Feed-Thru, complete with 48Vdc UVR and 2A/2B aux switch, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

MAP364501029, Square D, MAP Series, type , 3P, 3PH, 450A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with 125Vdc shunt trip, non-interchangeable trip LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

MP160KH, Murray Corporation, MP Series, type , 1P, 1PH, 60A, 120V, 22kA@120V, standard interrupting capacity, 40°C, Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

S5H400TW-2, ABB, SACE Isomax, type , 2P, 1PH, 400A, 600VAC/500VDC, 65kA@480V, 65kA@415V, Bolt-On, suitable for reverse feed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers

EGH2040FFGVH08, Cutler Hammer, Series G, type , 2P, 1PH, 40A, 600V, 65kA@480V, high interrupting capacity, for Marine applications 50°C, not UL listed, Feed-Thru, complete with non-interchangeable trip unit and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

TJ9V2606G General Electric MicroVersaTrip, type , J600 frame type, 3P, 3PH, 600A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with 9-function MVT, LIG - Long-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

FBV16TE025RV General Electric Record Plus, type , FB100 frame, 1P, 1PH, 25A, 600V, 150kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals and panel connections, fixed Thermal Magnetic, molded case circuit breakers

S4N100CW, ABB, SACE Isomax, type , 3P, 3PH, 100A, 600V, 25kA@480V, 35kA@415V, Bolt-On, suitable for reverse feed applications, complete with PR212 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers
