HDA36070UAYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 70A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

NW25H2-3P-FIXED, Square D, Schneider Electric, Masterpact, type , W-Frame, 3P, 3PH, 2500A, 690V, 100kA@440V, IEC rated, very high interrupting capacity, Bolt-On, complete with Micrologic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, Universal Power insulated case circuit breakers

QDA321756, Square D, I-Line, type , 3P, CBA phase connection, 3PH, 175A, 240V, 25kA@240V, UL listed, standard interrupting capacity, I-Line Style Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

BGA140253, Schneider Electric, Square D, PowerPact, type , 1PH, 1P, 480Y/277Vac, 25A, 65kA@240V, I-Line Style Plug-In with B phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, Thermal Magnetic, molded case circuit breakers

PJL36100CU43A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

FAF36020V, Square D, FAF Series, type , 3P, 3PH, 20A, 600V, 18kA@480V, standard interrupting capacity, Bolt-On, complete with visi-trip window, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

NAL3612001027, Square D, NAL Series, type , 3P, 3PH, 1200A, 600V, 50kA@480V, standard interrupting capacity, Feed-Thru, complete with 24Vdc shunt trip and non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

PLA34060U33A, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase connection, 3PH, 600A, 480V, 100kA@480V, UL listed, extra high interrupting capacity, I-Line Style Plug-In, complete with micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

FAP14080, Square D, FAP Series, type , 1P, 1PH, 80A, 277V, 18kA@277V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

FA24015AC1021, Square D, I-Line, type , 2P, 1PH, 15A, 480V, 18kA@480V, standard interrupting rating, 40°C, I-Line Style Plug-In, A & C phase circuit configuration, with 120/240V shunt trip, Thermal Magnetic, molded case circuit breakers

HDA36100USYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 250 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

M08N1PP, Square D, Schneider Electric, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 3P, 3PH, 800A max, Solid State electronic, 600V, 50kA@480V, with plug n' play special feature

FAP14035V, Square D, FAP Series, type , 1P, 1PH, 35A, 277V, 18kA@277V, standard interrupting capacity, Bolt-On, complete with visi-trip window, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

NW12L-3P-DRAWOUT, Square D, Schneider Electric, Masterpact, type , W-Frame, 3P, 3PH, 1200A, 600V, 150kA@480V, very high interrupting capacity, Draw-Out, complete with Micrologic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, Universal Power insulated case circuit breakers

KHB36250, Square D, I-Line, type , 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting rating, 40°C, I-Line Style Plug-In, with bolt tighten feature, Thermal Magnetic molded case circuit breakers

MJA36450YP, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase circuit configuration, 3PH, 450A, 600V, 65kA@480V, UL listed, current limiting, I-Line Style Plug-In, complete with handle padlock, basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

HDA36030AABCSDYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 30A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 208/277 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

LXP364501352, Square D, Micrologic, type , 3P, 3PH, 450A, 600V, 65kA@480V, Bolt-On, high interrupting capacity, complete with 2A/2B auxiliary switch, standard function Micrologic Series B non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

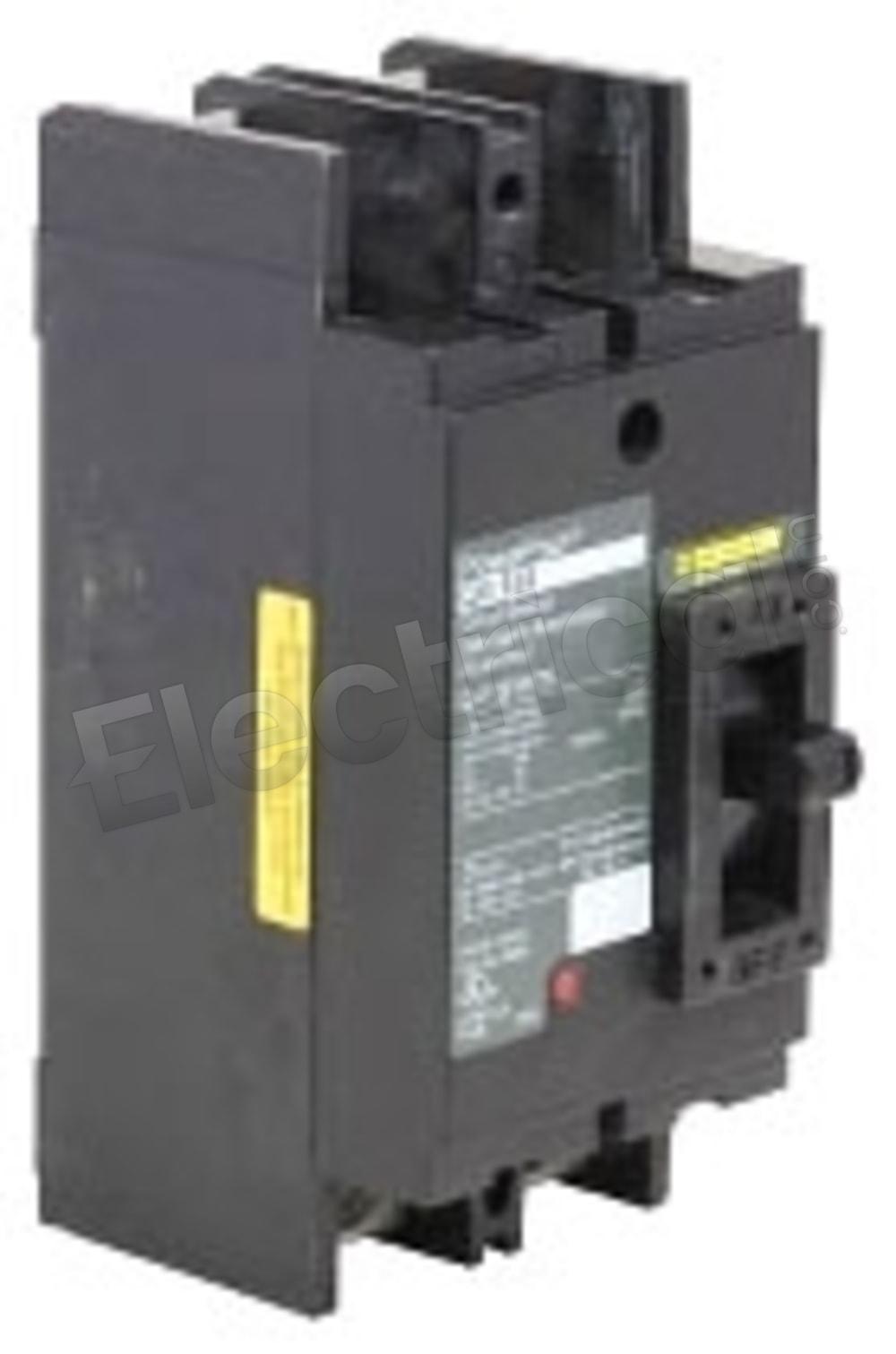

QGP22080TM, Square D, Meter-Pak, type , 2P, 1PH, 80A, 120/240V, 65kA@240V, UL listed, very high interrupting capacity, Bolt-On, for use in 225A MPL lever bypass METER-PAK metering equipment, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, top feed main, Thermal Magnetic, molded case circuit breakers

KCP24090, Square D, KCP Series, type , 2P, 1PH, 90A, 480V, 65kA@480V, extra high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

FIP26050TF, Square D, FIP Series, type , top-feed, 2P, 1PH, 50A, 600V, 200kA@480V, current limiting, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

HJL36030SN, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 30A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, complete with 12Vdc shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

NW08H1-4P-DRAWOUT, Square D, Schneider Electric, Masterpact, type , W-Frame, 4P, 3PH, 800A, 690V, 65kA@440V, IEC rated, high interrupting capacity, Draw-Out, complete with Micrologic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, Universal Power insulated case circuit breakers
