PAF2026G-800A, Square D, PAF Series, type , 2P, 1PH, 800A, 600V, 42kA@600V, complete with PA2800RC 800A rating columns, magnetic trip range 3200A-9000A, standard interrupting capacity, 40ºC, Bolt-On, Thermal Magnetic molded case circuit breakers

PKF36060CU43A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 600A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

RLF36250CU44A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 2500A, 600V, 100kA@480V, UL listed, very high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HGA36125SHYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 125A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA36060AABCSH, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 60A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC shunt trip, molded case circuit breakers

PCL261200, Square D, PCL Series, type , 2P, 1PH, 1200A, 600V, 100kA@480V, extra high interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

BDA260155, Schneider Electric, Square D, PowerPact, type , 1PH, 2P, 600Y/347Vac, 15A, 18kA@480V, I-Line Style Plug-In with CA phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, Thermal Magnetic, molded case circuit breakers

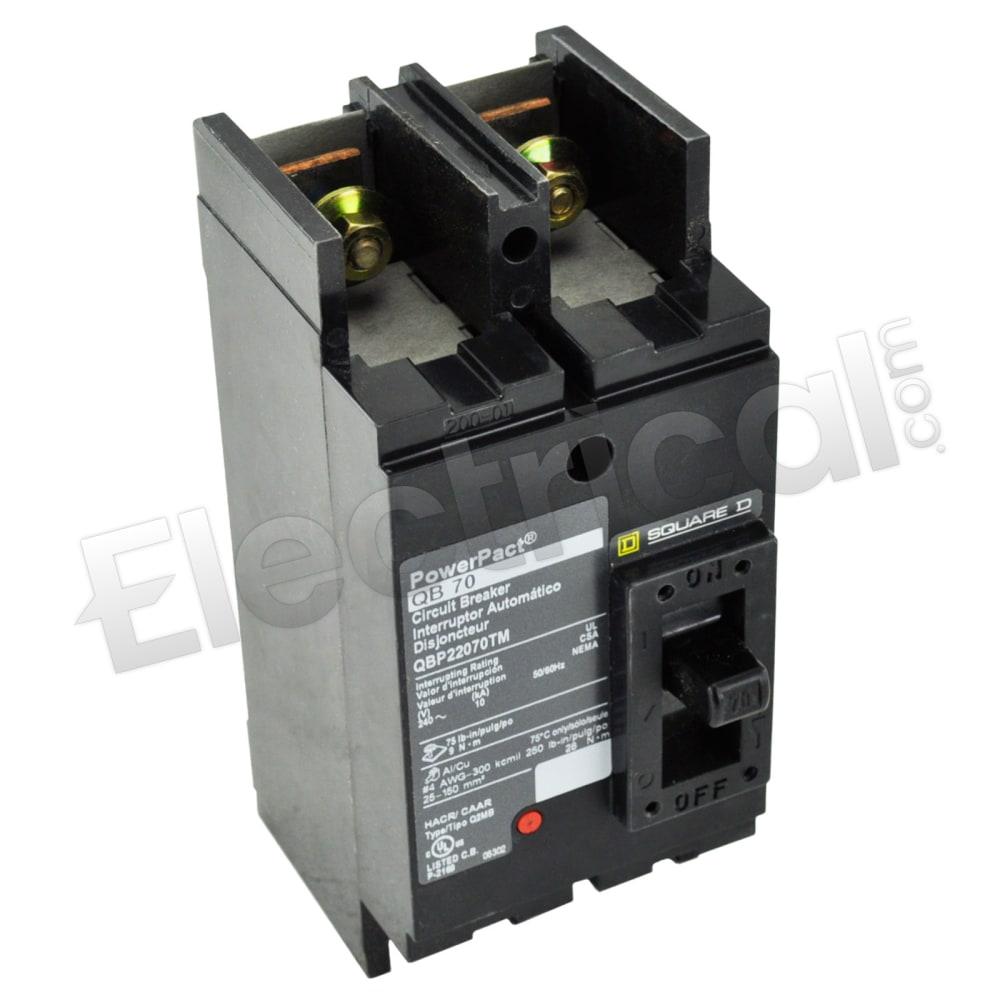

QBP22070TM, Square D, PowerPact, type , 2P, 1PH, 70A, 240V, 10kA@240V, UL listed, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers for use in 225A MPL lever bypass METER-PAK metering equipment

MP20N1, Schneider Electric, Square D, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 3P, 3PH, 2000A max, Solid State electronic, 600V, 50kA@480V

KCP24200, Square D, KCP Series, type , 2P, 1PH, 200A, 480V, 65kA@480V, extra high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

HGL36090AABC, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, molded case circuit breakers

QJP22070TM, Square D, EZ Meter-Pak, type , 2P, 1PH, 70A, 120/240V, 100kA@240V, UL listed, very high interrupting capacity, Bolt-On, for use in 225A MPL lever bypass METER-PAK metering equipment, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, top feed main, Thermal Magnetic, molded case circuit breakers

MC20N1, Merlin Gerin, Square D, insulated case circuit breaker, Masterpact, type , 3P, 3PH, 2000A max, Solid State electronic, 600V, 50kA@480V

HDA36100U43XAABCSH, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC shunt trip, molded case circuit breakers

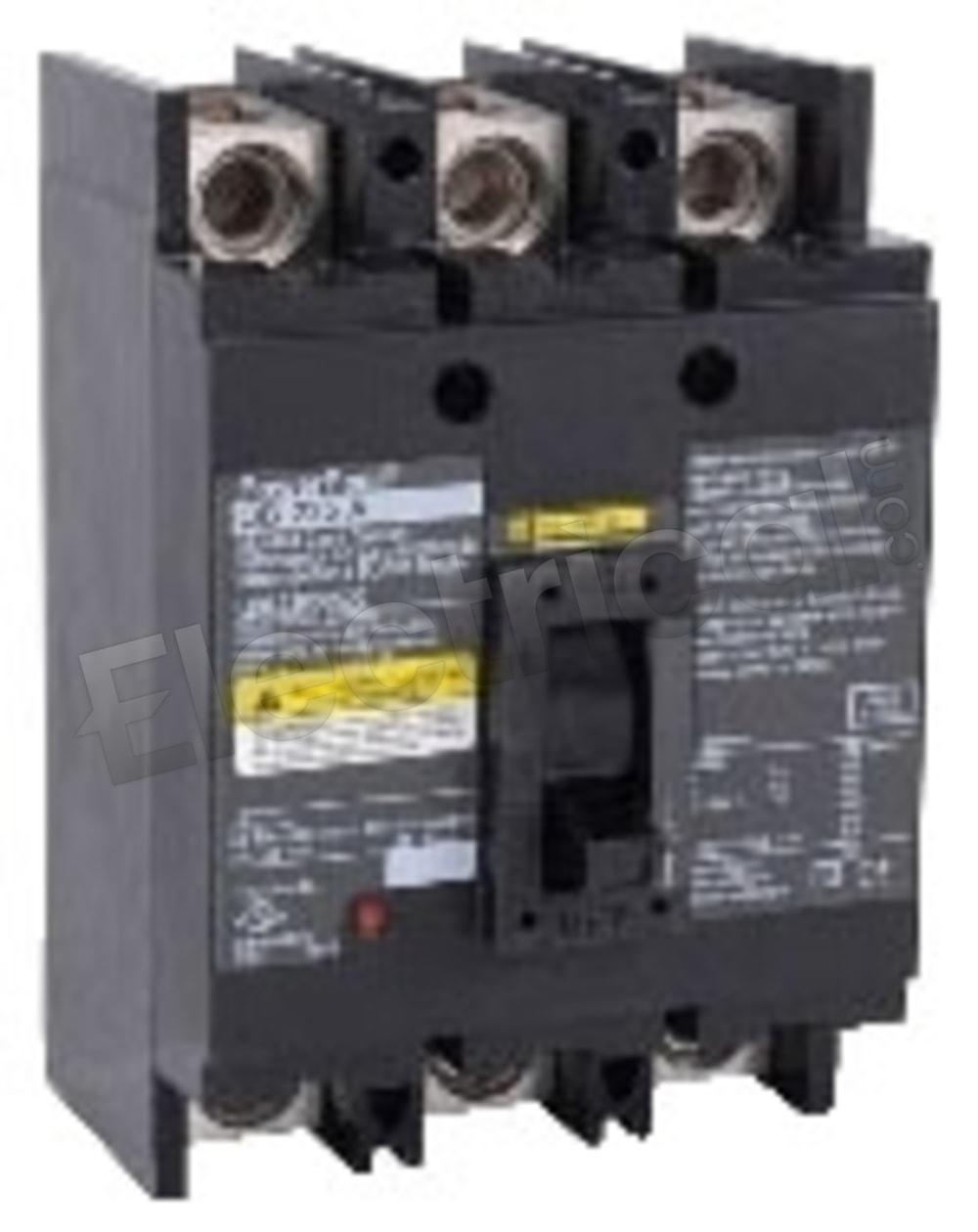

QBL32000S22, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 200A, 240V, 10kA@240V, very high interrupting capacity, Feed-Thru, UL listed, NA - No Overcurrent Protection, Non-Automatic switch, line & load side lug terminals, molded case circuit breakers

HDA261002AABCSHYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

PLA34040U41A, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase connection, 3PH, 400A, 480V, 100kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

NW25H2-3P-DRAWOUT, Square D, Schneider Electric, Masterpact, type , W-Frame, 3P, 3PH, 2500A, 690V, 100kA@440V, IEC rated, high interrupting capacity, Draw-Out, complete with Micrologic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, Universal Power insulated case circuit breakers

PAP261000, Square D, PAP Series, type , 2P, 1PH, 1000A, 600V, 50kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

FAF36030V, Square D, FAF Series, type , 3P, 3PH, 30A, 600V, 18kA@480V, standard interrupting capacity, Bolt-On, complete with visi-trip window, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

FHL360351021, Square D, FHL Series, type , 3P, 3PH, 35A, 600V, 25kA@480V, standard interrupting capacity, Feed-Thru, complete with 120/240Vac shunt trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

PJL26000S12, Square D, Schneider Electric, PowerPact, type , 2P, 1PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, NA - No Overcurrent Protection, Non-Automatic switch, line & load side lug terminals, molded case circuit breakers

RLF36120U41A, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1200A, 600V, 100kA@480V, UL listed, very high interrupting capacity, Bolt-On, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, lug not included, Solid State electronic, molded case circuit breakers

HGF36035, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 35A, 600V, 35kA@480V, high interrupting capacity, Bolt-On, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers
