SEF36350LSIGET3, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MP40H2-3P-4000A-EO-BO-LS, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 4000A frame, includes 4000A sensor rating with 4000A rating plug, 3P, 3PH, 600V, 125kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

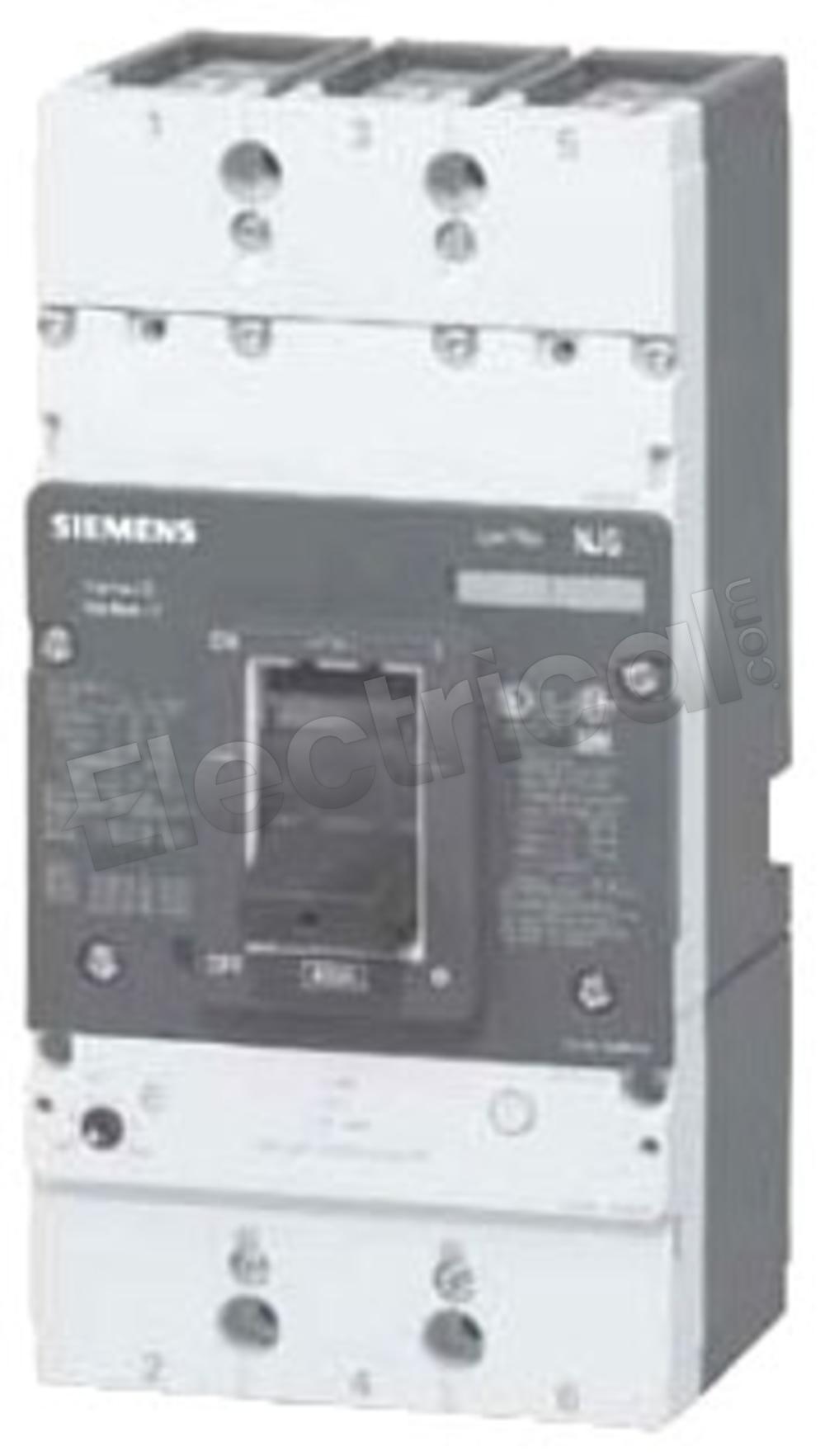

LJY3R400L, Siemens, VL Series, type , 3P, 3PH, 400A, 600V, 100kA@480V, extra high interrupting capacity, Feed-Thru, 100% rated, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers

HLA36060URYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 60A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

WLF2A32C, Siemens, WL Series, type , frame size 2, 800A fuse, 3P, 3PH, 2000A, 635V, 200kA@508V, UL 1066 listed, standard interrupting capacity, Draw-Out, Solid State electronic, low voltage power insulated case circuit breakers

PXF361400ZPL, Square D, Micrologic, type , 3P, 3PH, 1400A, 600V, 100kA@480V, high interrupting capacity, Bolt-On, complete with Micrologic non-interchangeable trip and padlock handle, LSI - Long-Time, Short-Time and Instantaneous standard trip functions and rating plug, lugs not included, without bus mounting kit, Solid State electronic, molded case circuit breakers

HJA260204ABBHSHYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 20A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

AKRU-8D-50, General Electric, AKR Series, type , fused 1600A frame, accepts NEMA fuse class L fuses, 3PH, 3P, 600V, 800A or 1600A sensor rating available, 200kA@600V, Draw-Out AKD-8 with substructure, available either mechanically operated or electrically operated, with Epic MicroVersaTrip Solid State programmer, LI - Long-Time and Instantaneous trip functions, optional functions available, low voltage power air circuit breakers

NZMH4-AE1200-NA, Klockner Moeller, Eaton, NZM4 Series, type , 3P, 3PH, 600V, 1200A, 85kA@480V, high switching capacity, Bolt-On/fixed mounting, with screw terminals, Thermal Magnetic, molded case circuit breakers, UL/CSA rated

HJL36150M74AABEYP, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, Magnetic Only, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SHF4G6Z9P, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 2500A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, current metering & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

KE-A-4000-EO-BO-LSI, ITE, KE Series, type , 4000A frame size, electrically operated/fixed mount, 3P, 3PH, 4000A max current sensor rating, 600V, 100kA@600V, originally supplied with OD dual overcurrent trip device but can be retrofitted with a modern Solid State electronic trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions, low voltage power air circuit breakers

MDN4083LEA0622NMNRNYNAMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0122NMNENENKNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDG34G0600E2ZN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 600A, 35kA@480V, Bolt-On, no lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

LG3500S09, Cutler Hammer, Eaton, Westinghouse, Series G, type , 3P, 3PH, 500A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, suitable for reverse feed applications, magnetic pickup range 500-2500, complete with left-pole mounted 110-240Vac, 50/60Hz left side mount shunt trip, I - Instantaneous trip functions and line & load side lug terminals, Solid State electronic, engine generator molded case circuit breakers

HGA36050AFBKSRYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 50A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 125 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0322NMNENYNCNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

XT5SQ460BZFF000XXX, ABB, SACE Tmax XT, type , UL 100% rated, 3PH, 4P, 600V, 600A, 50kA@480V, Bolt-On, front terminals, complete with Ekip G Hi-Touch trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, generator protection circuit breakers; 1SDA102694R1 + 1SDA102831R1 + 1SDA112974R1 global reference

HLA36100AFBHUS, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 250 VDC under voltage release (UVR), molded case circuit breakers

GEE3025AFM, Cutler Hammer, Series G, type , 3P, 3PH, 25A, 480V, 25kA@480V, standard interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, metric end caps, adjustable Thermal Magnetic, molded case circuit breakers

MDN4083LEA0322NMNF2ENHMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers

DGN36150E59, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 35kA@480V, standard interrupting capacity, UL listed, Plug-In, 100% rated, complete with STR53UP-FTI trip with fault indicator, residual-type ground-fault protection & ammeter, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

MDN4083LEA0122NMNC4YNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, & OTS switch, Solid State, low voltage power insulated case circuit breakers
