WLL2D316CL, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1600A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU748 programmer + WLGFA48 ground fault module, LSGA - Long-Time, Short-Time and Ground Fault Alarm trip functions and 250A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PGL46040U33AAC, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru, complete with 3A/3B auxiliary switch, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0422NMNK4ENHCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

NPJD36080CU41A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, high interrupting capacity, 100% rated, Draw-Out, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

MDN4083LEA0722NMNK4NNNNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

XT5LU460BPFF000XXX, ABB, SACE Tmax XT, type , 3PH, 4P, 600V, 600A, 100kA@480V, Bolt-On, front terminals, complete with Ekip Touch with LSI - Long-Time, Short-Time and Instantaneous trip functions, Ekip Touch LSI electronic, molded case circuit breakers; 1SDA102698R1 + 1SDA102799R1 global reference

HJL36100U44XAFBHSR, Square D, PowerPact, type , 3P, 3PH, 100A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications, micrologic ammeter non-interchangeable trip with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, complete with 2A/2B low-level aux switch, alarm switch low-level, 125 VDC shunt trip, molded case circuit breakers

SKLL36CD1800C, General Electric, Spectra Series, type , 3P, 3PH, 800A, 600V, 65kA@480V, complete with SRPK1000B800 rating plug, high interrupting capacity, 100% rated, Bolt-On, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, PM trip unit with LSIGT - Long-Time, Short-Time, Instantaneous, Ground Fault and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

WLL2D316AP, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1600A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU748 programmer+ WLGFM48 ground fault module, LSG - Long-Time, Short-Time and Ground Fault trip functions and 200A rating plug, Solid State electronic, low voltage insulated case circuit breakers

CFV3200, Challenger, CF Series, type , 3P, 3PH, 200A, 600V, 100kA@480V, current limiting, 40ºC, LI - Long-Time and Instantaneous trip functions, load side lugs, molded case circuit breakers

MDN4083LEA0822NMNG4YNNCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

U13MN64A, Siemens, SENTRON, type , under voltage release, 250VDC, 1 undervoltage trip and 1 auxiliary switch, suitable for use with MD,HMD,MXD,HMXD,CMD,SMD,SHMD,SCMD,ND,HND,NXD,HNXD,CND,SND,SHND,SCND,PD,HPD,PXD,HPXD,SPD,SHDP,CPD,RD,HRD,RXD,HRXD frame molded case circuit breakers

MDN4083LEA0822NMNA4NNHDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0622NMNX2YNACPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0222NMNH2NNKCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

PGP46120U74AE1BC, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with 1A/1B alarm switch, micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0822NMNX4NNLCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SEF36600LSGES1F8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 600A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

KHL362251386, Square D, KHL Series, type , 3P, 3PH, 225A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, complete with 24Vdc shunt trip and 1A/1B aux switch, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

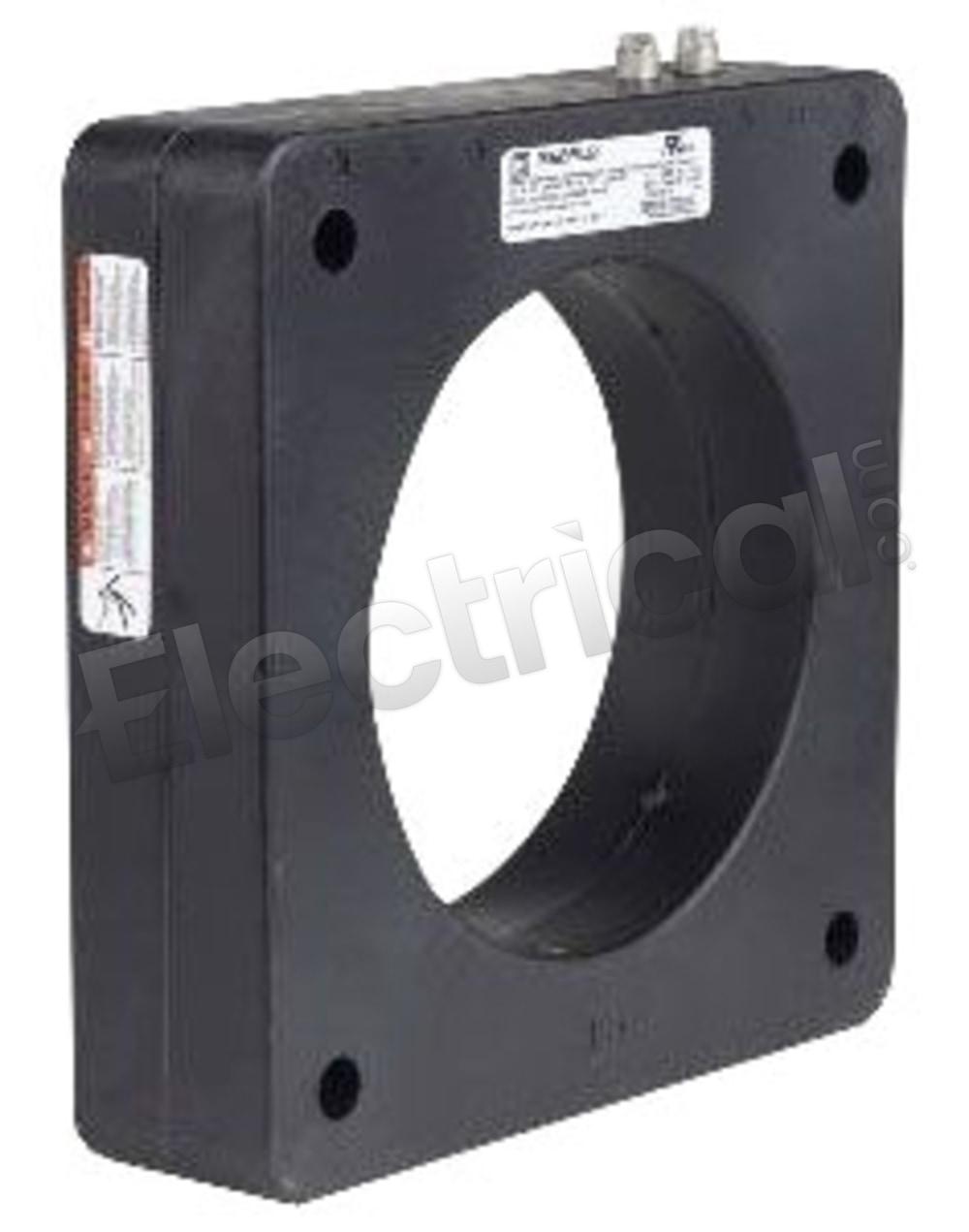

120R162, Square D, Micrologic, torroidal Current Transformers, 600V class, 5 3/4 window size, 1600:5, suitable for Micrologic circuit breakers

RLE-1600A-EO-DO-LSG, Siemens-Allis, RL Series, type , 1600A frame size, electrically operated/Draw-Out, 3P, 3PH, 1200-1600A current sensor rating, 600V, 65kA@480V, originally supplied with StaticTrip III RMS trip device but can also be retrofitted with a modern Solid State electronic trip unit with LSG - Long-Time, Short-Time and Ground Fault trip functions, low voltage power air circuit breakers

SSB3G623T, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 2000A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, current metering, RELT, modbus communication & ZSI features and 1500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

HDA36150U43XBHUNYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with alarm switch low-level, 12 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

QOB210H, Square D, QOB Series, type , 2P, 1PH, 10A, 240V, 10kA@240V, Bolt-On, Thermal Magnetic molded case circuit breakers suitable for QOB Series load centers
