LJL36400CU33X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, 100% rated, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breaker

21-B143QJ6, Hardware Resource Company, direct replacement mounting hardware strap kit for ITE/Siemens FC1,FCII,CDP5,CDP6,SB1,SB2,SB3,S5,P5 panel boards, rated for 225A 240V max, Copper, Dual/Twin Branch mounting style, suitable for use with QJ,QJH,HQJ,HQJH circuit breaker frames, complete with all associated hardware, screws and cover plates

HRL36060U31X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 60A, 600V, 200kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breaker

LDP36400U33X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 18kA@480V, UL listed, standard interrupting capacity, Bolt-On, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip unit with LSI, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breaker

HGA36060U31X, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breaker

HT3050, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 50A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

HT3040, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 40A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

HT3045, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 45A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

HT3080, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 80A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

HE3060U31X, Square D, PowerPact, type HE, 3.2 interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 60A, suitable for H Frame- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Solid State electronic trip units & circuit breakers

SE3CR2K40002, Square D, Schneider Electric, Micrologic, cubicles (cradles), draw-out carriage assembly, rated for 4000A frames, complete with hardware required to mount an SE Series SED, SEHD or SEM draw-out style circuit breaker, comes with draw-out rails, a 96 cord with a secondary connector on the end and terminal blocks for secondary wiring, includes 240VAC cooling fan, and provisions for key interlocking device, suitable for use with SE Series insulated case circuit breakers

HT3015, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 15A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

S132N, Square D, Schneider Electric, Merlin Gerin, Micrologic, field installable Micrologic standard 2.0 trip unit, with LS - Long-Time and Short-Time trip functions, complete with type 'N' rating plug - which means there is no rating plug included with the trip unit, suitable for N, P & R frames - NS,NT,NW,PG,PJ,PK,PL,RG,RJ,RK,RL molded case & insulated case circuit breaker frame types, Solid State electronic trip units & circuit breakers

SE3CR2K3000, Square D, Schneider Electric, Micrologic, cubicles (cradles), draw-out carriage assembly, rated for 3000A frames, complete with hardware required to mount an SE Series SED, SEHD or SEM draw-out style circuit breaker, comes with draw-out rails, a 96 cord with a secondary connector on the end and terminal blocks for secondary wiring, and includes provisions for key interlocking device, suitable for use with SE Series insulated case circuit breakers

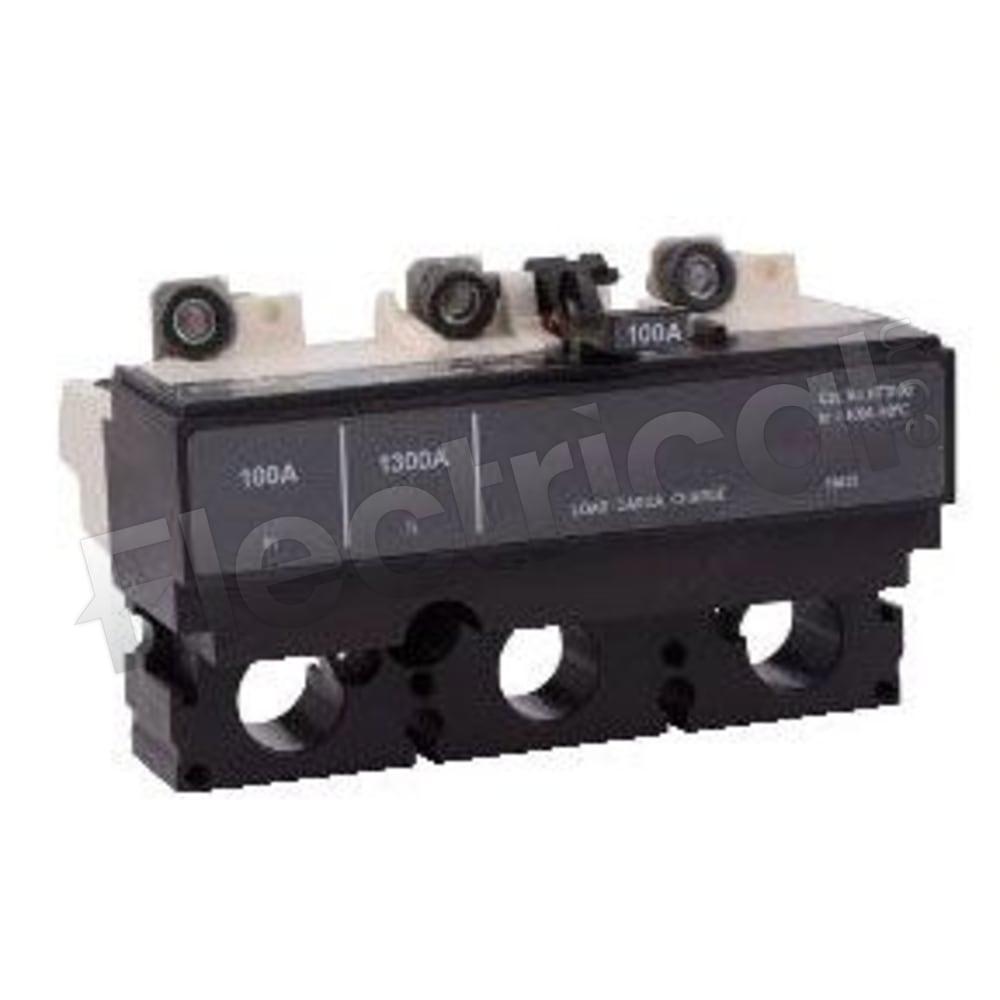

HT3100, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 100A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

S142N, Merlin Gerin, Schneider Electric, Square D, Micrologic, field installable Micrologic standard 2.0A trip unit, complete with type 'N' rating plug - which means there is no rating plug included with the trip unit, complete with ammeter, features LS - Long-Time and Short-Time trip functions, suitable for use with NS,NT,NW,PG,PJ,PK,PL,RG,RJ,RK,RL molded case & insulated case circuit breaker frame types, Solid State electronic trip units & circuit breakers

HT3070, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 70A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

SE3CR2K2000, Square D, Schneider Electric, Micrologic, cubicles (cradles), draw-out carriage assembly, rated for 2000A maximum, complete with hardware required to mount an SE Series SED, SEHD or SEM draw-out style circuit breaker, comes with draw-out rails, a 96 cord with a secondary connector on the end and terminal blocks for secondary wiring, and includes provisions for key interlocking device, suitable for use with SE Series insulated case circuit breakers

HE3100U31X, Square D, PowerPact, type HE, 3.2 interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 100A, suitable for H Frame- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Solid State electronic trip units & circuit breakers

SE3CR2K40004, Schneider Electric, Square D, Micrologic, cubicles (cradles), draw-out carriage assembly, rated for 4000A frames, complete with hardware required to mount an SE Series SED, SEHD or SEM draw-out style circuit breaker, comes with draw-out rails, a 96 cord with a secondary connector on the end and terminal blocks for secondary wiring, includes 600VAC cooling fan, and provisions for key interlocking device, suitable for use with SE Series insulated case circuit breakers

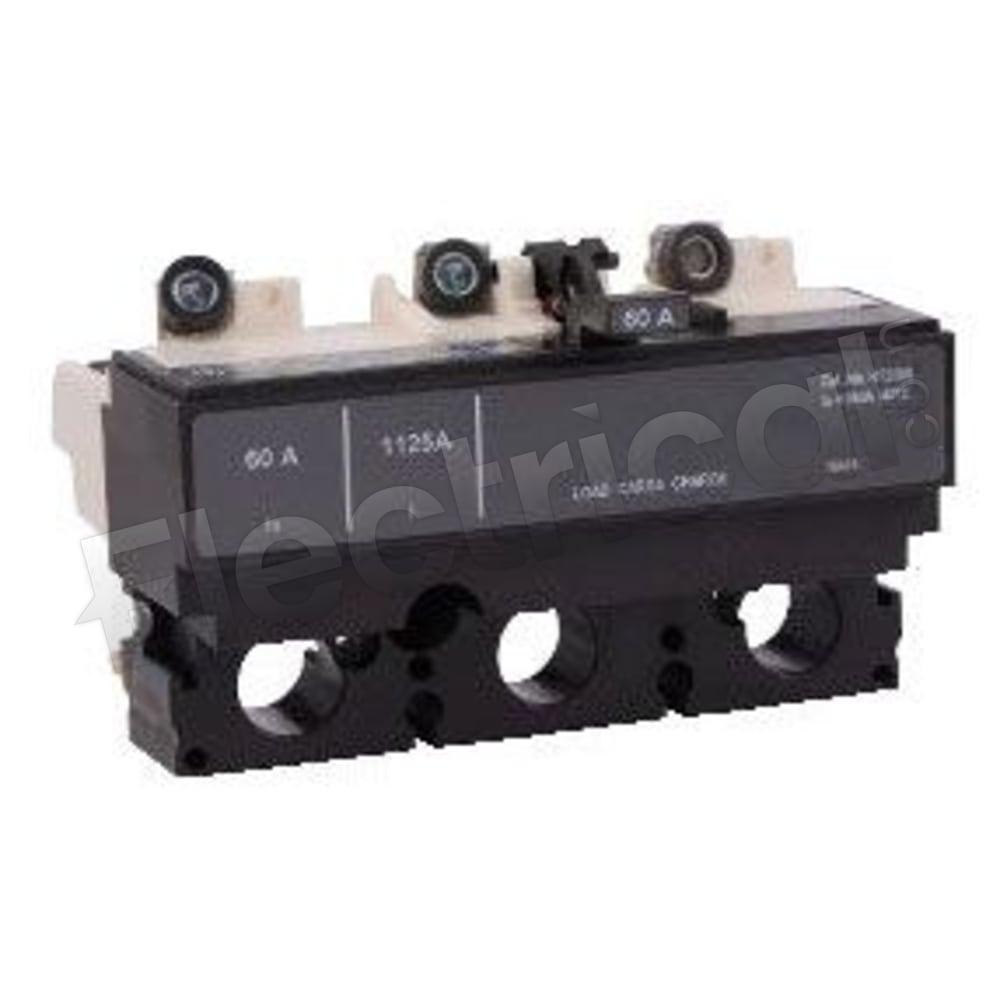

HT3060, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 60A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

UVR125DPK, Cutler Hammer, Series G, type , under voltage release mechanism, 120Vdc, left side mounted, when installed in a circuit breaker the part number suffix is -U6, suitable for use with Series G / Power Defense Frame Size 1 EGB,EGE,EGEDC,EGS,EGSDC,EGH,EGHDC,EGC,JGE,JGEDC,JGS,JGSDC,JGH,JGHDC,JGC,JGU,JGX,LGE,LGEDC,LGS,LGSDC,LGH,LGHDC,LGC,LGU,LGX,E2LME,E2LMZ,PDG frame molded case circuit breakers

HT3125, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 125A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

HT3110, Square D, PowerPact, type HT, interchangeable trip unit with LI, LI - Long Time and Instantaneous trip functions, rated for 110A, suitable for H Frame 150A- HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers
