MDN4083LEA0122NMNG4ENKMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

EELD440350SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 350A, ABL or BCR phase connection, 480V max, Copper, Single Branch mounting style, suitable for use with LD,HLD,LDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

JDC3225VW, Eaton, Cutler Hammer, Westinghouse, Series C, type , 3P, 3PH, 225A, 600V, 100kA@480V, current limiting, 50ºC, Bolt-On, suitable for reverse fed applications, complete with non-interchangeable LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

MDN4083LEA0822NMNG2NNRMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

WLL2D325GH, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 2500A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLLCD48 LCD display + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 400A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SHD1G364N, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 800A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, modbus communication & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0522NMNC2NNYCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

PKD36100U64AE1AA, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 50kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with 1A/1B auxiliary switch, micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

PDF33F0125P5DN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 125A, 25kA@480V, 100% UL, Bolt-On, no lug terminals, complete with PXR25 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HDA36100U44XABSV, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 2A/2B aux switch, 60 VDC shunt trip, molded case circuit breakers

PDG32NH400E4CJ, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 400A, High Override, 85kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions and CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

JD23B200, Siemens, Sentron Series, type , 3P, 3PH, 200A, 240V, 65kA@240V, standard interrupting capacity, 40ºC, Bolt-On, complete with interchangeable trip unit and load side lug terminals, Thermal Magnetic, molded case circuit breakers

MPA41F08W0011, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50H trip unit, 24/30V dc shunt trip and 24/30V dc undervoltage trip, 4P, 3PH, 800A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers

WLL2D325MA, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 2500A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU725 programmer, LSI - Long-Time, Short-Time and Instantaneous trip functions and 700A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0722NMNG4ECKCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, 4A/4B auxiliary switch, latch check switch for external wiring, load side lug terminals & Kirk keylock Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HJL36060TU33X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 60A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, complete with HE3060U33X, micrologic standard interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0722NMNHNYCNCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HDL36040CABSHYP, Square D, PowerPact, type , 3P, 3PH, 40A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, 100% rated, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0422NMNK4EHNNSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & 4A/4B auxiliary switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SHB4G6Z2M, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 2500A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering & ZSI features and 750A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

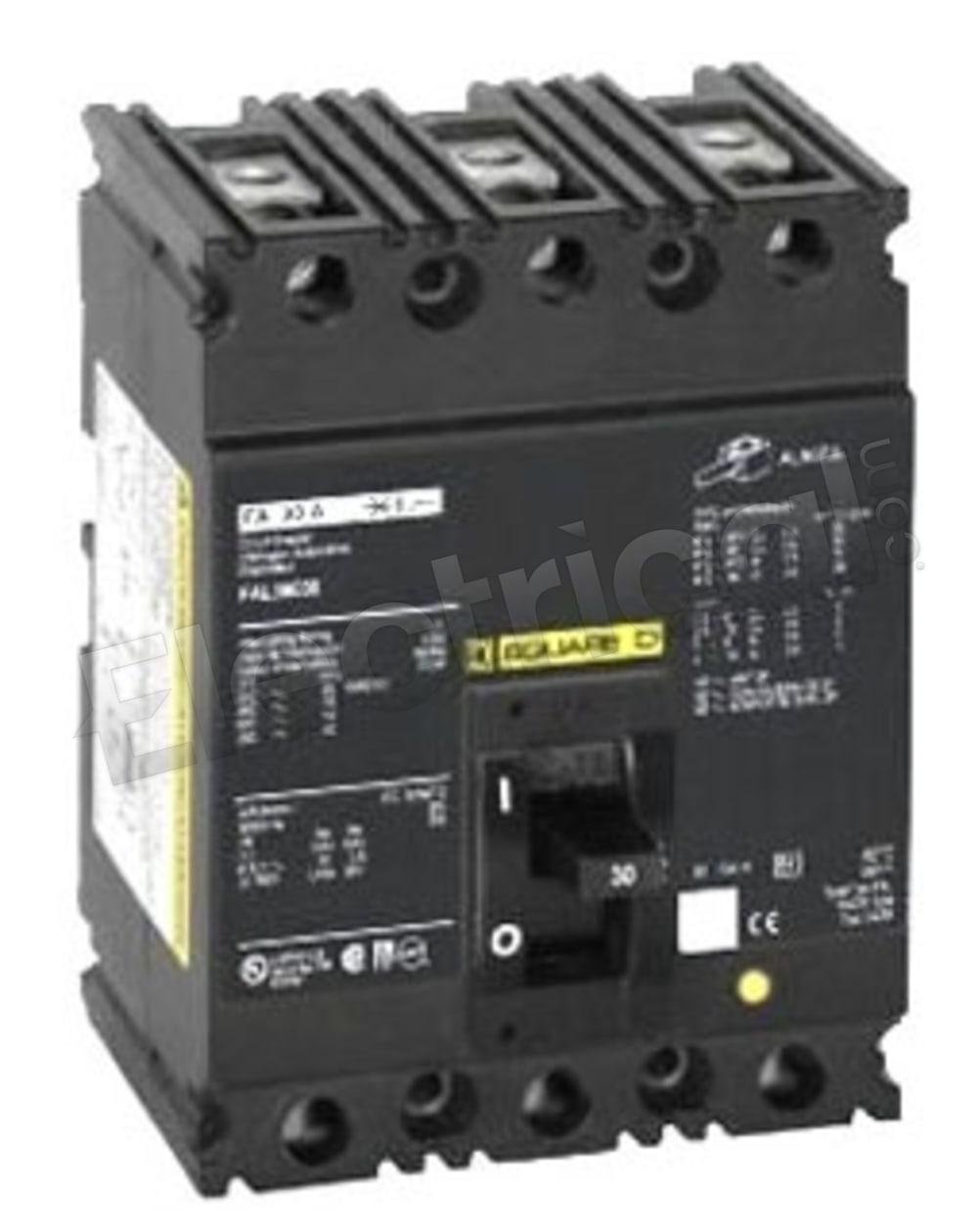

FAL320301021, Square D, FAL Series, type , 3P, 3PH, 30A, 240V, 10kA@240V, standard interrupting capacity, Feed-Thru, complete with 120/240Vac shunt trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

HLA36150U31XABBKUP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, low-level, 48 VDC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0522NMNE2NHNCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

LB3090T, Westinghouse, AB DE-ION, type , interchangeable trip unit with LI - Long-Time and Instantaneous trip functions, rated for 90A, suitable for 400A- LB,HLB standard, Saf-T-Vue or MARK 75 molded case circuit breaker frame types, Thermal Magnetic trip units and programmers & circuit breakers; these trip units are obsolete, however we do still stock them
