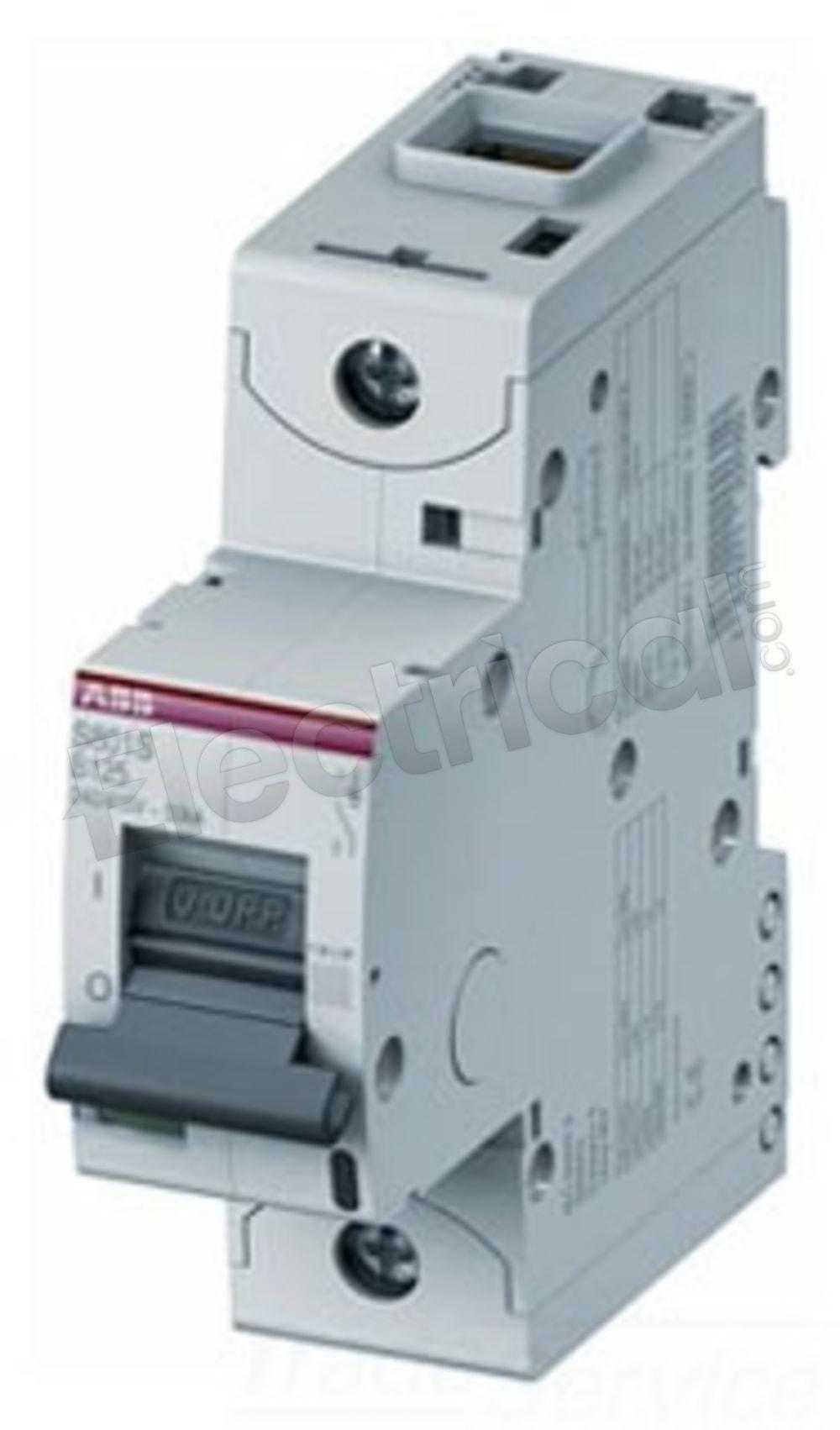

S801S-K100, ABB, S800 Series, type , K trip curve, IEC rated, 1P, 1PH, 100A, 690V, 50kA@690V, current limiting, DIN rail mounting, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

HGA260202ABBESKYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 24 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA36150U43XBCURYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with alarm switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

NFNLE36100, Schneider Electric, Merlin Gerin, Square D, Compact, type , 3P with 3P trip, 3PH, 100A, IEC rated, 660/690V, 25kA@415V, standard interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

MP16-3P-800A-EO-DO-LS, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 1600A frame with 1600A sensor rating with 800A rating plug, 3P, 3PH, 600V, 50kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

HGA260205ABBEUK, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 24 VAC under voltage release (UVR), molded case circuit breakers

HJA36020AABEUR, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 20A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, 125 VDC under voltage release (UVR), molded case circuit breakers

KCDPJD3225 circuit breaker retrofit kit for Cutler Hammer CDP bolt-on style panelboards, rated for 225A 600V max, Copper, Dual/Twin Branch mounting style, includes 1 JD circuit breaker, connectors, and hardware to branch mount on CDP,WF,Pow-R-Line panelboards and switchboards

PLP34100, Square D, PowerPact, type , 3P, 3PH, 1000A, 480V, 100kA@480V, UL listed, extra high interrupting capacity, Bolt-On, complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

PDG23P0060P3ML, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 60A, 100kA@480V, Bolt-On, load side lug terminals, complete with Xpert Release PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays and modbus, Solid State electronic, molded case circuit breakers; globally rated

KC34125CBA, Square D, I-Line, type , 3P, 3PH, 125A, 480V, 65kA@480V, extra high interrupting capacity, 40°C, I-Line Style Plug-In, CBA phase connection/connectors fed in opposide configuration, Thermal Magnetic, molded case circuit breakers

HJA260204SVYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 20A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 60 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

XT4HU4250UFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 250A, 600V, 25kA@600V, Ekip Hi-Touch LSIG, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

LV429780ATS3, Schneider Electric, Compact NSX, type , 4P, 3PH, 100A, 690V, 36kA@415V, Bolt-On, complete with NSX100F frame, type UA, 220Vac controller, automatic transfer switch and 3 pole, 100A Micrologic 2.2 trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

ME36300LI, Square D, I-Line, type , 3P, 3PH, 300A, 600V, 65kA@480V, high interrupting capacity, I-Line Style Plug-In, 100% rated, complete with full function Micrologic non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and ARP075 installed rating plug, Solid State electronic, molded case circuit breakers

REF3L030L, Miami Breaker, REF Series, type , 3P, 3PH, 30A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only and line & load side lug terminals, low magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers; these breakers are obsolete, however we still stock them

HDA260404AEBHSHYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 40A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SGLC3604L3R2 General Electric Spectra Series, type , 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI, LSI - Long-Time, Short-Time and Instantaneous and RELT, reduced energy let-through trip functions and basic metering and modbus communication features, Solid State electronic, molded case circuit breakers

HDA36090AEBHUJYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 90A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 525/600 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDL36040CAFBCSR, Square D, PowerPact, type , 3P, 3PH, 40A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, 100% rated, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch, 125 VDC shunt trip, molded case circuit breakers

HLA36020UA, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 20A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 120 VAC under voltage release (UVR), molded case circuit breakers

HE2L080L, ITE, Siemens, HE Series, type , 2P, 1PH, 80A, 480V, 25kA@480V, high interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only and line & load side lug terminals, low magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

HDA36050AABEUK, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 50A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, 24 VAC under voltage release (UVR), molded case circuit breakers

HDA260901AFBHUK, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 24 VAC under voltage release (UVR), molded case circuit breakers
