HDA36100AABCSVYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 60 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

PGL36060CU43AAB, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru, 100% rated, complete with 2A/2B auxiliary switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

HLA36150AEBKSN, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 150A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 12 VDC shunt trip, molded case circuit breakers

HJA36040ABBKSLYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 40A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, low-level, 48 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HGL26060ABBCSN, Square D, PowerPact, type , 2P, 1PH, 60A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch, 12 VDC shunt trip, molded case circuit breakers

HDL36020AFBHUK, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 24 VAC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0122RMNN2YNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, factory installed 208-250Vac/dc shunt trip (ST), 2A/2B auxiliary switch, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

SHD1G2W1E, General Electric, Power Break II, type , 3P, 3PH, 600V, 400A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 800A frame rating, complete with Entelliguard trip, LI - Long-Time and Instantaneous trip functions, full metering, RELT, modbus communication, relays & ZSI features and 250A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

FAZ-D50/3N, Eaton, FAZ Series, type , UL listed, DIN rail mounted miniature circuit breaker, D curve, 3PH, 3P + neutral, 277/480V, 50A, 10kA@277/480V, Feed-Thru, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breaker

1284C68G04, Cutler Hammer, SELTRONIC mining service circuit breakers, type , 3P, 3PH, 150A, 1000V, mining duty rated, 14kA@1000V, high interrupting capacity, Bolt-On, magnetic trip range 150-1000A, with 120V UVR with remote tripping leads included, Thermal Magnetic, molded case circuit breakers

SEHF36300LSET3, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

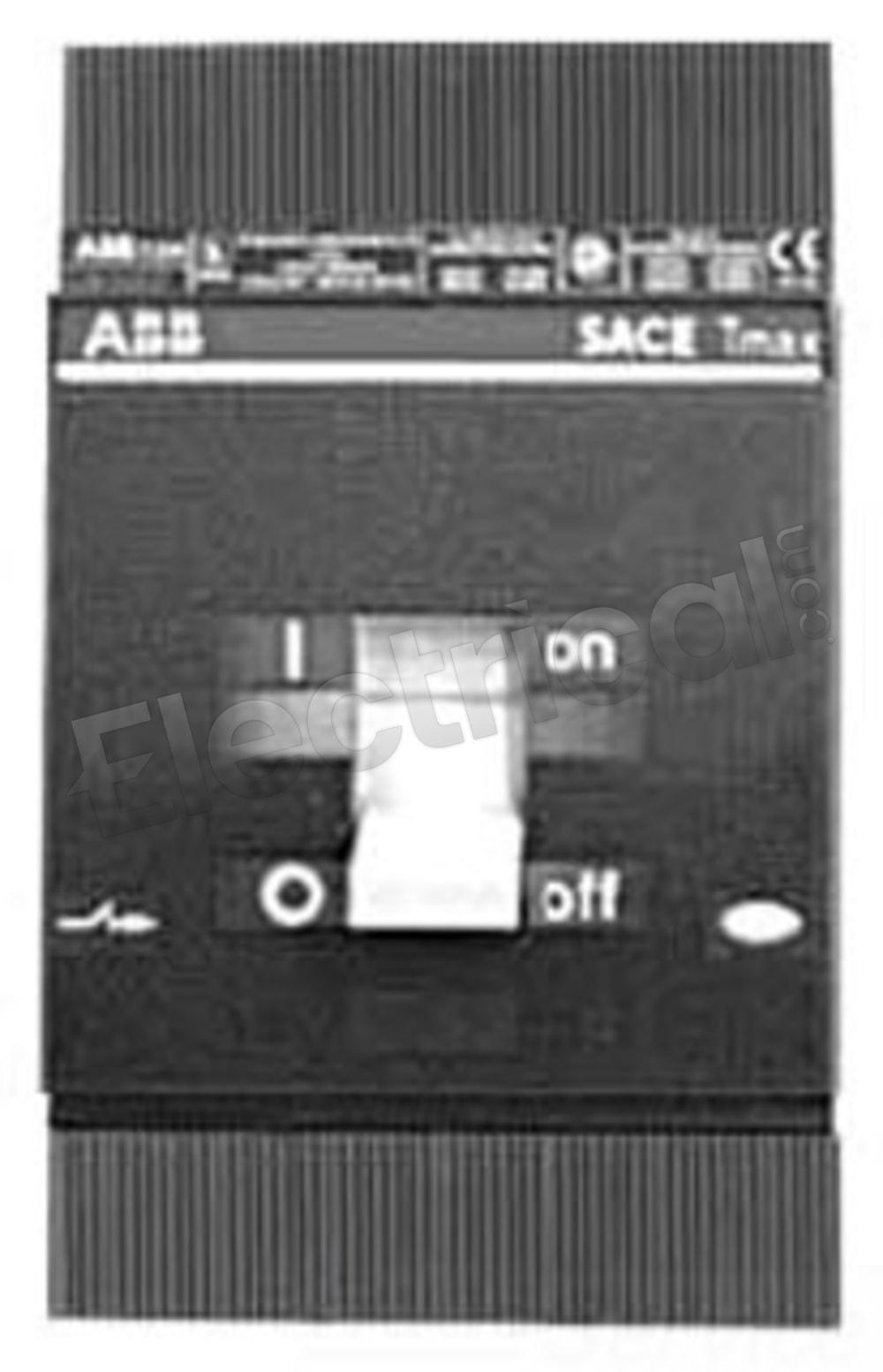

TS3H150TW, ABB, SACE Tmax, type , 3P, 3PH, 150A, 600V, 50kA@480V, 65kA@415V, Bolt-On, suitable for reverse feed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers

XT2NQ4060FFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 60A, 600V, 18kA@600V, Ekip LSI (Electronic, LSI protection), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No

1366D21G18, Westinghouse, Classic Mining Service, type , 3P, 3PH, 100A, 600V, 14kA@600V, standard interrupting capacity, Bolt-On, I - Instantaneous protection only, magnetic range 150-480A, Magnetic Only, mining service molded case circuit breakers

SEF36600LSIGES5E4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 600A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SHD5G863U, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, full metering, modbus communication & ZSI features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

DA3400WK, Cutler Hammer, Westinghouse, AB DE-ION, type , 3P, 3PH, 400A, 240V, 25kA@240V, Bolt-On, lugs not included, NA - No Overcurrent Protection, high Non-Automatic switch, molded case circuit breakers; these breakers are obsolete, however we do still stock them

3VA5211-5ED31-0AA0, Siemens, SENTRON 3VA, type , 3PH, 3P, 600V, 110A, medium breaking capacity, 35kA@480V, Feed-Thru attachment to DIN rail, complete with TM210 FTFM trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

LA3175T, Westinghouse, LA Series, type , interchangeable trip unit with LI - Long-Time and Instantaneous trip functions, rated for 175A, suitable for 400A- LA,HLA standard, Saf-T-Vue or MARK 75 molded case circuit breaker frame types, Thermal Magnetic trip units and programmers & circuit breakers; these trip units are obsolete, however we do still stock them

PJF36060CU33A, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HGA36100U43XAFBKUK, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VAC under voltage release (UVR), molded case circuit breakers

PDG33KH250VFAJ, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 3PH, 3P, 600V, 250A high override, 50kA@480V, Feed-Thru, line & load side lug terminals, complete with LI - Long-Time and Instantaneous trip functions, 50ºC Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications; non-UL listed

PDG22G0125TFFJ, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 125A, 35kA@480V, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HGA36100AFBK, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, molded case circuit breakers
