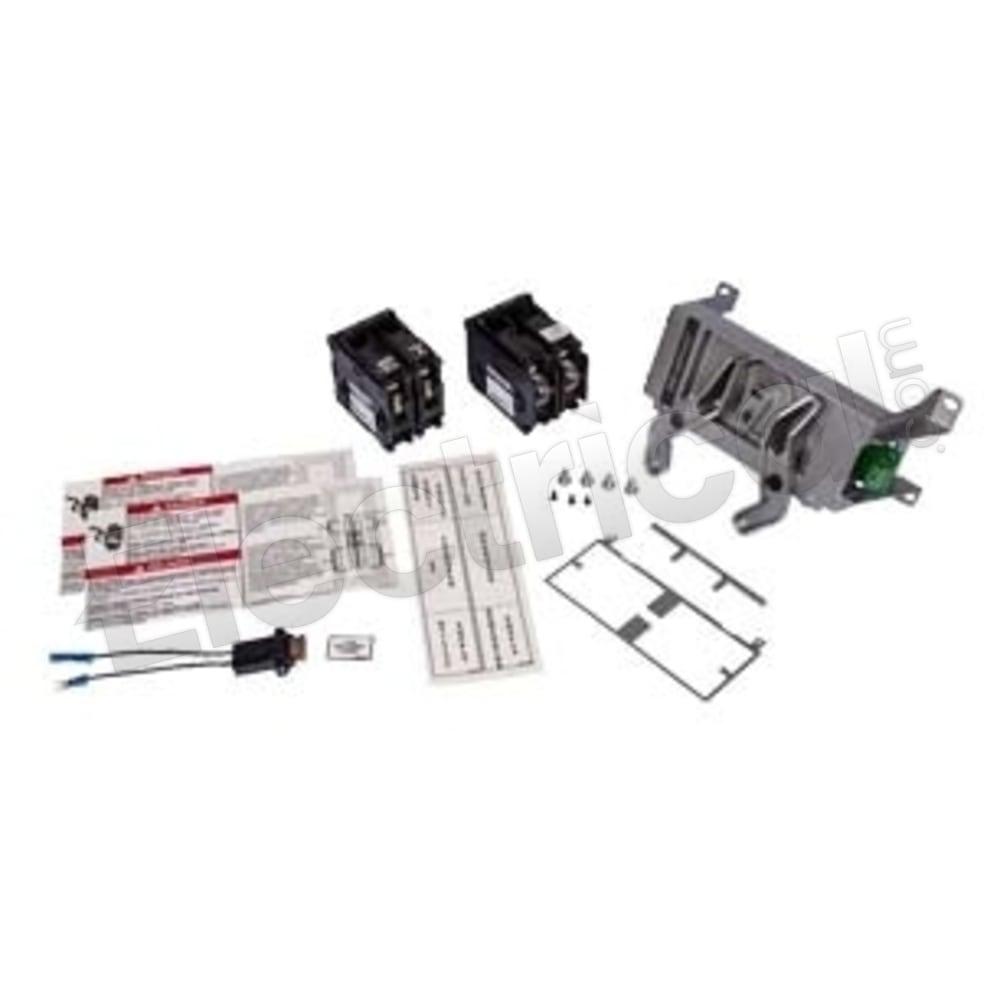

ECSBPK04, Murray Corporation, standby Interlocks, suitable for locking Ultimate or Rock Solid style main breakers (125A or less) to QP,MP-T circuit breakers

SHF5G8B1U, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 150kA@480V, high interrupting capacity, Bolt-On, front connected, 3000A frame rating, complete with Entelliguard trip, LI - Long-Time and Instantaneous trip functions, current metering, RELT & modbus communication features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

BQD39000S01, Siemens, BQD Series, type , 3P, 3PH, 90A, 277/480V, 14kA@480V, standard interrupting capacity, 40°C, Bolt-On, 120Vac shunt trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0122NMNXNNNKDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SSB3G6F2N, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 2000A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering & modbus communication features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MPA31F0801231, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, 24/30V dc motor operator, 48V dc closing coil, 110/130V dc/ac shunt trip and 48V dc undervoltage trip, 3P, 3PH, 800A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

PDG32G0125E3WK, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 125A, 35kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

B1H2C15R, Noark Electric, UL 489, type , 1PH, 2P, 480/277V, 15A, 10kA@480V, Feed-Thru ring tongue terminals, C trip curve, Thermal Magnetic, din rail mounted molded case circuit breakers

MDN4083LEA0422NMNH4NNNDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

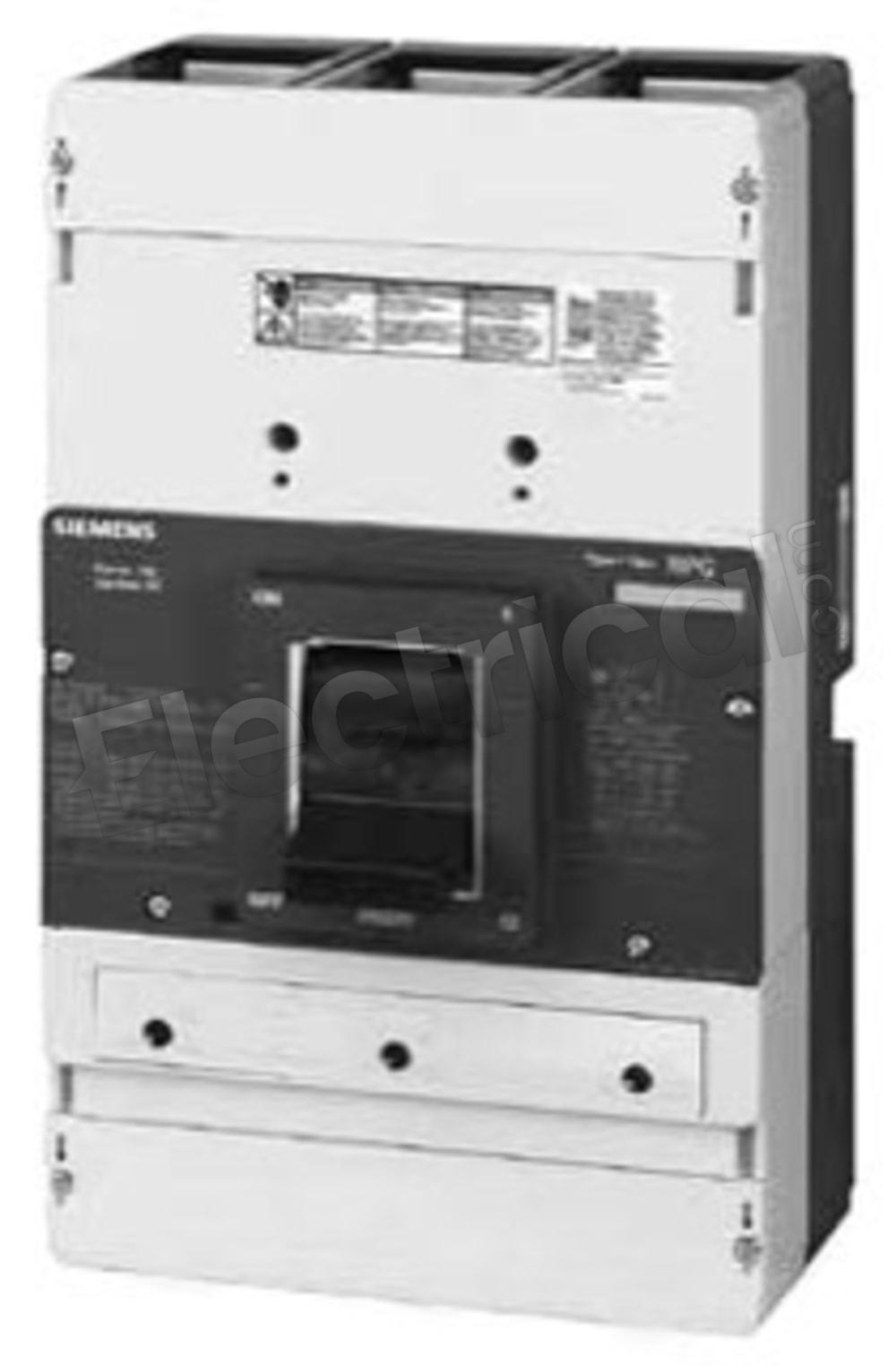

HPY3G120, Siemens, VL Series, type , 3P, 3PH, 1200A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, 100% rated, complete with non-interchangeable trip with LCD display, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

PDG24K0060D3YL, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 60A, 50kA@480V, Bolt-On, load side lug terminals, complete with Xpert Release PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays, modbus, CAM and ZSI, Solid State electronic, molded case circuit breakers; globally rated

SSD1G394K, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 800A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, modbus communication, relays & ZSI features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0622NMNX4NNKNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0222NMNFNYNLCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch, Castell key interlock & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

3VA6210-7HM41-2AA0, Siemens, SENTRON 3VA, type , 100% rated, 3PH, 4P, 600V, 100A, very high breaking capacity, 100kA@480V, Feed-Thru, fixed mounted, complete with ETU330 trip unit, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

SGPB36CC1100C, General Electric, Spectra Series, type , 3P, 3PH, 100A, 600V, 100kA@480V, very very high interrupting capacity, current limiting, Bolt-On, complete with SRPG150B100 rating plug, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, PM trip unit with LIGT - Long-Time, Instantaneous, Ground Fault and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

EEMDL560500TB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 500A, BCL or ABR phase connection, 600V max, Copper, Dual/Twin Branch mounting style, suitable for use with MDL,HMDL circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

PDG33G0400E4NL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, 35kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions , Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

LG3600WS01, Westinghouse, Cutler Hammer, Eaton, Series G, type , 3P, 3PH, 600A, 600V, 14kA@480V, standard interrupting capacity, Bolt-On, suitable for reverse feed applications, magnetic pickup range 500-2500, complete with left-pole mounted 12-24Vac/dc, 50/60Hz left side mount shunt trip, I - Instantaneous trip functions, lugs not included, Solid State electronic, engine generator molded case circuit breakers

MDN4083LEA0322NMNHNYNHDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

SGHC3601L4V6 General Electric Spectra Series, type , 3P, 3PH, 150A, 600V, 35kA@480V, standard interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and RELT, reduced energy let-through & neutral protection trip functions and advanced metering, modbus & waveform capture communication features, Solid State electronic, molded case circuit breakers

PDD22G0015TFFK, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 240V, 15A, 65kA@240V, Bolt-On, line terminals only, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, UL, certifications

MDN4083LEA0422NMNF4NNCDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

CFV3050L, Challenger, CFV Series, type , 3P, 3PH, 50A, 600V, 100kA@480V, current limiting, 40°C, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete, however we still stock them
