MDN4083LEA0722NMNG4NHNDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HLA36100BEUH, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, 380/480 VAC under voltage release (UVR), molded case circuit breakers

MPA120AFCHH, Murray Corporation, MP Series, type , arc fault combination, 1P, 1PH, 20A, 120V, 65kA@120V, very high interrupting capacity, 40°C, Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

MDN4083LEA0122CMN2NNNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, factory installed 24Vdc shunt trip (ST), 208-250Vac second shunt trip & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

PDG33M0400P5MJ, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, 65kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR25 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

JD3090VW, Cutler Hammer, Eaton, Westinghouse, Series C, type , 3P, 3PH, 90A, 600V, 35kA@480V, standard interrupting capacity, 50ºC, Bolt-On, complete with interchangeable, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

LV430643MT1 Schneider Electric Compact NSX, type , 4P, 3PH, 160A, 690V, 36kA@415V, Bolt-On, complete with NSX160F frame and 3 pole, 220Vac, TM80D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MPA32F32V3130, General Electric, M-PACT, type , frame size 2, manually operated, 5 N.O- 3 N.C. Auxiliary switches, Mpro-50L trip unit, 110/130V dc/ac motor operator, 24/30V dc closing coil, 110/130V dc/ac shunt trip, 3P, 3PH, 3200A, 690V, 50kA@415V, fixed/Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers

HGK261102, Schneider Electric, Square D, PowerPact, type , 2P, A & C phase connection, 1PH, 110A, 600V, 35kA@480V, UL listed, high interrupting capacity, reverse I-Line Style Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

PDG53M0800P3MM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 800A, 65kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated

SEHD361800LIES1, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHF36800ES5, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 800A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDF34F0250P3YK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 250A, 25kA@480V, 100% UL, Bolt-On, line side lug terminals, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with Modbus RTU, CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PJL36120CU43AAA, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with 1A/1B auxiliary switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

QBGFEP2050, Cutler Hammer, Eaton, Quicklag, type , 2P, 1PH, 50A, 240V, 10kA@240V, standard interrupting capacity, 40ºC, Bolt-On, complete with ground fault equipment protection, LI - Long-Time and Instantaneous trip functions & load side lug terminals, Thermal Magnetic, molded case circuit breakers

JGH425036GC, Cutler Hammer, Series G, type , 4P, 3PH, 250A, 600V, 65kA@480V, 100% rated, high interrupting capacity, Feed-Thru, complete breaker with 310+ electronic, non-interchangeable trip unit and line & load side lug terminals, Solid State, molded case circuit breakers

PJF36100CU74BE1, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HGA36150U31XAABH, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, alarm switch low-level, molded case circuit breakers

MDN4083LEA0622NMNJ4NNKNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HJL36100M73AEBKSLYP, Square D, PowerPact, type , 3P, 3PH, 100A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 180-1040A, Magnetic Only, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 48 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

G101C02, General Electric, Redline, Series, 674856, C tripping, 1P, 1PH, 2A, 415V, 10kA@415V, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

HGA260205AFUKYP, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, 24 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0422NMNRNYNYCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

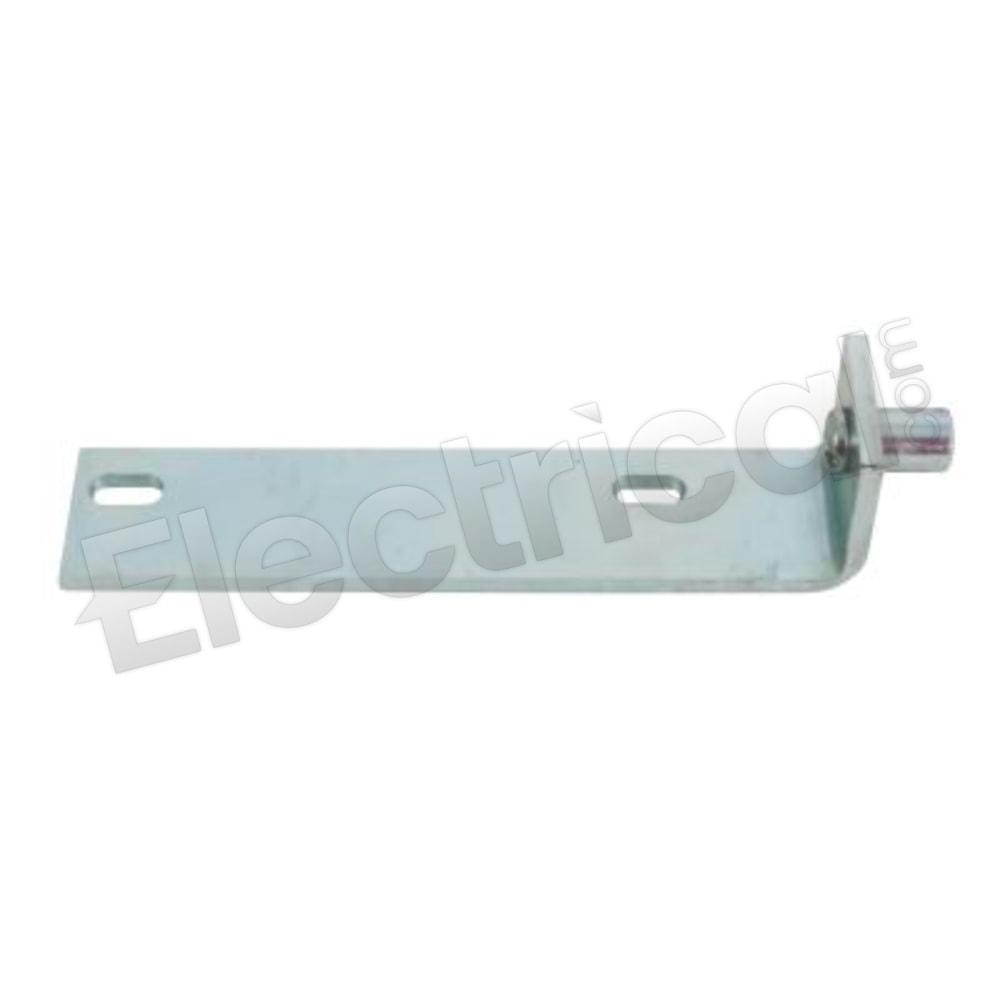

102030-001/PB1AIB, BRAH Electric, Power Break I, part and accessory, accessory Brackets for interlock, suitable for Power Break I insulated case circuit breakers
