LV429687ATS1, Schneider Electric, Compact, type , 4P, 3PH, 100A, 690V, 70kA@415V, Bolt-On, complete with NSX100H frame, type BA, 220Vac controller, automatic transfer switch and 3 pole TM16D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0422NMNFNYNKCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

ENT3202NN3H2, General Electric, EntellEon, type , low-voltage panel board interior, UL listed, 3-phase, 3-wire, main 250A rated, 600VAC, 32X, clean bus, Copper bus material, Main Breaker style; to be used with SK, SG, SF, SE main circuit breakers

SSF2G4X9H, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, current metering features and 400A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

WLS1F320PD, Siemens, WL Series, type , frame size I, fixed mount, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU745 programmer + WLLCD48 LCD display, LSI - Long-Time, Short-Time and Instantaneous trip functions and 1000A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0522NMNG4ENLNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, operations counter & Castell key interlock, Solid State, low voltage power insulated case circuit breakers

NFG3U100, Siemens, VL Series, type , FG Frame, 3P, 3PH, 100A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Digital Solid State Electronic molded case circuit breakers

MDN4083LEA0122NLCRNYNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, electrically operated with 24Vdc motor operator and 24Vdc spring release device (SRD), complete with factory installed 208-240Vac UVR, mechanical trip indicator & OTS switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Solid State, low voltage power insulated case circuit breakers

SHF2G5N4N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, current metering, modbus communication & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

FW4020L, Eaton, Westinghouse, Cutler Hammer, Series C, type , 4P with neutral, 3PH, 20A, 690V, 40kA@415V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable thermal/fixed magnetic, Thermal Magnetic, molded case circuit breakers

WLS2F320CH, Siemens, WL Series, type , frame size II, fixed mount, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU745 programmer + WLLCD48 LCD display + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 250A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PDG32FH400E2MN, Cutler Hammer, Eaton, Power Defense, type , 600A frame, 1PH, 2P, 600V, 400A, high override, 25kA@480V, Bolt-On, no lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0822NMNJNYNYMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

TEYF390ST12, General Electric, Q-Line, type , 3P, 3PH, 90A, 277/480V, 14kA@480V, standard interrupting capacity, 40°C, Bolt-On, with factory installed 120-277Vac shunt trip, Thermal Magnetic molded case circuit breakers

NEB1B110V, Siemens, NEB Series, type , bulk, 1P, 1PH, 110A, 277V, 35kA@277V, standard interrupting, 40°C, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

SGLL3604L4T8 General Electric Spectra Series, type , 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and ZSI, zone selective interlocking trip functions and advanced metering, modbus, waveform capture & protective relays communication features, Solid State electronic, molded case circuit breakers

MDN4083LEA0322NMNG2NNAMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SSD4G6W3R, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 2500A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communcation, relays & ZSI features and 1200A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0222NMNK4ENKDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

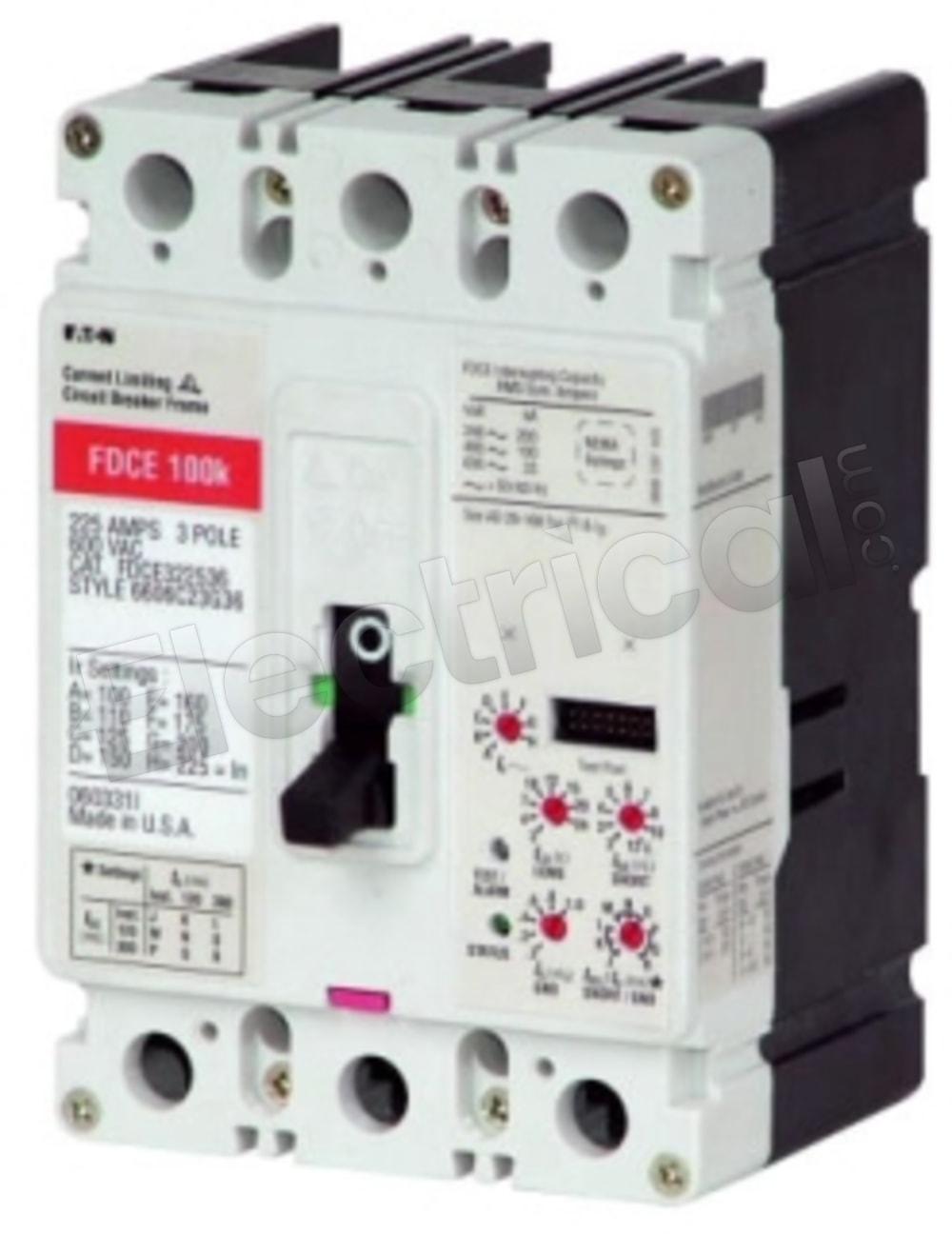

FDCE322533L, Cutler Hammer, Eaton, Westinghouse, Series C, type , 3P, 3PH, 225A, 480V, 100kA@480V, very high interrupting capacity, current limiting, Feed-Thru, complete with LS - Long-Time and Short-Time trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

WLS1D312JN, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU748 programmer + WLLCD48 LCD display + WLGFA48 ground fault module, LSGA - Long-Time, Short-Time and Ground Fault Alarm trip functions and 500A rating plug, Solid State electronic, low voltage insulated case circuit breakers

P1E42ML250CTF, Siemens, Type P1 panel board, 3-phase, 4-wire, 250A, 277/480V, Main Lug Only, 42 1-pole circuits, 44" box height, top feed, flush mounted, Copper bus

NGS3080KSEVH09, Cutler Hammer, Series G, type , 3P, 3PH, 800A, 690V, 20kA@690V, for AC use only, standard interrupting capacity, for Naval applications 50°C, not UL listed, Bolt-On, Non-Automatic molded case switch, NA - No Overcurrent Protection, molded case circuit breakers

FMKT225T, Siemens, SENTRON Mining, type , trip units and programmers, 3P, interchangeable trip, LI - Long-Time and Instantaneous trip functions, rated for 225A, magnetic range 1100-2500A, suitable for Thermal Magnetic FM6B,FMKB mining service molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers
