PDF63N1600P2DM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 1600A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays, modbus & CAM option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

SGPC3601L7P2 General Electric Spectra Series, type , 3P, 3PH, 150A, 600V, 100kA@480V, extra high interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI-CP, LSI - Long-Time, Short-Time and Instantaneous and ZSI, zone selective interlocking & RELT, reduced energy let-through and basic metering communication features, Solid State electronic, molded case circuit breakers

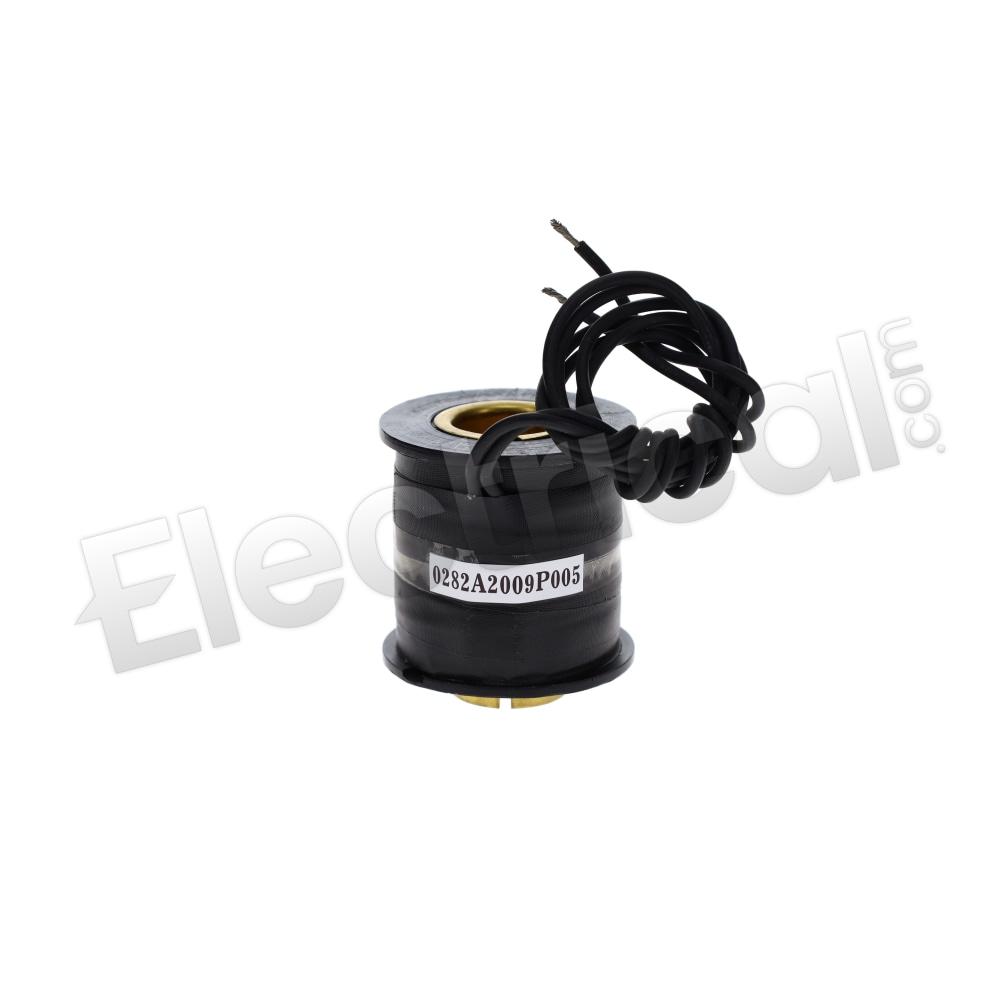

0282A2009P005, General Electric, PowerVac, closing coil, breaker close voltage 125DC, 32A, control volt box range -140V, has fast bus transfer, suitable for use with POWERVAC medium voltage vacuum circuit breaker with ML-17 mechanism

EH3L045, Siemens, ITE, EH Series, type , 3P, 3PH, 45A, 480V, 14kA@480V, standard interrupting capacity, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, low magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

HJXD63M400, Siemens, Sentron Series, type , 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, 50ºC, Bolt-On, UL listed for reverse fed applications, complete with non-interchangeable trip unit, lugs not included, Thermal Magnetic, molded case circuit breakers

MDS6163WEA12MUNMNN2NNANAX, Cutler Hammer, Eaton, Magnum DS Type , Standard frame, 65kA@635V interrupting rating, 1600A, 3-Pole, Drawout mounting, 1200A rating plug, Non-DSL current limiter, 520M LSI (120 Vac) trip unit, No shunt trip, Manual operated motor operator, No SRD, No, 2A/2B auxiliary switch, No padlock, Counter - no lock key lock, low voltage power insulated case circuit breaker

PDG32F0250P2DN, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 250A, 25kA@480V, Bolt-On, no lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

LGX4500FAG, Cutler Hammer, Series G, type , 4P, 3PH, 500A, 600V, 200kA@480V, current limiting, 40ºC, Feed-Thru, complete with non-interchangeable trip unit and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

XT4NQ3090AFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 90A, 600V, 18kA@600V, Thermal Magnetic Fixed (TMF), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

LV429018TM80 Schneider Electric Compact NSX, type , 3P, 3PH, 100A, 690V, 100kA@415V, Bolt-On, complete with NSX100S frame and 3 pole TM80D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0622NMNH4NNCDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SHF1G3N8L, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 800A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, current metering, modbus communication & ZSI features and 700A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0122RNAJ4ENNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, factory installed 208-250Vac shunt trip (ST), 480Vac UVR & 4A/4B auxiliary switch, electrically operated with factory installed 110-120Vac motor operator & spring release device (SRD), Solid State, low voltage power insulated case circuit breakers

T2HQ020TW, ABB, SACE Tmax, type , 3P, 3PH, 20A, 480V, 65kA@480V, 70kA@415V, 100% rated, Bolt-On, suitable for reverse feed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers

XT2LQ3030AFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 30A, 600V, 35kA@600V, Thermal Magnetic Fixed (TMF), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No

PEDN3ATEM0125, General Electric, GuardEon, type , 3PH, 3P, 600V, 38-125A, 65kA@480V, front connection/Feed-Thru, toggle mechanism, complete with PremEon G advanced metering interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with switchable GF, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

E6L-A40-3P-4000A-BO-MO-LI, ABB, EMax, type , 3P, 3PH, 4000A frame, 4000A rating plug, 600V, 150kA@480V, fixed/Bolt-On, manually operated, Solid State electronic with LI - Long-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

XT7SU410DUFF000XXX, ABB, SACE Tmax XT, type , 3PH, 4P, 600V, 1000A, 50kA@480V, Bolt-On, front terminals, complete with Ekip Hi-Touch trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Ekip Hi-Touch LSIG, molded case circuit breakers; 1SDA103164R1 global reference

WLS2D308FU, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFM76 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 350A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SHB2G5W2R, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 1600A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering, RELT, modbus communication, relays & ZSI features and 1200A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0322NMNX2EHNMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & 2A/2B auxiliary switch, Solid State, low voltage power insulated case circuit breakers

WLS1F320TN, Siemens, WL Series, type , frame size I, fixed mount, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU748 programmer + WLLCD48 LCD display + WLGFA48 ground fault module, LSGA - Long-Time, Short-Time and Ground Fault Alarm trip functions and 1600A rating plug, Solid State electronic, low voltage insulated case circuit breakers

JXD23M225, Siemens, Sentron Series, type , 3P, 3PH, 225A, 240V, 65kA@240V, standard interrupting capacity, 50ºC, Bolt-On, complete with non-interchangeable trip unit, lugs not included, Thermal Magnetic, molded case circuit breakers

PDG52N1200P3YM, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 1200A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with relays, modbus, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated
