HGA260702AEBHSNYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 70A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 12 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHF36300LSIGES6E8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260601AAUHYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 60A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, 380/480 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJA260304BCUJYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 30A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch, 525/600 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SED36300LSGES2A4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260401AABCUHYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 40A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

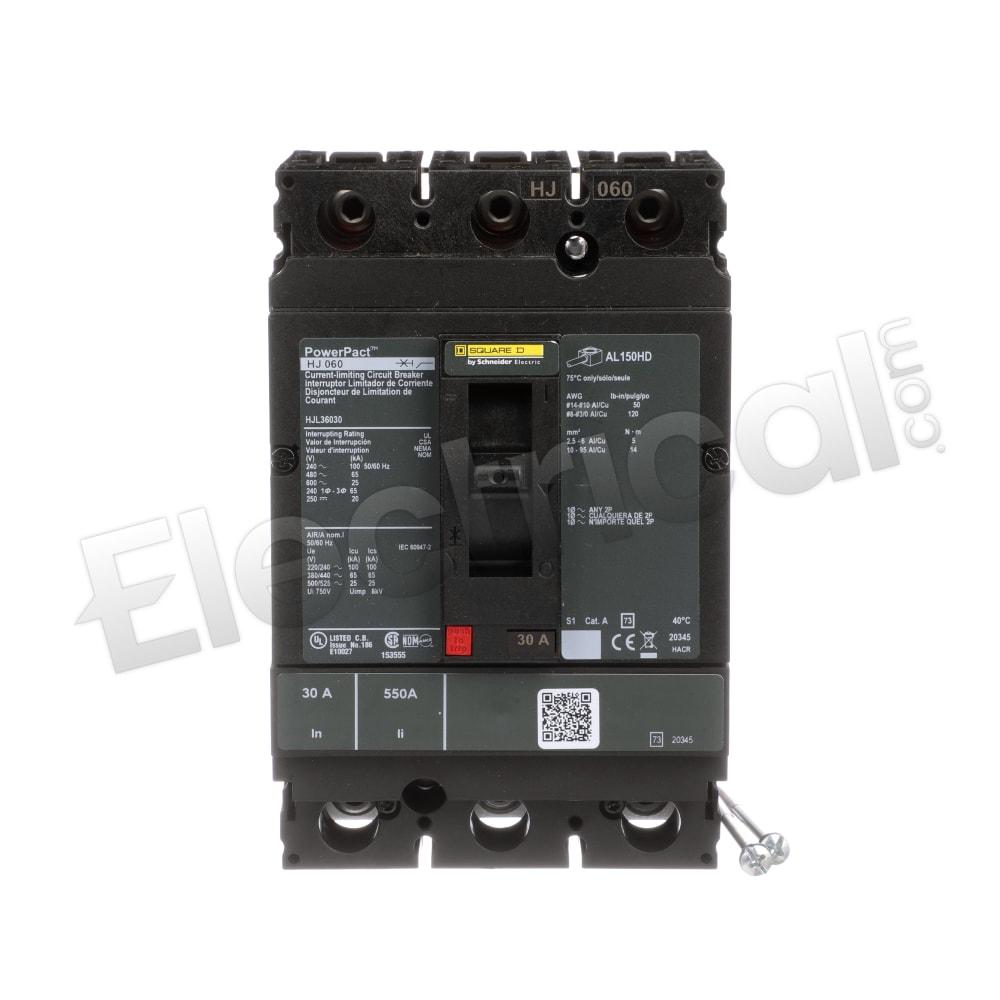

HJL36030AEBHSNYP, Square D, PowerPact, type , 3P, 3PH, 30A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 12 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDL36060U31XAFUA, Square D, PowerPact, type , 3P, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, complete with 2A/2B low-level aux switch, 120 VAC under voltage release (UVR), molded case circuit breakers

SED36350LSGS3, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 48VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HGA260205ABBH, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, molded case circuit breakers

SED36200LIGT1, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 200A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 120VAC shunt trip & 120VAC undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEF363000LSES1C4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PKP46060CU41ARD10, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 600A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with direct mounted standard black handle, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Solid State electronic, molded casecircuit breakers

NPLL34040CU33A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Feed-Thru, 100% rated, complete with micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

HLL36080AFBHUJ, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 525/600 VAC under voltage release (UVR), molded case circuit breakers

SEHD361800LIES5D5, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHF363000LSIGES5A4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDL36060U31XAEBKUOYP, Square D, PowerPact, type , 3P, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PKM36040CU31AAC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, Solid State electronic, molded case circuit breakers

HDA260901AEBCUO, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, 24 VDC under voltage release (UVR), molded case circuit breakers

SEF36600LSES5F4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 600A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

KHL361501441, Square D, KHL Series, type , 3P, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, complete with 24Vac shunt trip and 1A/1B aux switch, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

SEHF361800LSIGS4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 125VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260801AABHSHYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 80A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch low-level, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers
