EEJD340200SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 200A, ABC phase connection, 480V max, Copper, Single Branch mounting style, suitable for use with ED,EDH,EDC,JD,HJD,JDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

HMH3X800B, Siemens, VL Series, type , MG Frame, 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, 100% rated, complete with trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Digital Solid State Electronic molded case circuit breakers

MDN4083LEA0522NMNK4YNKDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDG23N0060TFFK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 60A, 85kA@480V, Bolt-On, line side terminals only, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

WLS1F320DJ, Siemens, WL Series, type , frame size I, fixed mount, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU748 programmer, LS - Long-Time and Short-Time trip functions and 300A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MN4L2F32, General Electric, M-PACT Plus, type , frame size 2, manually operated, 5 N.O.-3 N.C. Auxiliary switches, 4P, 3PH, left side neutral, 3200A, 690V, 65kA@415V, fixed/Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

MDS6163HEA1652NMNA4EMNNAX, Cutler Hammer, Eaton, Magnum DS Type , Standard frame, 65kA@635V interrupting rating, 1600A, 3-Pole, Fixed horizonal mounting, 1600A rating plug, Non-DSL current limiter, 520 LSI trip unit, No shunt trip, Manual operated motor operator, No SRD, UVR (110-127 Vac), 4A/4B auxiliary switch, Metal (block close and open) padlock, No counter - no lock key lock, low voltage power insulated case circuit breaker

MDN4083LEA0422NMNA2EHNNSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & 2A/2B auxiliary switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

PDG34F0400E2NK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 400A, 25kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions , Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

WLH1D316AD, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1600A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLLCD48 LCD display, LSI - Long-Time, Short-Time and Instantaneous trip functions and 200A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PDG34M0400E5NL, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 400A, 65kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions , Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0422NMNNNENCMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, lower terminal voltage connection, castell keylock, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0222NMNNNYNKDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0322NMNFNYNNDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SSF5G8611, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 100kA@480V, standard interrupting capacity, Bolt-On, front connected, 3000A frame rating, complete with Entelliguard trip, LI - Long-Time and Instantaneous trip functions, full metering, modbus communication & ZSI features and 2500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

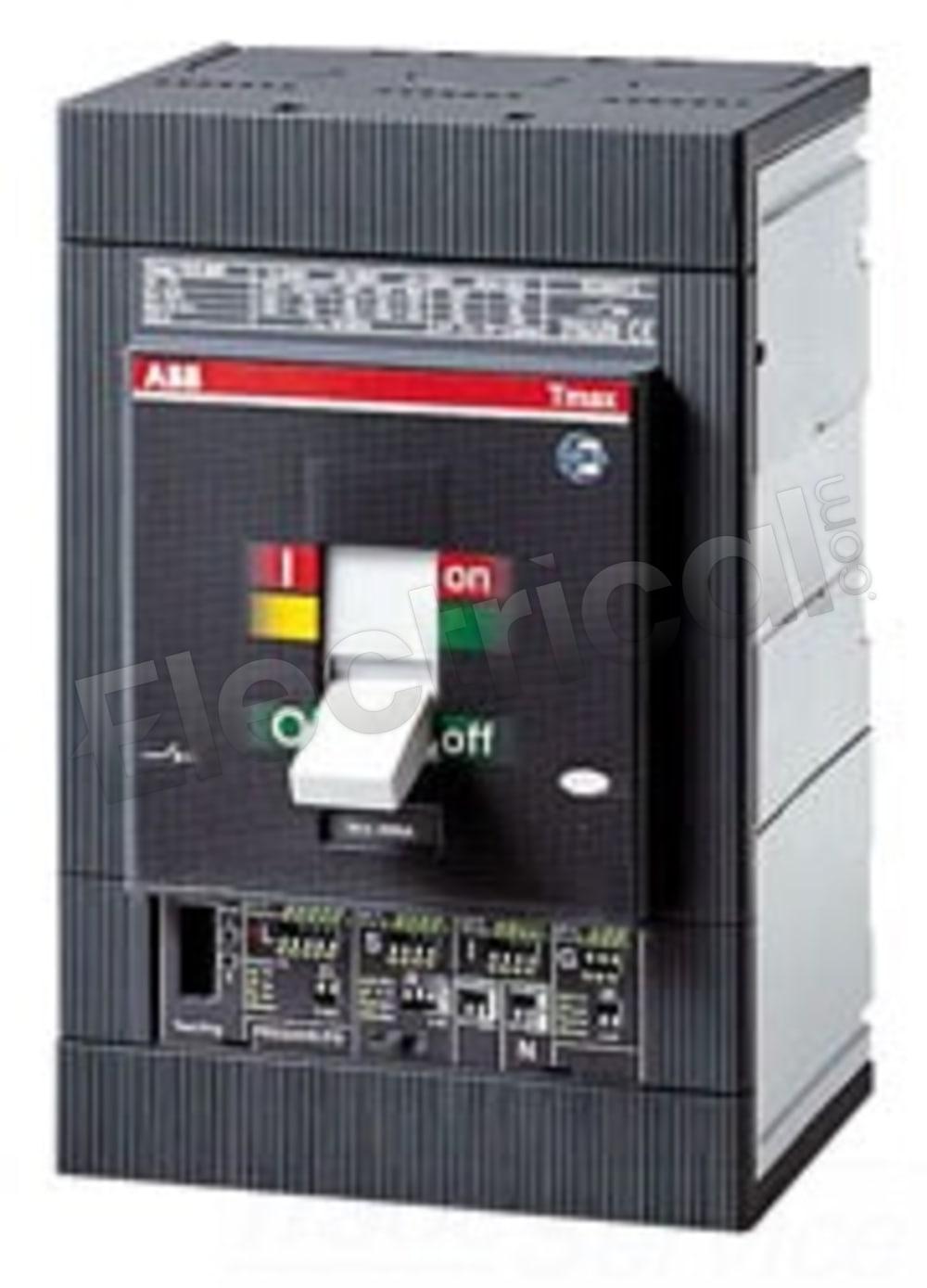

T5L300E5W, ABB, SACE Tmax, type , 3P, 3PH, 300A, 600V, 100kA@480V, 1200kA@415V, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, MCP- AC only, motor circuit protectors, magnetic range 300-3000A, Magnetic Only, molded case circuit breakers

MDN4083LEA0222NMNKNNNANWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDG33N0250E5NJ, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 250A, 100kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions , Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0322NMNA2NNRDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SHD5G893U, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, full metering, modbus communication, relays & ZSI features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SGPP36DC4400C, General Electric, Spectra Series, type SGP, 3P, 3PH, 400A, 600V, 100kA@480V, very high interrupting capacity, current limiting, 100% rated, Bolt-On, complete with SRPG400B400 rating plug, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, PM trip unit with protective relays and LIGT, LIGT - Long-Time, Instantaneous, Ground Fault and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

AKR-6A-50H, General Electric, AKR Series, type , 1600A frame, 3PH, 3P, 635Vac, 300A-1600A sensor rating available, 65kA@508V, Draw-Out, AKD-6, available either mechanically operated or electrically operated, with MicroVersa Trip, LI - Long-Time and Instantaneous trip functions, optional functions available, Solid State electronic, low voltage air circuit breakers

PDF33GH400E3CJ, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 35kA@480V, 100% UL, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0122NMNENYNCMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired
