MDN4083LEA0522NMNXNENACPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

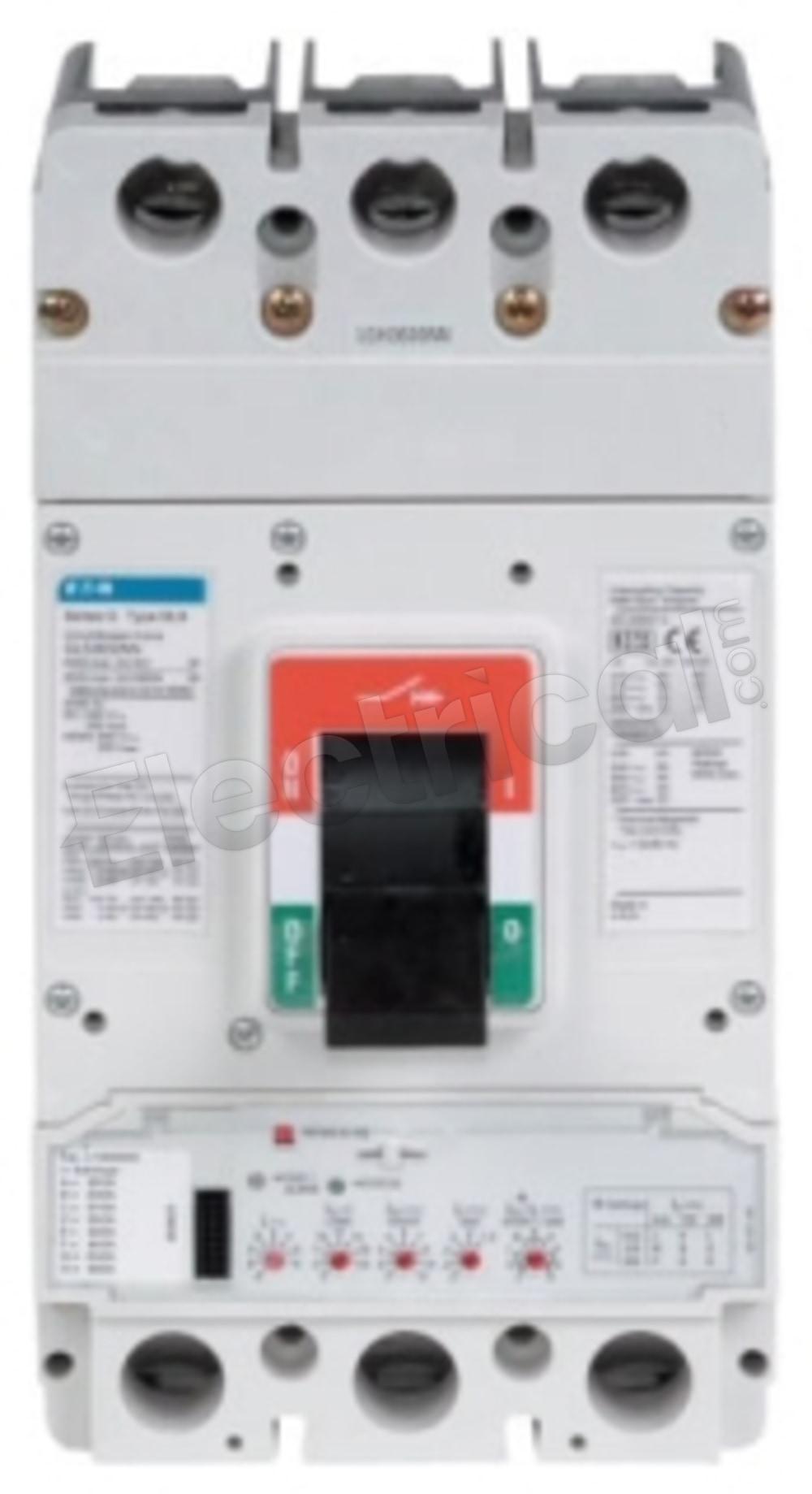

GLS3400AAM, Cutler Hammer, Series G, type , 3P, 3PH, 400A, 600V, 50kA@480V, high interrupting capacity, 40°C, Bolt-On, complete with interchangeable trip unit, metric end caps, adjustable Thermal Magnetic, molded case circuit breakers

HFB2110, Westinghouse, Cutler Hammer, MARK 75, type , 2P, 1PH, 110A, 600V, 25kA@480V, high interrupting capacity, 40ºC, Bolt-On, complete with trip, LI - Long-Time and Instantaneous trip functions & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

SSF5G8B61, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 100kA@480V, standard interrupting capacity, Bolt-On, front connected, 3000A frame rating, complete with Entelliguard trip, LSH - Long-Time, Short-Time and High-Range Instantaneous trip functions, current metering, RELT & modbus communication features and 2500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MUVH1RP22K, Cutler Hammer, Series C, type , under voltage release, 48 - 60V, right side mounted, pigtail style leads, 1 undervoltage release mechanism, suitable for use with F-frame HMCP molded case circuit breakers

PDG23G0060D3MK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 60A, 35kA@480V, Bolt-On, line side lug terminals, complete with Xpert Release PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays and modbus, Solid State electronic, molded case circuit breakers; globally rated

WLS2D320ET, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFA76 ground fault module, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and 315A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PDG54N0800D5WM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 800A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault with ARMS trip functions with relays, modbus & ZSI option, Solid State electronic, molded case circuit breakers; globally rated

SHD6G9J71, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, modbus communication & relays features and 2500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SHF1G3K4L, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 800A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, current metering & ZSI features and 700A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PDF53K0800P4MM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 800A, 50kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous with ARMS trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

PDG43K0800D2YN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 800A, 50kA@480V, Bolt-On, no lug terminals, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions, relays, modbus, ZSI and CAM, Solid State electronic, molded case circuit breakers; globally rated

EGHDC3070FFW, Eaton, Cutler Hammer, Series G, type , 3P, 3PH, 70A, 600V, DC rated, 65kA@500V, high interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

MDN4083LEA0322NMNF2ENACPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0422NMNC4NCNNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0122NMNENENRDPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MPA31F08V0036, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50L trip unit, 110/130V dc/ac shunt trip and 220/250V dc undervoltage trip with delay, 3P, 3PH, 800A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault, Solid State electronic, insulated case circuit breakers

E4H-A36-3P-2500A-BO-MO-LSIG, ABB, EMax, type , 3P, 3PH, 3600A frame, 2500A rating plug, 600V, 85kA@480V, fixed/Bolt-On, manually operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

MDN4083LEA0622NMNK2YNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, & OTS switch, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0722NMNGNEMNCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed metal padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0222NMNK4NNCCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0622NMNCNENCDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

WLH1D316ET, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1600A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFA76 ground fault module, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and 315A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0122NMNJNENRNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired
