PGF46060U44ABC, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with 1A/1B alarm switch, micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

SEF36350LIGES5D4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0122NMNH4ENKMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

LG-3000-MO-DO-LSIG, ITE, LG Series, type , 3000A frame size, manually operated/Draw-Out, 3P, 3PH, 2000A or 3000A current sensor rating, 600V, 75kA@600V, originally supplied with OD-1 or OD-2 dual overcurrent trip device but can be retrofitted with a modern Solid State electronic trip unit with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power air circuit breakers

MDN4083LEA0522NMNENENADCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SSF6G9W2U, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 100kA@480V, standard interrupting capacity, Bolt-On, front connected, 3000A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering, RELT, modbus communication, relays & ZSI features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

EF3H045, Siemens, ITE, EF Series, type , 3P, 3PH, 45A, 600V, 14kA@480V, standard interrupting capacity, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, high magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

PDG34M0125E3XK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 125A, 65kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SSB2G5J4U, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 1600A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, modbus communication & relays features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

HDA36020BHURYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 20A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHF36200LSES8C8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 200A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MPA31F2002410, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, 48V dc motor operator, 220/250V dc/ac closing coil and 24/30V dc shunt trip, 3P, 3PH, 2000A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

SEHD362000LSGES1E5, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 2000A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

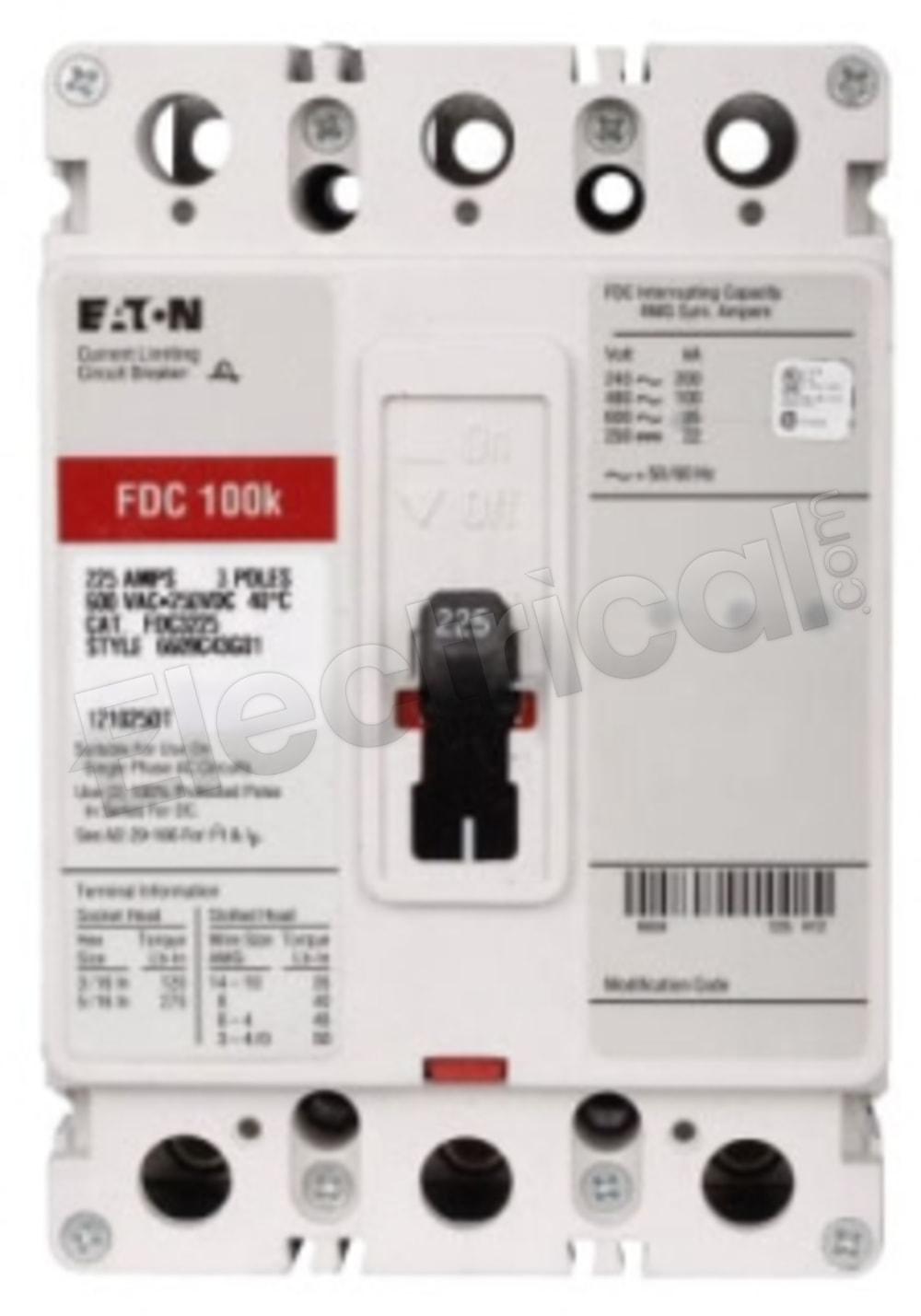

FDC3150Q01, Cutler Hammer, Westinghouse, Eaton, Series C, type , 3P, 3PH, 150A, 600V, 100kA@480V, current limiting, 40℃, Bolt-On, complete with line side mounted current limiter, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

NB231090H, American, Federal Pacific, NB Series, type , 3P, 3PH, 90A, 240V, 22kA@240V, Bolt-On, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are now obsolete, however we do still stock them

WLL3D340VH, Siemens, WL Series, type , frame size III, drawout, 3P, 3PH, 4000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLLCD48 LCD display + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 2500A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PJL36120U73AE1AB, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with 2A/2B auxiliary switch, micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

PLA36040U74AE1BC, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase connection, 3PH, 400A, 600V, 100kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, complete with 1A/1B alarm switch, micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

HDA36150U43XAEBHSD, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch low-level, 208/277 VAC shunt trip, molded case circuit breakers

MEL36175LIG, Square D, Micrologic, type , 3P, 3PH, 175A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, 100% rated, complete with full function Micrologic non-interchangeable trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, ARP070 installed rating plug and line & load side lug terminals, Solid State electronic, molded case circuit breakers

HJL36040AEBHUAYP, Square D, PowerPact, type , 3P, 3PH, 40A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHD361400LSES4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1400A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HJL36150M74ABBHUDYP, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, Magnetic Only, complete with 2A/2B aux switch, alarm switch low-level, 208/277 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJL36150M58X, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only, advanced trip unit, and line & load side lug terminals, Mag-Gard MCP, motor circuit protectors, magnetic range 500-1300A, Magnetic Only, molded case circuit breakers
