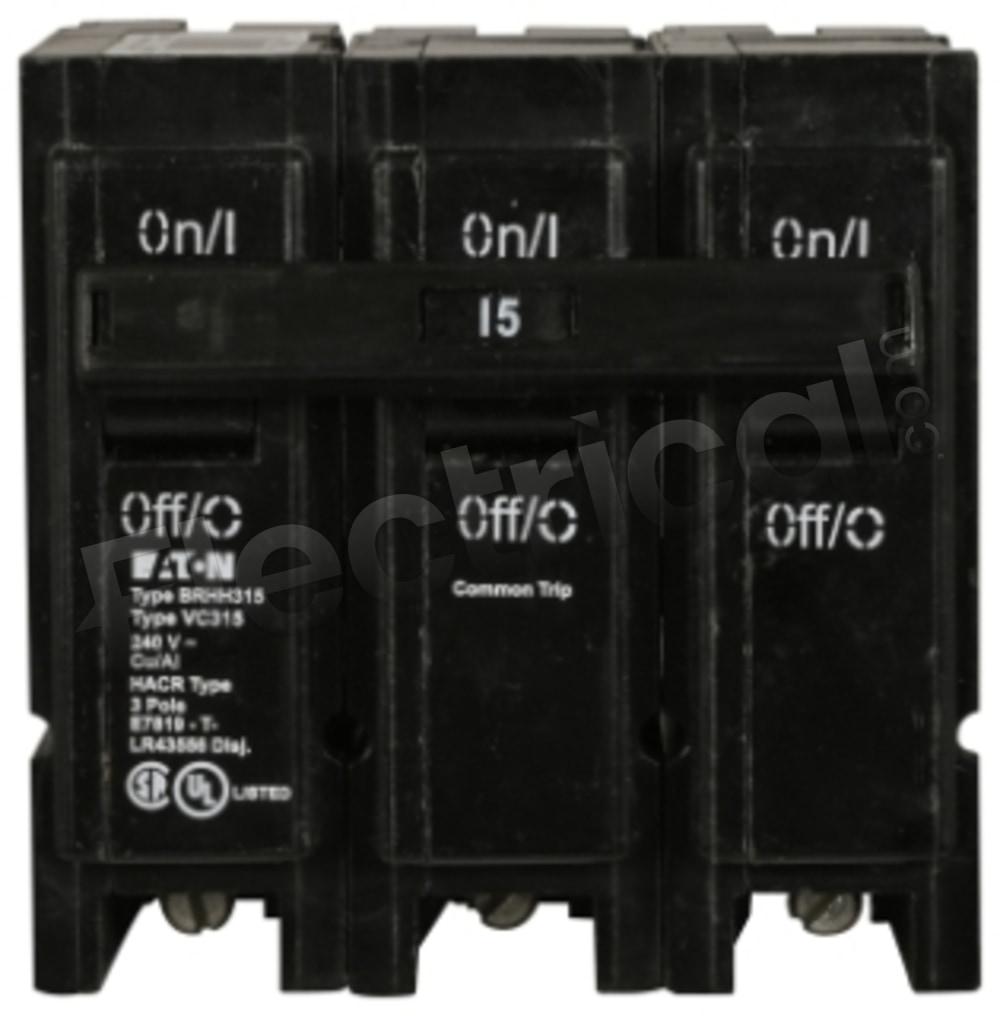

BRHH315, Cutler Hammer, BR Series, type , 3P, 3PH, 15A, 240V, 42kA@240V, very high interrupting capacity, 40°C, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

XT5LQ460BNFF000XXX, ABB, SACE Tmax XT, type , UL 100% rated, 3PH, 4P, 600V, 600A, 100kA@480V, Bolt-On, front terminals, complete with TMG trip, generator protection circuit breakers; 1SDA102698R1 + 1SDA107797R1 + 1SDA112974R1 global reference

WLL1D316HU, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1600A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFM76 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 450A rating plug, Solid State electronic, low voltage insulated case circuit breakers

HGA36060U43XAEBHSL, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch low-level, 48 VAC shunt trip, molded case circuit breakers

B210LSIGZ2PM, General Electric, MicroVersaTrip PM, type , trip units and programmers, 1000A current sensor rating, Solid State electronic, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, short-time selective interlock, protective relays, metering & communications, suitable for use with Power Break II SSD,SHD,SSF,SHF frame insulated case circuit breakers

S804S-B10, ABB, S800 Series, type , B trip curve, IEC rated, 4P, 3PH, 10A, 690V, 50kA@690V, current limiting, DIN rail mounting, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

SEHD361800LSGV1, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 120VAC undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHD362500LSIES5D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 2500A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHF361200ES1D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1200A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PLL34100U31BAC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1000A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Feed-Thru, complete with 3A/3B auxiliary switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

EGB3035FFGVH08, Cutler Hammer, Series G, type , 3P, 3PH, 35A, 480V, 18kA@480V, standard interrupting capacity, for Marine applications 50°C, not UL listed, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

NPGF46040CU31A, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

WLC2D312JA, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1200A, 600V, 150kA@480V, UL listed, very high interrupting capacity, Draw-Out, complete with solid state ETU725 programmer with LSI - Long-Time, Short-Time and Instantaneous trip functions and 500A rating plug, Solid State electronic, low voltage insulated case circuit breakers

HGA36100U31XUH, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 380/480 VAC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0622NMNN4NNRCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0222NMNFNNNKNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HJL36045AEBKURYP, Square D, PowerPact, type , 3P, 3PH, 45A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHF36350LIES8B8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDL26150BESH, Square D, PowerPact, type , 2P, 1PH, 150A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, 380/480 VAC shunt trip, molded case circuit breakers

MDN4083LEA0622NMNJ4NNYMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SEF361000LSGES5A4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

E4L-A32-4P-3000A-BO-EO-LI, ABB, EMax, type , 4P, 3PH, 3200A frame, 3000A rating plug, 600V, 125kA@480V, fixed/Bolt-On, electrically operated, Solid State electronic with LI - Long-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

WLH2F312PB, Siemens, WL Series, type , frame size II, fixed mount, 3P, 3PH, 1200A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU727 programmer, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 1000A rating plug, Solid State electronic, low voltage insulated case circuit breakers

HDA36060U31XABBCSN, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B aux switch, alarm switch, 12 VDC shunt trip, molded case circuit breakers
