PJF36120CU64AE1, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

2603D50G22, Westinghouse, LA Series, type , 3P, 3PH, 400A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, Saf-T-Vue window and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete, however we do still stock them

PDG34NH250E3XJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 250A, High Override, 100kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HGL26060AESRYP, Square D, PowerPact, type , 2P, 1PH, 60A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, 125 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0122NPRKNENNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, electrically operated with 220-240Vac motor operator and 208-250Vac/dc spring release device (SRD), factory installed 600Vac UVR, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Solid State, low voltage power insulated case circuit breakers

A1B160VH, Square D, A1B Series, type , 1P, 1PH, 60A, rated for 120VAC & 48VDC, 22kA@120V, standard interrupting capacity, 40°C, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; these product are now obsolete; however, we do still stock them

SHF2G5Q8K, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & ZSI features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

LV429641ATS4, Schneider Electric, Compact NSX, type , 4P, 3PH, 100A, 690V, 36kA@415V, Bolt-On, complete with NSX100F frame, type UA, 380Vac controller, automatic transfer switch and 3 pole TM80D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0822NMNR2YNRCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0122NMNANECNMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SHD2G458P, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 1600A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & ZSI features and 1000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

NPLL34080U33AYP, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 800A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Feed-Thru, complete with fixed handle padlocking device, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

HDA260501AABKUO, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 50A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, low-level, 24 VDC under voltage release (UVR), molded case circuit breakers

HGA260904BHSV, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 90A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 60 VDC shunt trip, molded case circuit breakers

HDA36100U43XAABCUHYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SSD4G636M, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 2500A frame rating, complete with Entelliguard trip, LSH - Long-Time, Short-Time and High-Range Instantaneous trip functions, current metering, modbus communcation & ZSI features and 750A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEHD36250LSES4D4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 250A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SED36400LSGES4E8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

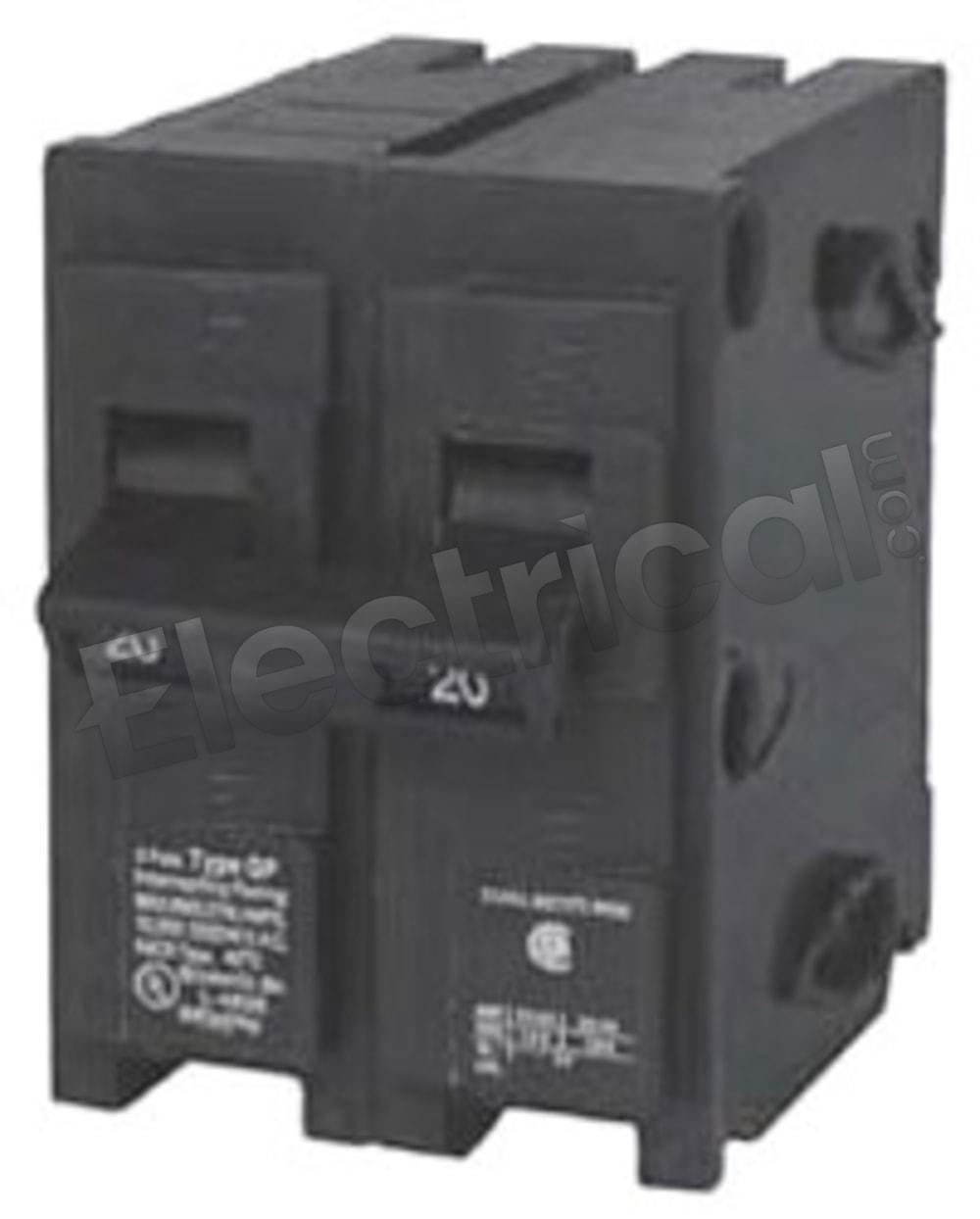

Q23501 Siemens Q Series, type , 2P, 1PH, 35A, 120/240V, with factory installed 120V auxiliary switch, 10kA@240V, standard interrupting capacity, Plug-In, Thermal Magnetic molded case circuit breakers

SSF2G4W8N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication, relays & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PDG33PH400E5ZK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 100kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HGL36090BCUO, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch, 24 VDC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0822NMNF4ENADSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

MDN4083LEA0522NMNN4ENHMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired
