HDA260901AABKUP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, low-level, 48 VDC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0322NMNA2YNYNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0222NMNX4ENCMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

MDN4083LEA0122NMNGNNNHNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDG23F0225D3MN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 225A, 25kA@480V, Bolt-On, no lug terminals, complete with Xpert Release PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays and modbus, Solid State electronic, molded case circuit breakers; globally rated

SEF364000LSIEV1, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 4000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PKL36100CU73BE1AC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

PGP36060U33ARD10, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with direct mounted standard black handle, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

PDG26F0080VFFJ, Eaton, Cutler Hammer, Power Defense, type , 50ºC, 3PH, 4P, 60% neutral, 600V, 80A, 25kA@480V, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, CCC certifications; non-UL listed

SED36350LSIES5, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260901ABBCSK, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch, 24 VAC shunt trip, molded case circuit breakers

XT4VU3150RFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 150A, 600V, 65kA@600V, Ekip Touch Measuring LSI, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

MDN4083LEA0122NMNHNENKMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HDA36150U44XAEBCSRYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch, 125 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJL36100M73AABHSK, Square D, PowerPact, type , 3P, 3PH, 100A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 180-1040A, Magnetic Only, complete with 1A/1B aux switch, alarm switch low-level, 24 VAC shunt trip, molded case circuit breakers

WLS2D316HN, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1600A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU748 programmer + WLLCD48 LCD display + WLGFA48 ground fault module, LSGA - Long-Time, Short-Time and Ground Fault Alarm trip functions and 450A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SHF3G6J2W, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 2000A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering, modbus communication & relays features and 2000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0622NMNX4NNYDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0122NMNHNNNAMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

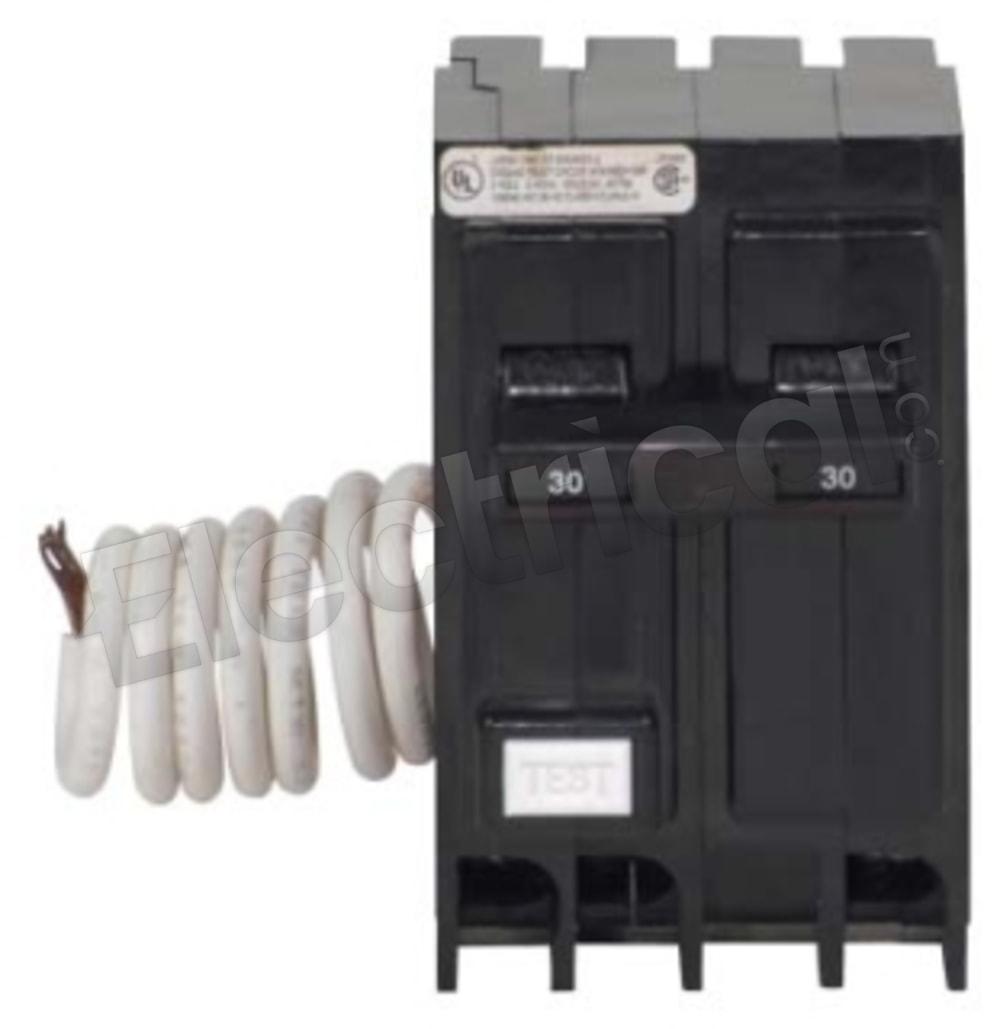

GFCB230CS, Cutler Hammer, GF Series, type , ground fault circuit interrupters (GFCI), clamshells, 2P, 1PH, 30A, 120/240V, 10kA@240V, UL listed, standard interrupting capacity, 40°C, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers, suitable for use in type BR load centers

MDN4083LEA0422NMNENECNDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HDA36100ABBHUOYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 24 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SSF2G5Q4N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, RELT, modbus communication & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0322NMNK4NNNDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers
