MD2600W, Westinghouse, Cutler Hammer, Eaton, Series C, type , 2P, 1PH, 600A, 600V, 50kA@480V, standard interrupting capacity, 40°C, Bolt-On, complete with interchangeable LI - Long-Time and Instantaneous trip functions,lug terminals not included, Thermal Magnetic molded case circuit breakers

XT2SQ4010GFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 10A, 600V, 22kA@600V, Ekip LSIG (Electronic, LSIG protection), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No

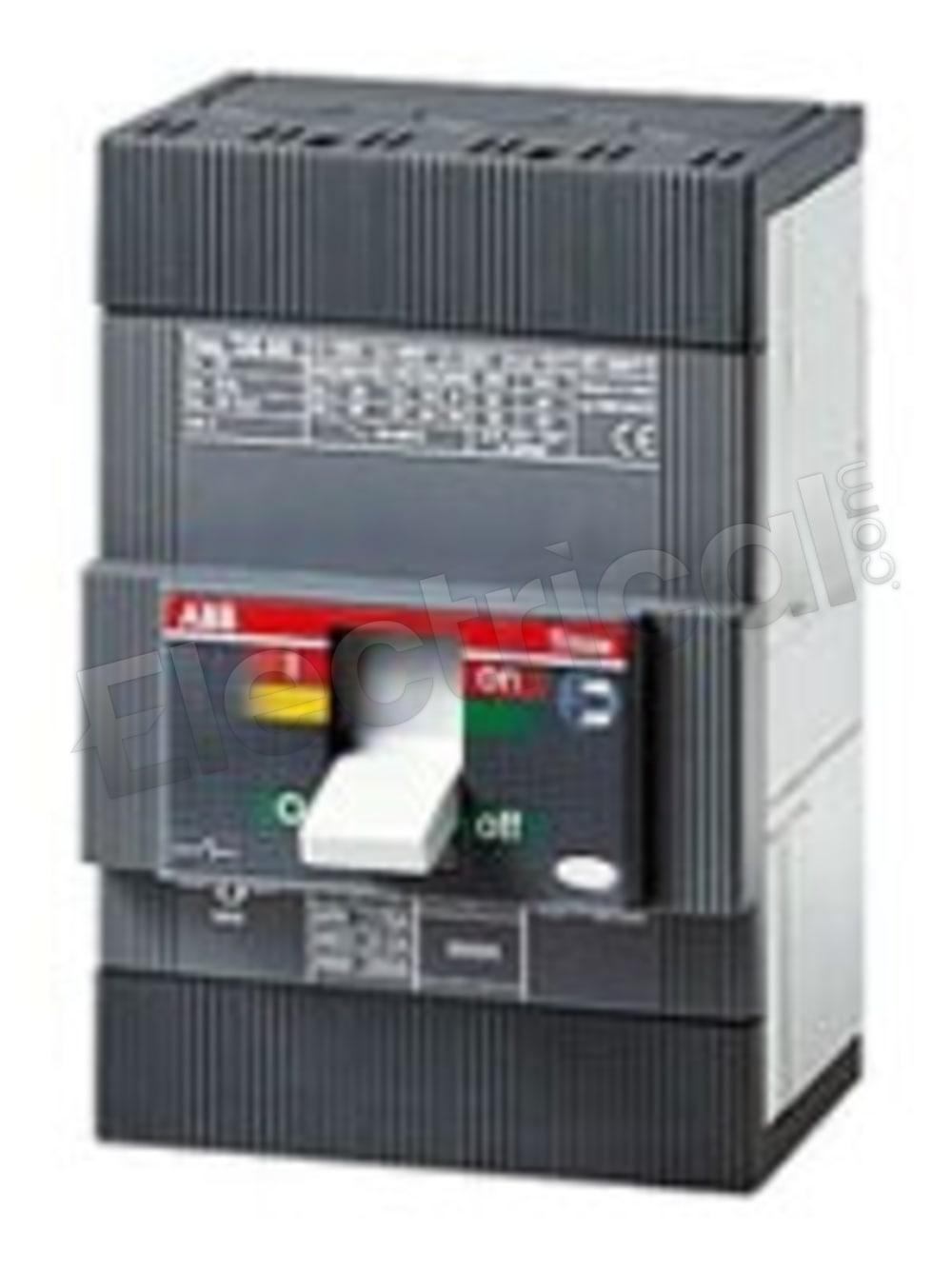

T3S150MW, ABB, SACE Tmax, type , 3P, 3PH, 150A, 600V, 35kA@480V, 50kA@415V, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, MCP, motor circuit protectors, magnetic range 900-1800A, Magnetic Only, molded case circuit breakers

MDN4083LEA0222NMNH4ENCDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HDA260254AABCUAYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 25A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SED36250LSIGES7D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 250A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 125VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0822NMNRNENLNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SHB6G9N7W, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 150kA@480V, high interrupting capacity, Bolt-On, back connected, 3000A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, current metering, modbus communication & ZSI features and 2000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0722NMNH2ENRDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0122CMN44YNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc shunt trip (ST) and 48Vdc second shunt trip (STA), 4A/4B auxiliary switch, mechanical trip indicator & OTS switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Solid State, low voltage power insulated case circuit breakers

HGA36060U43XAFBHSP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B low-level aux switch, alarm switch low-level, 48 VDC shunt trip, molded case circuit breakers

CRD320T95W, Westinghouse, Cutler Hammer, Eaton, Series C, type , 3P, 3PH, 2000A, 600V, 65kA@480V, standard interrupting capacity, Bolt-On, 100% rated, complete with LSG - Long-Time, Short-Time and Ground Fault trip functions, lugs and rating plug not included, Digitrip RMS 910 Solid State electronic, molded case circuit breakers

HGL36020AABCSVYP, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 60 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

XT5LU350BMFF000XXX, ABB, SACE Tmax XT, type , 3PH, 3P, 600V, 500A, 100kA@480V, Bolt-On, front terminals, MCP, motor circuit protector, Motor Circuit Protector (MCP), MA trip with I - Instantaneous protection only, molded case circuit breakers; 1SDA102559R1 global reference

25HL-2-600A-MO-DO-LS, Federal Pioneer, Federal Pacific, H-2 Series, type , fused 600A frame size, manually operated/Draw-Out, 3P, 3PH, 600A, 600V, 200kA@480V, available with multiple trip unit options, LS - Long-Time and Short-Time trip functions, Solid State electronic, low voltage power air circuit breakers

SEF36200ES8C4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 200A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

E3V-A08-3P-600A-BO-EO-LI, ABB, EMax, type , 3P, 3PH, 800A frame, 600A rating plug, 600V, 125kA@480V, fixed mount/Bolt-On, electrically operated, Solid State electronic with LI - Long-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

NSE160N4160EL, Schneider Electric, Compact, type , NSE160N, Vigi 4, 4P, 3PH, 160A, IEC rated, 480V, 35kA@415V, Bolt-On, complete with earth-fault protection, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

JRF36250CU31X, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 250A, 600V, 200kA@480V, current limiting, Bolt-On, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State, molded case circuit breakers

MDN4083LEA0422NMNCNENRDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

WLL3F350PR, Siemens, WL Series, type , frame size III, fixed mount, 3P, 3PH, 5000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU755 programmer, LSI - Long-Time, Short-Time and Instantaneous trip functions and 1000A rating plug, Solid State electronic, low voltage insulated case circuit breakers

NM032800, Federal Pacific, NM Series, type , 3P, 3PH, 800A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete; however, we do still stock them

SEHF363000LIG, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, manually operated, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260201BCSNYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 20A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with alarm switch, 12 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers
