MP08-3P-600A-EO-DO-LSG, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 800A frame with 600A or 800A sensor rating with 600A rating plug, 3P, 3PH, 600V, 50kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

HJA36100U44XAEBCSHYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

NMY3P600B, Siemens, VL Series, type , MG Frame, 3P, 3PH, 600A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, 100% rated, complete with non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Digital Solid State Electronic molded case circuit breakers

MDN4083LEA0822NMNJ2NNNNSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HDA261002BHUA, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 120 VAC under voltage release (UVR), molded case circuit breakers

PJA36025CU64AE1AC, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase connection, 3PH, 250A, 600V, 65kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

SEHF364000LSIGES7, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 4000A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 125VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHF36250LIES5E5, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 250A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

FHL360301354, Square D, FHL Series, type , 3P, 3PH, 30A, 600V, 25kA@480V, standard interrupting capacity, Feed-Thru, complete with 2 sets of 2A/2B aux switches, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

PDG32N0400E4CJ, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 400A, 85kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions and CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

LDY3B100L, Siemens, VL Series, type , 3P, 3PH, 100A, 600V, 100kA@480V, very high interrupting capacity, 40°C, Feed-Thru, 100% rated, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

30H-3-600A-MO-DO-LSG, Federal Pacific, Federal Pioneer, H-3 Series, type , 600A frame size, manually operated/Draw-Out, 3P, 3PH, 600A, 600V, 30kA@480V, available with multiple trip unit options, LSG - Long-Time, Short-Time and Ground Fault trip functions, Solid State electronic, low voltage power air circuit breakers

MDN4083LEA0122HPR12NNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, factory installed 48Vdc shunt trip (ST), 110-127Vac second shunt trip (STA), 2A/2B auxiliary switch & mechanical trip indicator, electrically operated with factory installed 220-240Vac motor operator & 208-250Vac spring release device (SRD), Solid State, low voltage power insulated case circuit breakers

PJP36100U64AE1, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

PDF33KH400P3MN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 50kA@480V, 100% UL, Bolt-On, no lug terminals, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HJL36150M74AFBCURYP, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, Magnetic Only, complete with 2A/2B low-level aux switch, alarm switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

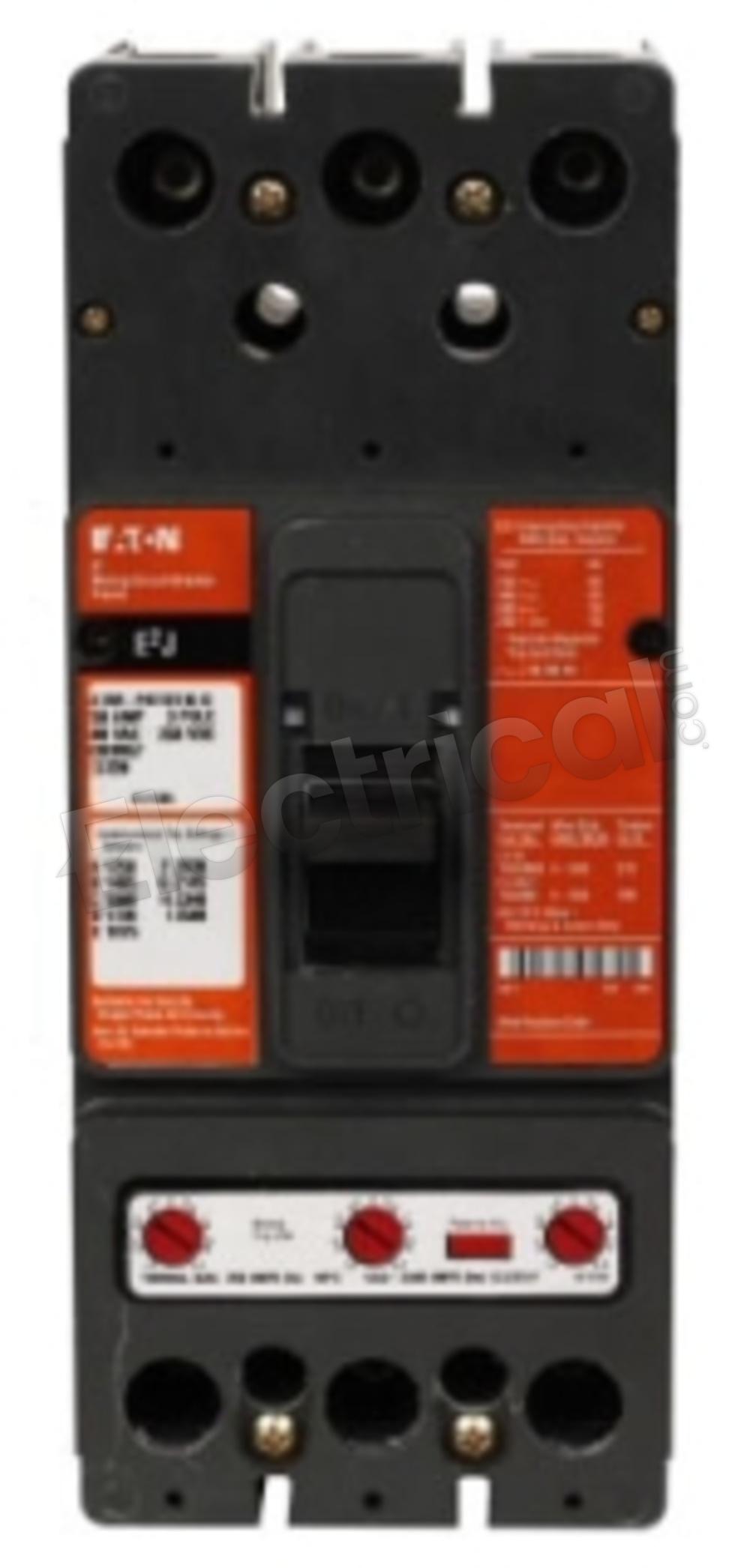

E2J3070T, Cutler Hammer, Series C, type , 3P, interchangeable trip, LI - Long-Time and Instantaneous trip functions, rated for 70A, magnetic trip range 300-650A, suitable for 250A- E2J,E2JM mining service molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

MDN4083LEA0622NMNK2YNYCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

432374 General Electric Record Plus, type , FE160 frame, 4P, 3 trips, 3PH, 100A, 690V, 150kA@415V, very high interrupting capacity, Feed-Thru, complete with interchangeable LTMD trip, LI - Long-Time and Instantaneous trip functions, Selective Thermal Magnetic, molded case circuit breakers

MDN4083LEA0222NMNANNNKNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0622NMNXNNNYMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

TF4P2100 General Electric TF Series, type , 4P, 2 protected poles and 2 nonautomatic poles, 3PH, 100A, 600V, 22kA@600V, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

HJL36125AASJ, Square D, PowerPact, type , 3P, 3PH, 125A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, 525/600 VAC shunt trip, molded case circuit breakers

HGA36070AEBKSKYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 70A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers
