SEHD361000LIGES5C4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1000A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDG32KH400D5YK, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 1PH, 2P, 600V, 400A, high override, 50kA@480V, Bolt-On, line side lug terminals, complete with PXR20D ARMS trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU, CAM Link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

BW2125SR01, Cutler Hammer, BW Series, type , 2P, 1PH, 125A, 240V, 10kA@240V, high interrupting capacity, 40ºC, Bolt-On, suitable for use as main breaker, with 120V shunt trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers

MDN4083LEA0122NMNR4ENANAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, Solid State, low voltage power insulated case circuit breakers

HJD36035, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 35A, 600V, 65kA@480V, UL listed, current limiting, Draw-Out, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

WLL3F340RT, Siemens, WL Series, type , frame size III, fixed mount, 3P, 3PH, 4000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU755 programmer + WLGFA76 ground fault module, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and 1250A rating plug, Solid State electronic, low voltage insulated case circuit breakers

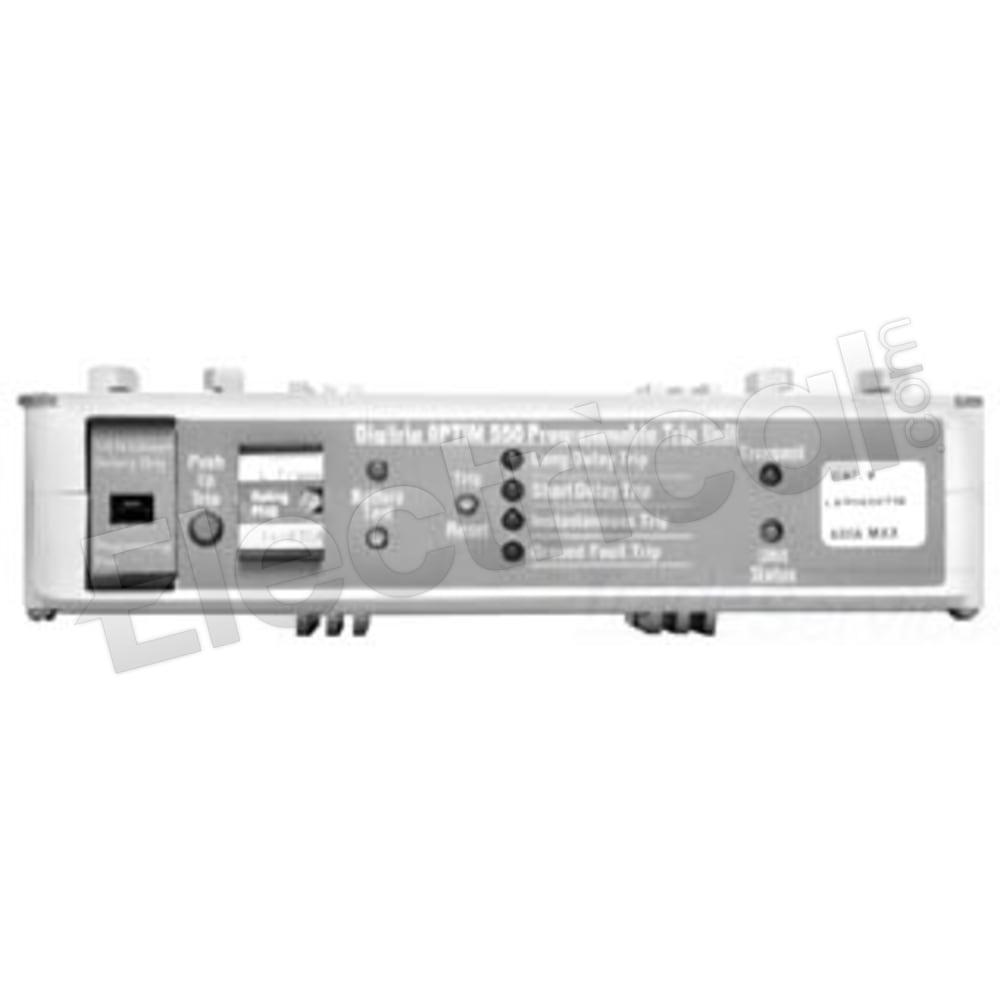

LEP3600T57, Cutler Hammer, Digitrip OPTIM 550 trip unit for upgrading thermal magnetic trips, type , 600A, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, Solid State electronic, suitable for use with LD,HLD,LDC,CLD,CHLD,CLDC molded case circuit breakers

SEF363000LIES2E4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

WLL2F320JH, Siemens, WL Series, type , frame size II, fixed mount, 3P, 3PH, 2000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU745 programmer + WLLCD48 LCD display + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 500A rating plug, Solid State electronic, low voltage insulated case circuit breakers

RGF36250CU74BE1, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 2500A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

MPA41F1003330, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, 110/130V dc/ac motor operator, 110/130V dc/ac closing coil and 110/130V dc/ac shunt trip, 4P, 3PH, 1000A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

MDN4083LEA0422NMNENYNYNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HJL36080AEBKSK, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VAC shunt trip, molded case circuit breakers

HGN36100U31X, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 100A, 600V, 35kA@480V, standard interrupting capacity, Plug-In, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

PDG32M0125E2RJ, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 125A, 65kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SSD6G9W2W, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 100kA@480V, standard interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering, RELT, modbus communication, relays & ZSI features and 2000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

E6H-A50-4P-5000A-DO-MO-LSI, ABB, EMax, type , 4P, 3PH, 5000A frame, 5000A rating plug, 600V, 85kA@480V, Draw-Out, manually operated, Solid State electronic with LSI - Long-Time, Short-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

MPA41F20W1130, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50H trip unit, 24/30V dc motor operator, 24/30V dc closing coil and 110/130V dc/ac shunt trip, 4P, 3PH, 2000A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers

SSB3G6B8N, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 2000A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, current metering, RELT & modbus communication features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

HGA36150U31XAEBCSNYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch, 12 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HGA36060U33XAASJ, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, 525/600 VAC shunt trip, molded case circuit breakers

HGL36150U44XAEBCUPYP, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, micrologic ammeter non-interchangeable trip with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch, 48 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

MGA36350UC, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 350A, 600V, 35kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, complete with 220/240Vac UVR, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State, molded case circuit breakers

KHF36090V, Square D, KHF Series, type , 3P, 3PH, 90A, 600V, 35kA@480V, high interrupting capacity, Bolt-On, complete with visi-trip window, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers
