MDN4083LEA0522NMNR2ENCNSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

JGH310033GCVH08, Cutler Hammer, Series G, type , 3P, 3PH, 100A, 600V, 65kA@480V, 100% rated, high interrupting capacity, for Marine applications 50°C, not UL listed, Feed-Thru, complete breaker with 310+ electronic, non-interchangeable trip unit and line & load side lug terminals, Solid State, molded case circuit breakers

HJA260404AFSR, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 40A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, 125 VDC shunt trip, molded case circuit breakers

MDN4083LEA0722NMNK4NNCNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SEHD361400ET2, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1400A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0722NMNF2ENNNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions,& load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0422NMNKNYMNNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed metal padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0822NMNENNNRNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

2A11891G10, Cutler Hammer, Magnum DS, field installable, rating plug, rated for 1250A, suitable for use with Magnum DS MDS air circuit breaker frame types, for use with Digitrip 220,520,520M,1150 solid state programmers

MDN4083LEA0722NMNR2YNYCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

TJ4V2603NG General Electric MicroVersaTrip, type , J600 frame type, 3P, 3PH, 300A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with Power+ 4 trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic molded case circuit breakers

MDN4083LEA0322NMNXNYNADSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HDL26100BKUK, Square D, PowerPact, type , 2P, 1PH, 100A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, low-level, 24 VAC under voltage release (UVR), molded case circuit breakers

SGLC3601L3KX General Electric Spectra Series, type , 3P, 3PH, 150A, 600V, 65kA@480V, high interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI, LSI - Long-Time, Short-Time and Instantaneous and neutral protection trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

SEHD362000LSIES4C8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 2000A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

D216LSIT, General Electric, Power Plus, type , trip units/trip units and programmers, 1600A current sensor rating, Solid State electronic, complete with LSI - Long-Time, Short-Time and Instantaneous trip functions and target feature, suitable for use with Power Break II SSD,SHD,SSF,SHF frame insulated case circuit breakers

E6L-A50-4P-3000A-BO-MO-LSI, ABB, EMax, type , 4P, 3PH, 5000A frame, 3000A rating plug, 600V, 150kA@480V, fixed/Bolt-On, manually operated, Solid State electronic with LSI - Long-Time, Short-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

SEF362000LST4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 2000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, complete with 125VDC shunt trip & undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

UVH1LT11, Cutler Hammer, Series C, factory mounted under voltage release/UVR, 208-240Vac, left pole mounted, terminal block, suitable for use with FDB,FD,HFD,FDC frame molded case circuit breakers

MDN4083LEA0422NMNE4YNHDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

NSE250S3200P, Schneider Electric, Compact, type , NSE250S, 3P, 3PH, 200A, IEC rated, 480V, 50kA@415V, Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

HGL26060UHYP, Square D, PowerPact, type , 2P, 1PH, 60A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 380/480 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

B208LSHGR, General Electric, MicroVersaTrip Plus, type , replacement trip units and programmers, 800A current sensor rating, Solid State electronic, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault, high-range instantaneous, trip functions, suitable for use with Power Break II SSD,SHD,SSF,SHF frame insulated case circuit breakers

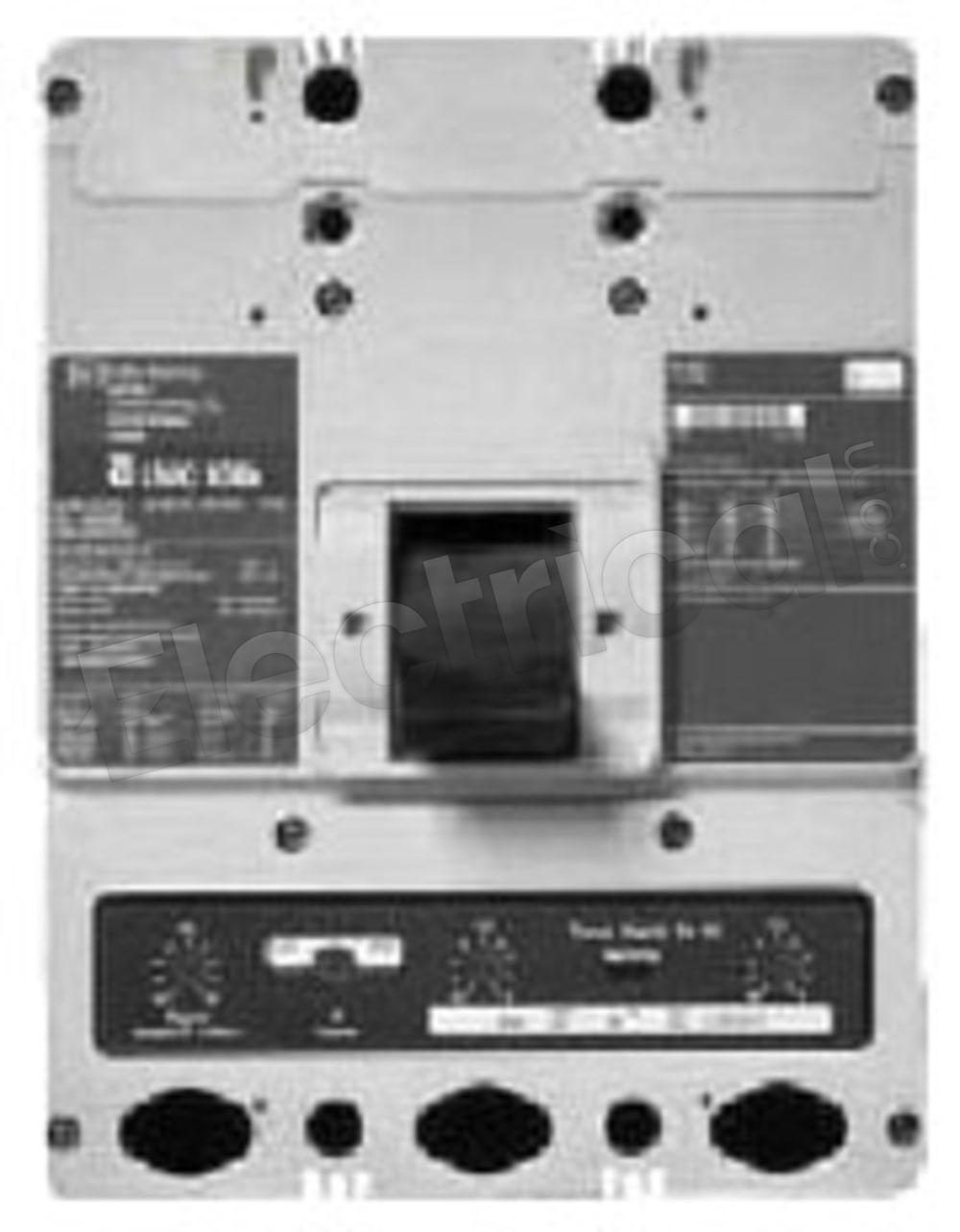

LWC3400, Eaton, Westinghouse, Cutler Hammer, Series C, type , 3P, 3PH, 400A, 690V, 100kA@415V, IEC rated, ultra-high interrupting capacity, Feed-Thru, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable Thermal Magnetic, molded case circuit breakers
