NPKP36100CU43B, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1000A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0422NMNA2YNCCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

GES3040FFM, Cutler Hammer, Series G, type , 3P, 3PH, 40A, 480V, 35kA@480V, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, metric end caps, Thermal Magnetic, molded case circuit breakers

WLS1D320EC, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU745 programmer with LSI - Long-Time, Short-Time and Instantaneous trip functions and 315A rating plugs, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0722NMNFNYNRNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

SGHH36CA1150C, General Electric, Spectra Series, type SGH, 3P, 3PH, 150A, 600V, 35kA@480V, standard interrupting capacity, 100% rated, Bolt-On, complete with SRPG150B150 rating plug, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, PM trip unit with LIT, LIT - Long-Time, Instantaneous and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

HJL36080UH, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 380/480 VAC under voltage release (UVR), molded case circuit breakers

HDA36080AF, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 80A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, molded case circuit breakers

75H-3-3000A-EO-BO-LSG, Federal Pioneer, Federal Pacific, H-3 Series, type , 3000A frame size, electrically operated/Bolt-On, 3P, 3PH, 3000A, 600V, 85kA@480V, available with multiple trip unit options, LSG - Long-Time, Short-Time and Ground Fault trip functions, Solid State electronic, low voltage power air circuit breakers

EB2100HM, Westinghouse, Cutler Hammer, AB DE-ION, type , 2P, 1PH, 100A, 240V, 10kA@240V, standard interrupting capacity, 40°C, Bolt-On, high magnetic trip system, complete with LI - Long-Time and Instantaneous trip functions & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now

MDN4083LEA0622NMNG2NHKMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch, Kirk keylock, mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HDL36040CAABCSLYP, Square D, PowerPact, type , 3P, 3PH, 40A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, 100% rated, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 48 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJL36030M71AFBHUOYP, Square D, PowerPact, type , 3P, 3PH, 30A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 9-325A, Magnetic Only, complete with 2A/2B low-level aux switch, alarm switch low-level, 24 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

LGL46400U54X, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 400A, 600V, 35kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with non-interchangeable micrologic energy 6.3E trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

SHD1G1K3B, General Electric, Power Break II, type , 3P, 3PH, 600V, 200A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 800A frame, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, current metering & ZSI features and 150A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0122NMNH4YNKMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

PDG32K0400E2MJ, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 400A, 50kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HJL36050ABSH, Square D, PowerPact, type , 3P, 3PH, 50A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, 380/480 VAC shunt trip, molded case circuit breakers

SHF3G6L8T, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 2000A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, current metering, RELT & ZSI features and 1500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEHD36800LIMR, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, motor ready for electrical operation, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

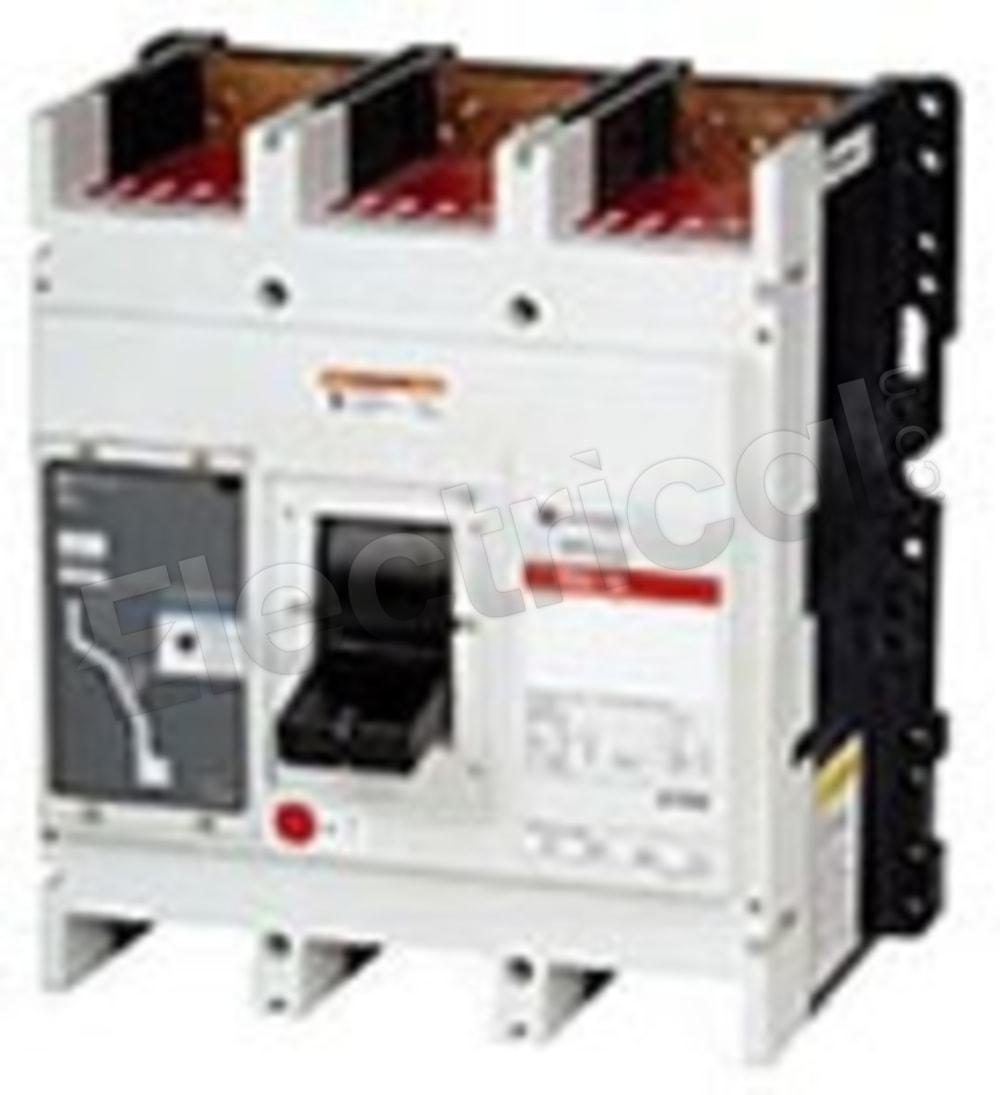

GRC325T36WP40, Cutler Hammer, Series G, type , 3P, 3PH, 2500A, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, complete with Digitrip RMS 310 trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, 1250-2500A adjustable rating plug, Solid State electronic, molded case circuit breakers

36953, Schneider Electric, Merlin Gerin, Compact, circuit breaker accessory, Neutral Sensors, 600A external neutral sensor, suitable for use with NSJ type molded case circuit breakers

PDG34KH250P3MJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 250A, High Override, 50kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

NB100N-3P-100A, Square D, Schneider Electric, Merlin Gerin, Compact, type , 3P, 3PH, 100A, IEC rated, 660/690V, 15kA@415V, standard interrupting capacity, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers
