PJF36250U43AAC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 2500A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 3A/3B auxiliary switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HDL36060U44XBKSHYP, Square D, PowerPact, type , 3P, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, micrologic ammeter non-interchangeable trip with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, complete with alarm switch and overcurrent trip switch, low-level, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

PXF361800LSZPL, Square D, Micrologic, type , 3P, 3PH, 1800A, 600V, 100kA@480V, high interrupting capacity, Bolt-On, complete with Micrologic non-interchangeable trip and padlock handle, LS - Long-Time and Short-Time standard trip functions and rating plug, lugs not included, Solid State electronic, molded case circuit breakers

1291C26G08, Westinghouse, Classic Mining Service circuit breakers, type , 3P, 3PH, 180A, 600V, 25kA@600V, standard interrupting capacity, Bolt-On, complete with 120V UVR, interchangeable trip, I - Instantaneous protection only, magnetic trip range 200-400A, lugs not included, Magnetic Only, molded case circuit breakers

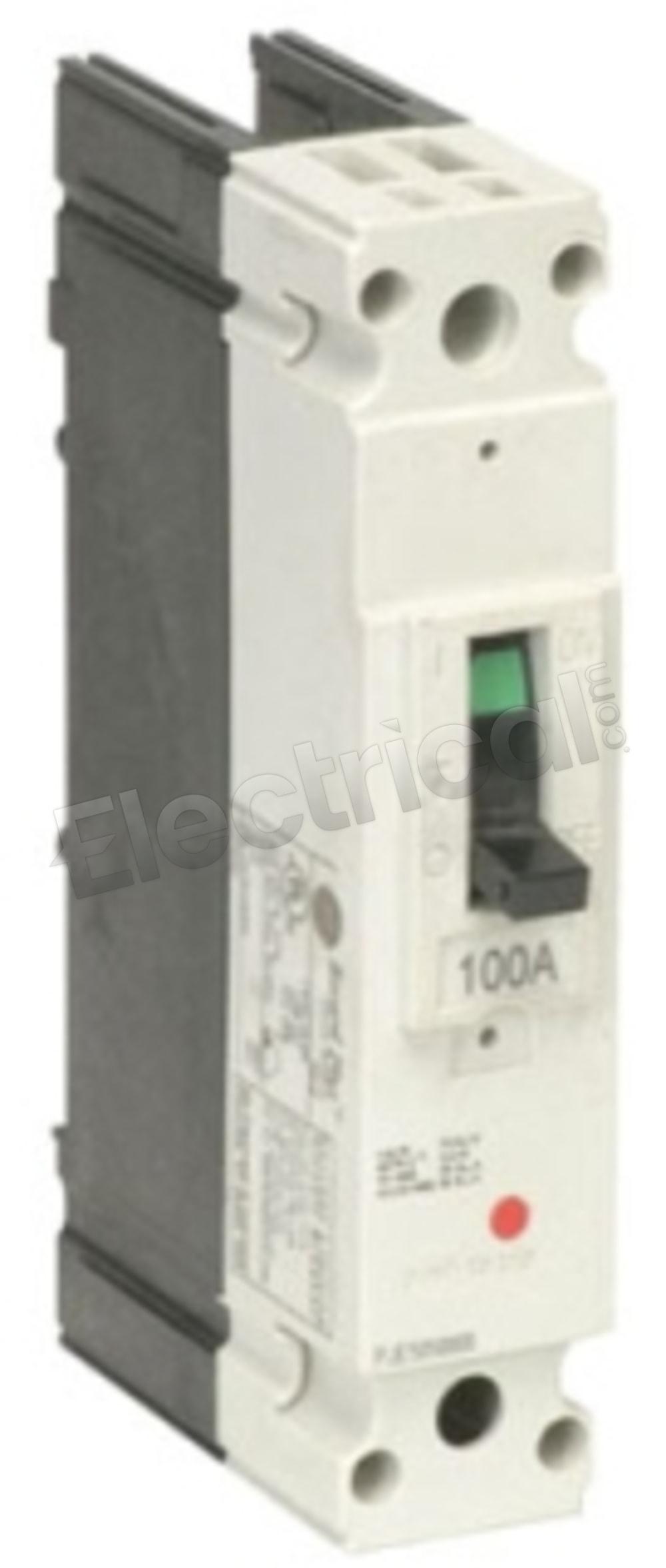

FBN16TE025RV General Electric Record Plus, type , FB100 frame, 1P, 1PH, 25A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, load side lug terminals and panel connections, fixed Thermal Magnetic, molded case circuit breakers

PKD36080CU41AAA, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 800A, 600V, 50kA@480V, UL listed, high interrupting capacity, Draw-Out, 100% rated, complete with 1A/1B auxiliary switch, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

PLL34120U73AE1, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Feed-Thru, complete with micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

75HL-3-3000A-MO-DO-LSIG, Federal Pioneer, H-3 Series, 3000A frame size, manually operated/Draw-Out, 3P, 3PH, 3000A, 600V, 200kA@480V, NEMA type L fuses, multiple trip options available, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, low voltage power air circuit breakers

HNH3D100L, Siemens, VL Series, type , NG Frame, 3P, 3PH, 1000A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, 100% rated, complete with LCD trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Digital Solid State Electronic molded case circuit breakers

PKP36100U63BE1AB, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 2A/2B auxiliary switch, micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

140G-H0F4-D11, Allen-Bradley, Bulletin 140G, type , 4P, 3PH, 110A, 600V, 100kA@480V, current limiting, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

PKP36120CU41ARD10, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1200A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with direct mounted standard black handle, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

UQFB125-2P, Unicorn, Milbank, QFB Series, type , 2P, 1PH, 125A, 240V, 10kA@240V, standard interrupting capacity, Bolt-On, complete with trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete; however, we do still stock them

PGP46100U63AE1RD10, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 1000A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with direct mounted standard black handle, micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers

HLL36080ABBHUD, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 208/277 VAC under voltage release (UVR), molded case circuit breakers

HGL36090AFBHSJYP, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 525/600 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0622NMNJ4YNADPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0722NMNH4NNYDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

HGA260202AABCUNYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 12 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

NPGF46080CU74AE1, Schneider Electric, Square D, PowerPact, type , 4P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

HJA36150U31XAABCSH, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, alarm switch, 380/480 VAC shunt trip, molded case circuit breakers

QJ22M100, Siemens, QJ Frame, type , 2P, 1PH, 100A, 240V, 10kA@240V, 50ºC, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

HDA260301AEBKSRYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 30A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 125 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDG62P2000E3XN, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 2000A, 100kA@480V, Bolt-On, no terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with relays, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated
