HGA260205AFURYP, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA36040AABEUAYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 40A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHD36600LSMR, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 600A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, motor ready for electrical operation, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA36015AFBCUDYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 15A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch, 208/277 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEF361200LSIGA8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 4A4B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA260304AFBESJYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 30A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, 525/600 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HLA36100AFBKSP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 48 VDC shunt trip, molded case circuit breakers

HJA260302BEURYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 30A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HLA36050AFBKSK, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 50A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VAC shunt trip, molded case circuit breakers

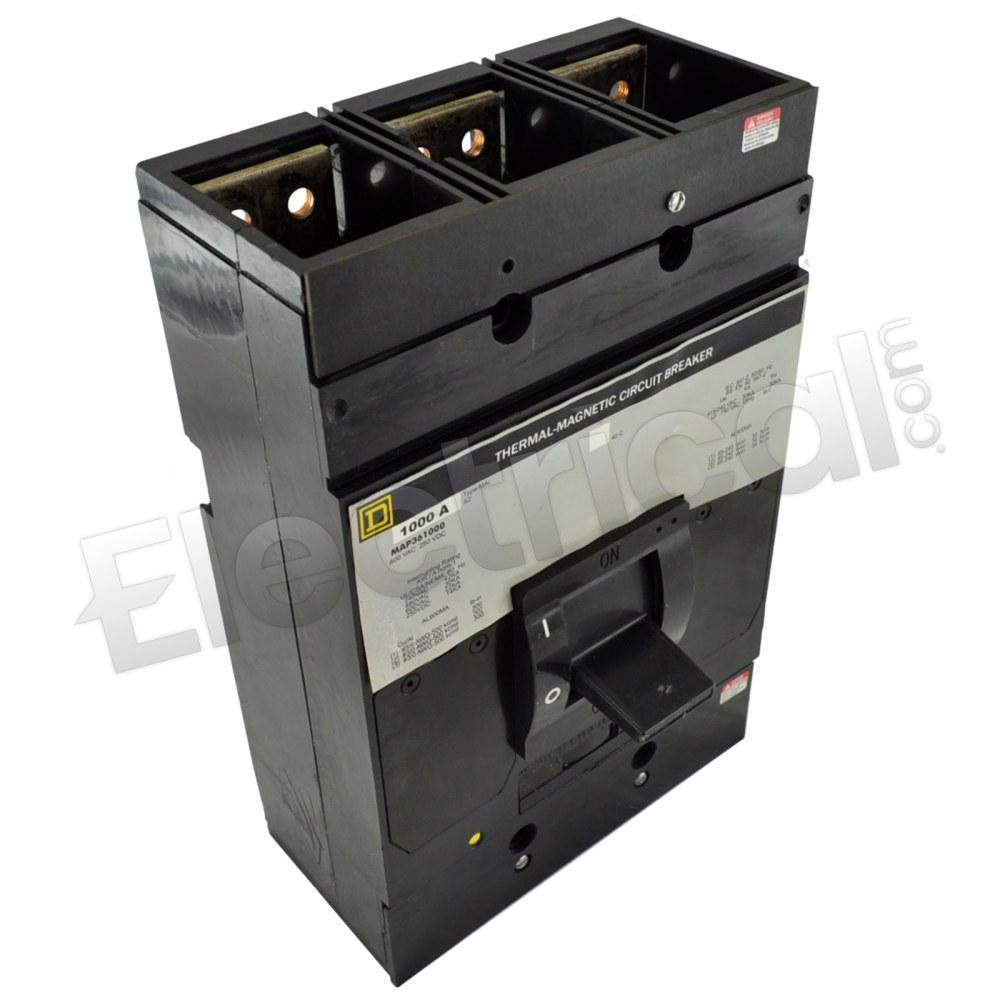

MAP3610001128, Square D, MAP Series, type , 3P, 3PH, 1000A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with 48Vdc undervoltage trip (UVR), non-interchangeable trip LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

HLA36080SN, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 80A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, complete with 12Vdc shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

NPJA36080CU63AE1, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase connection, 3PH, 800A, 600V, 65kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, 100% rated, complete with micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

NPKD36120CU41A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1200A, 600V, 50kA@480V, UL listed, high interrupting capacity, 100% rated, Draw-Out, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

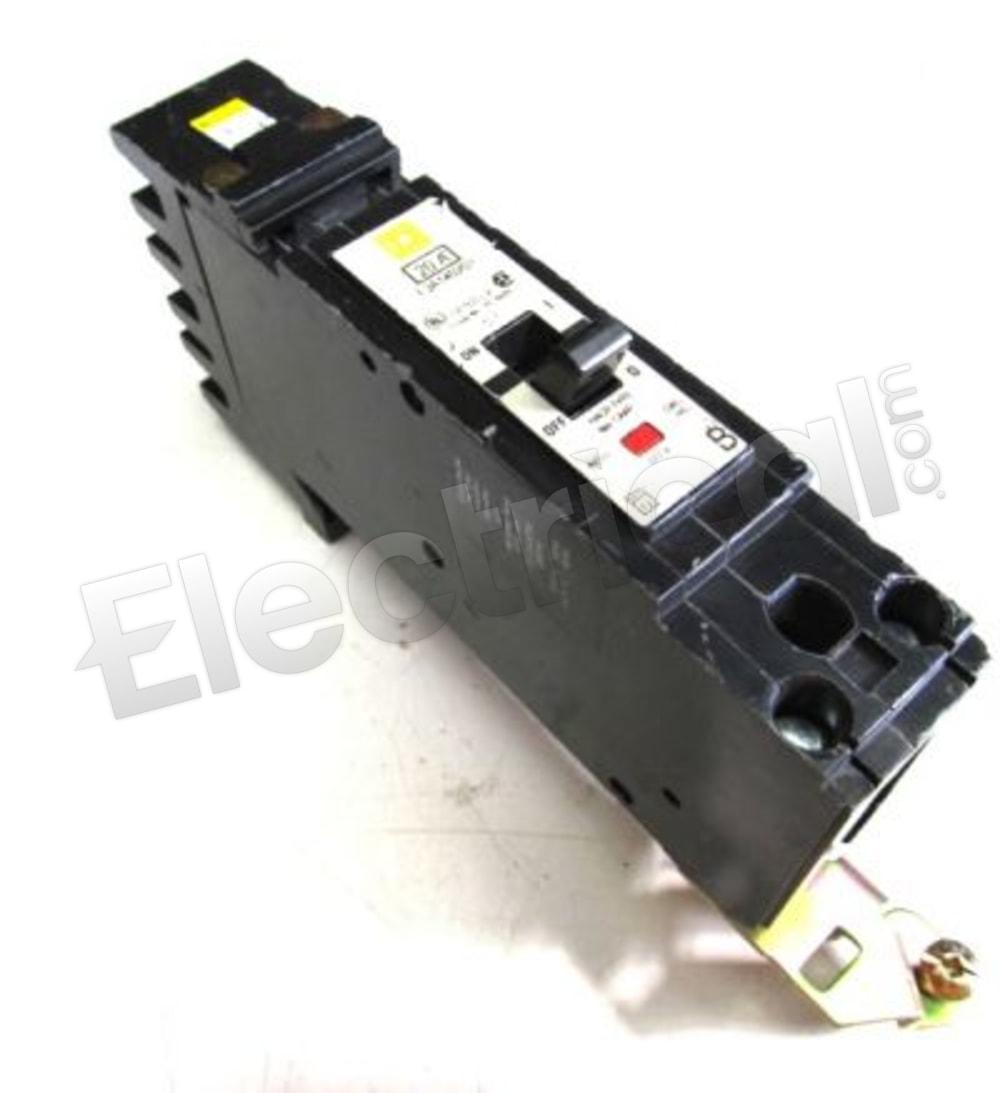

FDA120701, Schneider Electric, Square D, PowerPact, type , 1P, 1PH, 70A, 240V, 18kA@240V, A phase circuit configuration, standard interrupting capacity, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers

HGL36090AABHUAYP, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch low-level, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA261002AEBHSK, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 24 VAC shunt trip, molded case circuit breakers

JGA262503, Square D, PowerPact, type , 2P, B & A phase connection, 1PH, 250A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

SEHF36200ES9D4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 200A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HGA36040BKUAYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 40A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, low-level, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJA36020AFBESN, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 20A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, 12 VDC shunt trip, molded case circuit breakers

LRK36400CU33X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 200kA@480V, UL listed, reverse I-Line Style Plug-In, 100% rated, suitable for reverse connection, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

NPGM36040CU44A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line side lug terminals, Solid State electronic, molded case circuit breakers

HGA260205AABKUDYP, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, low-level, 208/277 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PKP36080CU63BE1, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers
