MPA31F0802203, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, 48V dc motor operator, 48V dc closing coil and 220/250V ac undervoltage trip, 3P, 3PH, 800A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

MDN4083LEA0422NMNENNNRDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HMCP070M2S33, Cutler Hammer, Eaton, Westinghouse, Series C, type , F Frame, 3P, 3PH, 70A, 600V, 65kA@480V, Feed-Thru, complete with right-pole mounted 380-440Vac or 220-250Vdc right side shunt trip, non-interchangeable trip with I - Instantaneous Protection Only, standard line & load side lug terminals, MCP, motor circuit protector, magnetic range 210-700A, motor FLA 16.1-59.1A, Magnetic Only, molded case circuit breakers

HJL36150M74BESN, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, Magnetic Only, complete with alarm switch and overcurrent trip switch, 12 VDC shunt trip, molded case circuit breakers

HJL36125BHUJYP, Square D, PowerPact, type , 3P, 3PH, 125A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch low-level, 525/600 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0322NMNE4YNYMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

PDG32M0600P4DN, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 600A, 65kA@480V, Bolt-On, no lug terminals, complete with PXR25 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SSB1G2Z8C, General Electric, Power Break II, type , 3P, 3PH, 600V, 400A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 800A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, current metering & ZSI features and 200A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

HJA36100U44XABUR, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 2A/2B aux switch, 125 VDC under voltage release (UVR), molded case circuit breakers

HDA260304BEUS, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 30A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, 250 VDC under voltage release (UVR), molded case circuit breakers

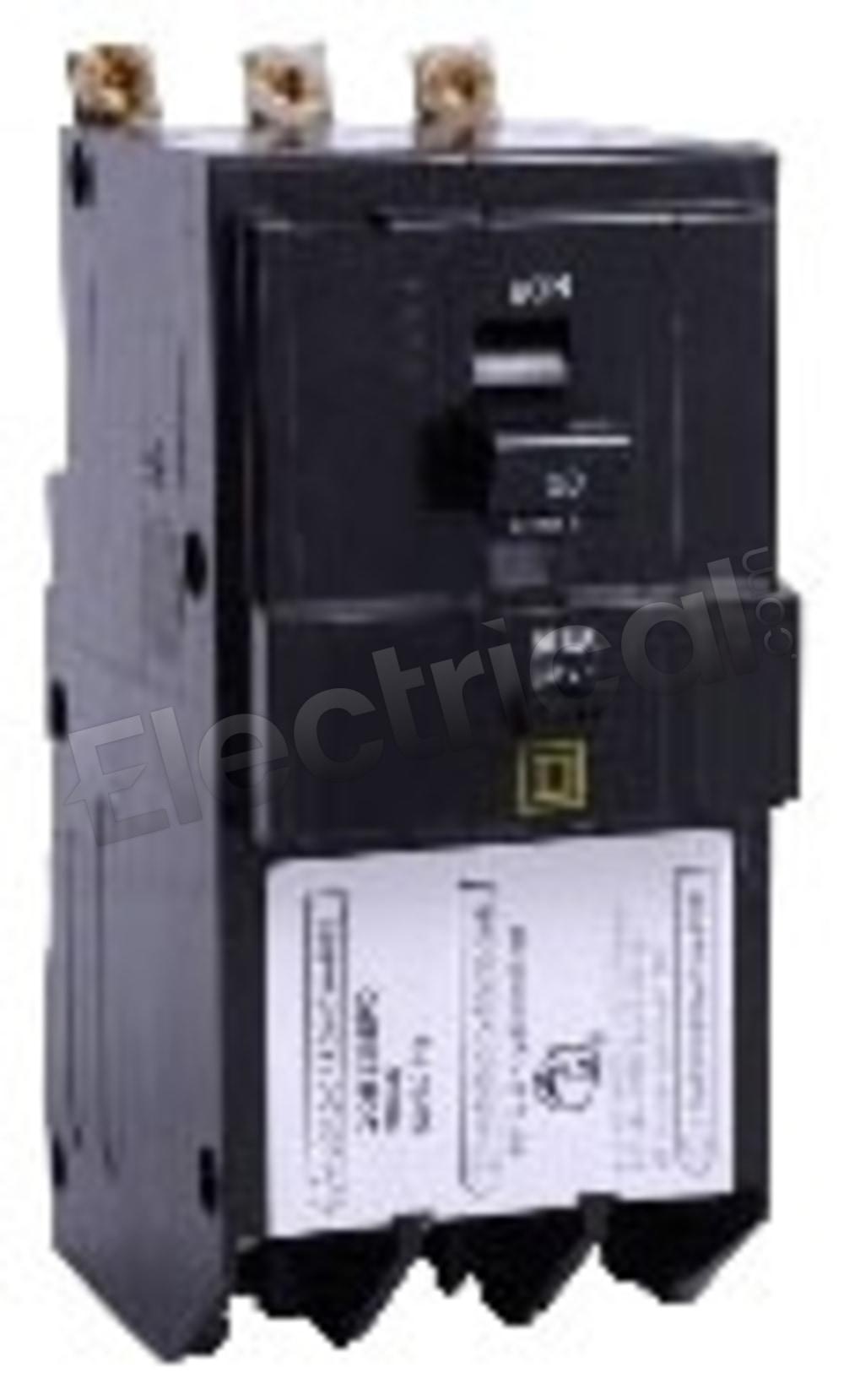

QOB340EPD, Square D, QOB Series, type , 3P, 3PH, 40A, 120V, 10kA@120V, Bolt-On, Thermal Magnetic molded case circuit breakers with class B 30mA ground fault protecting, suitable for QOB Series load centers

WLL2D312DU, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1200A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFM76 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 300A rating plug, Solid State electronic, low voltage insulated case circuit breakers

FCV36TE090R1 General Electric Record Plus, type , FC100 frame, 3P, 3PH, 90A, 600V, 35kA@480V, standard interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, fixed Thermal Magnetic, molded case circuit breakers

SEHD362000LIGES2D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 2000A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

E2K3400MNWS49, Cutler Hammer, Eaton, Westinghouse, Series C, E2 mining service breakers, type , 3P, 3PH, 400A, 600V, 250Vdc, 25kA@600V, standard interrupting capacity, Bolt-On, complete with mag only trip, left-pole mounted 48-60Vac or Vdc 50/60Hz, left side mount shunt trip, I - Instantaneous protection only, magnetic range 1500-3000A lugs not included, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

HDA260204AEBEUK, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 20A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 24 VAC under voltage release (UVR), molded case circuit breakers

PDF34FH400P9DN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 400A, High Override, 25kA@480V, 100% UL, Bolt-On, no lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0722NMNF2NNNNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SED36600LIES8A4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 600A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

LV429845 Schneider Electric Compact NSX, type , 3P, 3PH, 100A, 690V, 50kA@415V, Bolt-On, complete with NSX100N frame and 3 pole TM32D trip unit, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

SHF1G2M2B, General Electric, Power Break II, type , 3P, 3PH, 600V, 400A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 800A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering, RELT, modbus communication & ZSI features and 150A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SHB3G661U, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 2000A frame rating, complete with Entelliguard trip, LI - Long-Time and Instantaneous trip functions, full metering, modbus communication & ZSI features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PDF33KH400P9YJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 50kA@480V, 100% UL, Feed-Thru, line & load side lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with Modbus RTU, CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SSD4G6L2P, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 1600A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering, RELT & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems
