PDG63P2500E5CM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 2500A, 100kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault with ARMS trip functions with relays & CAM option, Solid State electronic, molded case circuit breakers; globally rated

PDG32F0125P4DL, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 125A, 25kA@480V, Bolt-On, load side lug terminals, complete with PXR25 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG6XPXR32000E2W, Eaton, Cutler Hammer, Power Defense, Power Xpert Release (PXR) trip units and programmers, 3P, 600V, 2000A, Solid State protection, PXR20 with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays, modbus and ZSI options, suitable for globally rated PDG,PDF Frame 6 circuit breakers

EEKDC320225SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 225A, ABC phase connection, 240V max, Copper, Single Branch mounting style, suitable for use with KD,HKD,KDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

KG3400WS51, Cutler Hammer, Eaton, Westinghouse, Series C, type , 3P, 3PH, 400A, 600V, 14kA@480V, standard interrupting capacity, Bolt-On, suitable for reverse feed applications, magnetic pickup range 1000-2000, complete with left-pole mounted 48-60Vac/dc, 50/60Hz right side mount shunt trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, engine generator molded case circuit breakers

WLC2D316NB, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1600A, 600V, 150kA@480V, UL listed, very high interrupting capacity, Draw-Out, complete with solid state ETU727 programmer with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 800A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PDG32GH400E2NJ, Cutler Hammer, Eaton, Power Defense, type , 600A frame, 1PH, 2P, 600V, 400A, high override, 35kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions , Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

LKE-25-MO-DO-LSI, ABB, LK Series, type , 2500A frame size, manually operated/Draw-Out, 3P, 3PH, 2500A current sensor ratings available, 600V, 100kA@480V, originally supplied with Power Shield Type LSS solid-state trip device but can also be retrofitted with a modern Solid State electronic trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions, low voltage power air circuit breakers

MDN4083LEA0722NMNK2NNKCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0822NMNH2NNNMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

MDN4083LEA0422NMNENYMNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed metal padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

PDD22G0040VFFN, Eaton, Cutler Hammer, Power Defense, type , 50ºC, 1PH, 2P, 240V, 40A, 65kA@240V, Bolt-On, lugs not included, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; IEC certification; non-UL listed

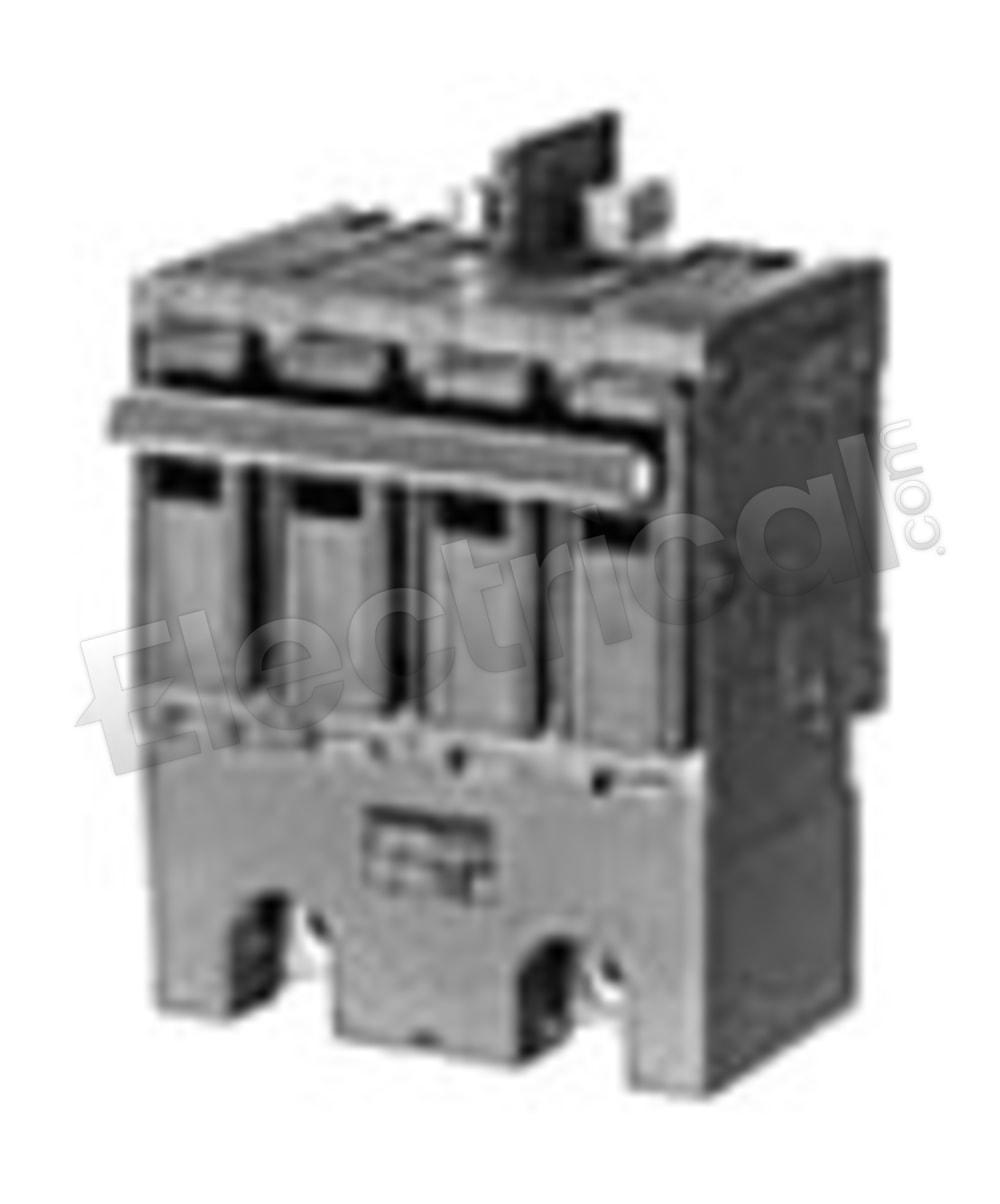

HQ2100BH Siemens Q Series, type , 2P, 1PH, 100A, 120/240V, 100kA@240V, very high interrupting capacity, suitable for use as "main", non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Plug-In, Thermal Magnetic molded case circuit breakers

140G-KTH4-D40, Allen-Bradley, Bulletin 140G, trip units and programmers, type , 4P, 400A, 600V, LSI - Long-Time, Short-Time and Instantaneous trip functions, suitable for use with 140G-K 400A Solid State, molded case circuit breakers

E4L-A36-4P-3600A-BO-EO-LI, ABB, EMax, type , 4P, 3PH, 3600A frame, 3600A rating plug, 600V, 125kA@480V, fixed/Bolt-On, electrically operated, Solid State electronic with LI - Long-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

MDN4083LEA0622NMNENYNKMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SHB1G3A8I, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 800A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, current metering & RELT features and 450A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

WLL1D308FR, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 800A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU755 programmer, LSI - Long-Time, Short-Time and Instantaneous trip functions and 350A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SGLL3604L4Z6 General Electric Spectra Series, type , 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and ZSI, zone selective interlocking trip functions and advanced metering, modbus & waveform capture communication features, Solid State electronic, molded case circuit breakers

LA2300PR, Westinghouse, TRI-PAC, type , 2P, 1PH, 300A, 600V, 200kA@480V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

MDN4083LEA0422NMNC2YNYDPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0522NMNR4ENRNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

PEEE4ATEJ0150, General Electric, GuardEon, type , 3PH, 4P, 600V, 45-150A, 35kA@480V, 100% UL rated, front connection/Feed-Thru, toggle mechanism, complete with PremEon G advanced metering interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements
