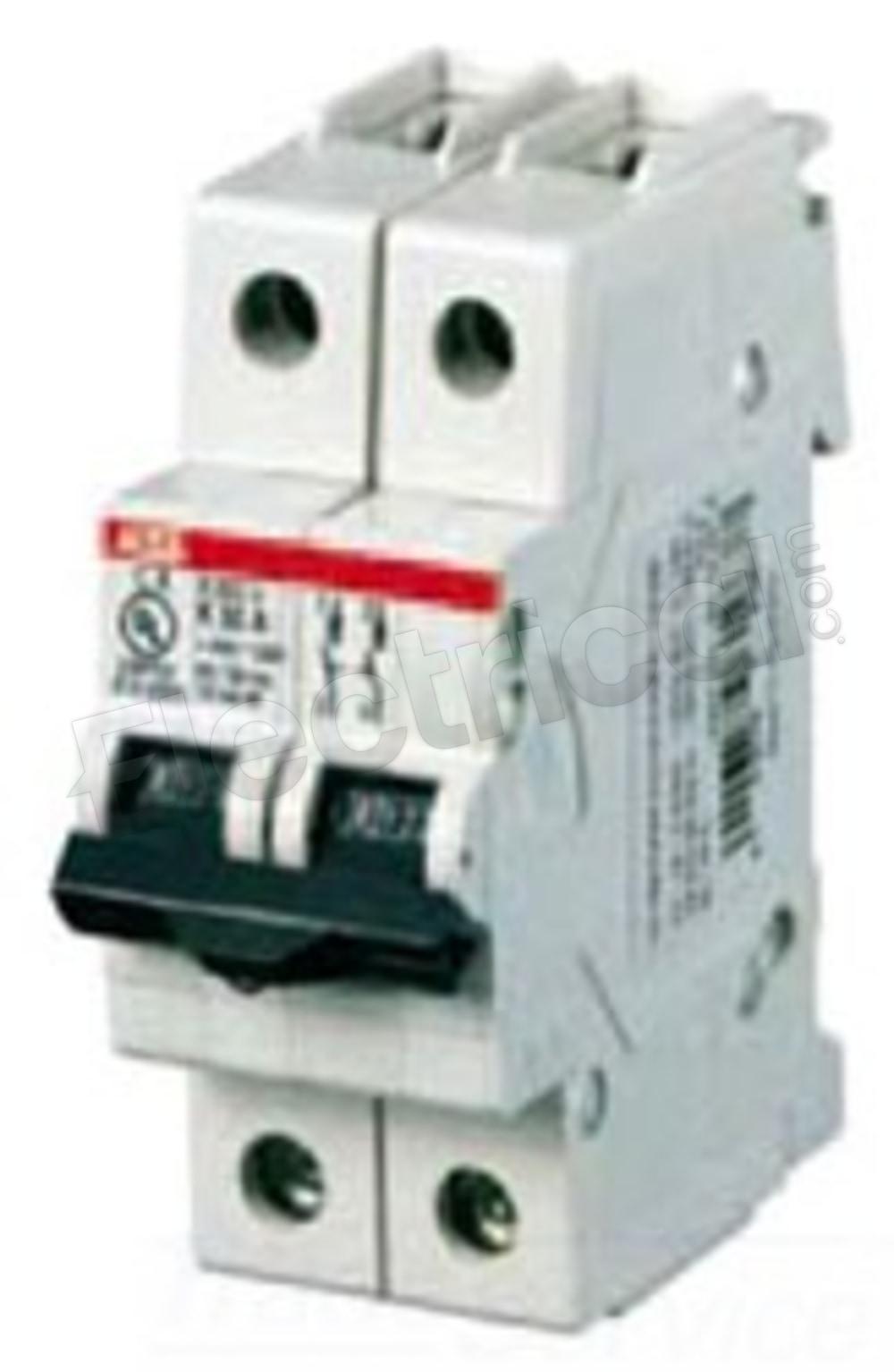

S202U-Z32, ABB, S 200 U Series, type , 2P, 1PH, 32A, 240Vac, 10kA@240Vac, standard interrupting capacity, current limiting, DIN rail mounted, Feed-Thru, suitable for reverse feed, UL/CSA/IEC approval, branch circuit protection, Z trip characteristic, Thermal Magnetic trip functions, Thermal Magnetic, miniature molded case circuit breakers and supplemental protectors

SEF362500LIES8D4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 2500A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0122NMNE4YNHMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

NEB1B020L Siemens NEB Series, type , 1P, 1PH, 20A, 277V, 35kA@277V, standard interrupting, 40ºC, Feed-Thru, complete with line & load side lug terminals, Thermal Magnetic molded case circuit breakers

PDG23P0060P3DK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 60A, 100kA@480V, Bolt-On, line side lug terminals, complete with Xpert Release PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays, modbus and CAM, Solid State electronic, molded case circuit breakers; globally rated

T7L1000BW-4, ABB, SACE Tmax, type , 4P, 3PH, 1000A, 600V, 100kA@480V, 120kA@415V, Bolt-On, PR231 trip, LS - Long-Time and Short-Time trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers

SED36300LSES6E8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete

WLL2D312QE, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1200A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLGFA48, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and 1200A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0522NMNG2ENLNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, operations counter & Castell key interlock, Solid State, low voltage power insulated case circuit breakers

SEHD36350ES5F8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDA36060SJ, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 60A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 525/600 VAC shunt trip, molded case circuit breakers

SHF2G5M2U, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering, RELT, modbus communication & ZSI features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

HJL36050M72ABBEUPYP, Square D, PowerPact, type , 3P, 3PH, 50A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 84-546A, Magnetic Only, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 48 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDL26040AFBHUH, Square D, PowerPact, type , 2P, 1PH, 40A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 380/480 VAC under voltage release (UVR), molded case circuit breakers

PDG33N0250E5XJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 250A, 100kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SPB100-3P-1600C-EO-BO-LSIG, Cutler Hammer, Systems Pow-R, type , 2000C compact frame size, 3P, 3PH, 1600A, 600V, 100kA@480V, standard interrupting capacity, Bolt-On, electrically operated, available with Pow-R Trip, Pow-R Trip 7, Digitrip RMS 510, 610, 810, 910, Digitrip OPTIM 750 and 1050, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers; these breakers are obsolete, however we still stock them

PDG33M0125P3MK, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 125A, 65kA@480V, Bolt-On, line side lug terminals, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PKL36080U41AE1RE10, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 800A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with door mounted standard black handle, modbus communications, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

PKP36100U64BE1, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0122NMNC4YNRDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

MDN4083LEA0222NMNE4ENNMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions & load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

HLL36125AABCUNYP, Square D, PowerPact, type , 3P, 3PH, 125A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 12 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

NRKF36080CU31A, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

MDN4083LEA0322NMNJNNNKNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers
