HLA36060ABBCUDYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 60A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch, 208/277 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HMCP150T4S47, Westinghouse, Eaton, Cutler Hammer, Series C, type , F Frame, 3P, 3PH, 150A, 600V, 65kA@480V, Feed-Thru, complete with right-pole mounted 110-125Vdc left side shunt trip, non-interchangeable trip with I - Instantaneous Protection Only, standard line & load side lug terminals, MCP, motor circuit protector, magnetic range 450-1500A, motor FLA 34.6-126.7A, Magnetic Only, molded case circuit breakers

MDN4083LEA0322NMNENYNNDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

FG3080S09, Cutler Hammer, Westinghouse, Eaton, Series C, type , 3P, 3PH, 80A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, suitable for reverse feed applications, fixed magnetic pickup range, complete with left-pole mounted 208-380Vac or 110-127Vdc, 50/60Hz left side mount shunt trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, engine generator molded case circuit breakers

HGA260154BCSP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 15A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch, 48 VDC shunt trip, molded case circuit breakers

HGA36150U33XAFSK, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 2A/2B low-level aux switch, 24 VAC shunt trip, molded case circuit breakers

HMCP250J5S07, Cutler Hammer, Westinghouse, Eaton, Series C, type , J Frame, 3P, 3PH, 250A, 600V, 35kA@480V, Feed-Thru, complete with left-pole mounted 48-60Vac right side shunt trip, I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 875-1750A, Magnetic Only, molded case circuit breakers

PJP36120CU44ABC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 1A/1B alarm switch, micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

PGF46080U33AAA, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with 1A/1B auxiliary switch, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

HGA36060U33XAEUA, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, 120 VAC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0322NMNG4YCNMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

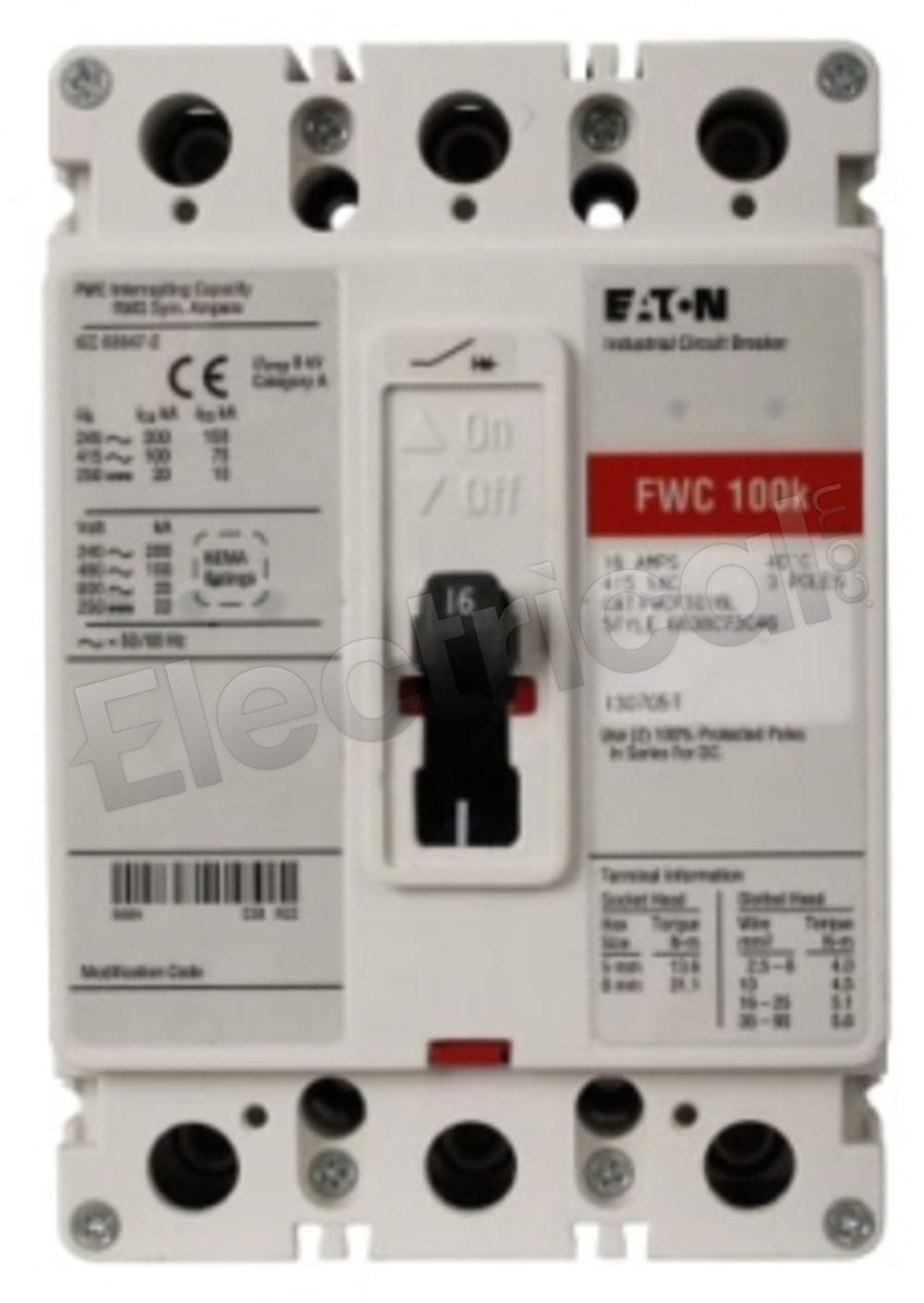

FWCF3100L, Cutler Hammer, Eaton, Westinghouse, Series C, type , 3P, 3PH, 100A, 690V, 100kA@415V, ultra high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0422NMNF4NCNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

SEHF36400LIT1, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 150kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 120VAC shunt trip & 120VAC undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SED361200LIGES2, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HJA36100U44XAFUS, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 2A/2B low-level aux switch, 250 VDC under voltage release (UVR), molded case circuit breakers

HDL26030BKUDYP, Square D, PowerPact, type , 2P, 1PH, 30A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, low-level, 208/277 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDG33K0400D3MN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 400A, 50kA@480V, Bolt-On, no lug terminals, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

JGC316032GVH08, Cutler Hammer, Series G, type , 3P, 3PH, 160A, 600V, 100kA@480V, current limiting, for Marine applications 50°C, not UL listed, Feed-Thru, complete breaker with 310+ electronic, non-interchangeable trip unit and line & load side lug terminals, Solid State, molded case circuit breakers

SKPP3612L5X2 General Electric Spectra Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, extra high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIA, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and basic metering and modbus communication features, Solid State electronic, molded case circuit breakers

MDN4083LEA0522NMNF4NNKDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HJ2B250, ITE, HJ Series, type , 2P, 1PH, 250A, 600V, 65kA@480V, high interrupting capacity, 40°C, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete, however we do still stock them

PJF36080CU74BE1AA, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 1A/1B auxiliary switch, micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

WLL2F316AH, Siemens, WL Series, type , frame size II, fixed mount, 3P, 3PH, 1600A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU745 programmer + WLLCD48 LCD display + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 200A rating plug, Solid State electronic, low voltage insulated case circuit breakers
