75H-2-3000A-MO-DO-LS, Federal Pioneer, Federal Pacific, H-2 Series, type , 3000A frame size, manually operated/Draw-Out, 3P, 3PH, 3000A, 600V, 65kA@480V, available with multiple trip unit options, LS - Long-Time and Short-Time trip functions, Solid State electronic, low voltage power air circuit breakers

MDN4083LEA0622NMNF2YNHNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

140G-J6F4-D15, Allen-Bradley, Bulletin 140G, type , 4P, 3PH, 150A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

PDG32GH400E5XK, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 1PH, 2P, 600V, 400A, high override, 35kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0322NMNJNENKDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

TLC4RHB, General Electric, F225 Line, circuit breaker accessory, Operating Handles, integral handle mechanism, horizontal mounting, suitable for use with THLC2,THLC4,TLB4 type molded case circuit breakers

MDN4083LEA0222NMNN2ENADPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SKLC3608L3PX General Electric Spectra Series, type , 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI, LSI - Long-Time, Short-Time and Instantaneous and ZSI, zone selective interlocking & RELT, reduced energy let-through and basic metering communication features, Solid State electronic, molded case circuit breakers

MDN4083LEA0722NMNE2YHNCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SHB1G182A, General Electric, Power Break II, type , 3P, 3PH, 600V, 200A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 800A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, full metering, RELT, modbus communication, relays & ZSI features and 100A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0522NMNA2YNYDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDG33KH400D5MN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 50kA@480V, Bolt-On, no lug terminals, complete with PXR20D trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SHD6G9H72, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & relays features and 3000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MPA42F40N0015, General Electric, M-PACT, type , frame size 2, manually operated, 5 N.O- 3 N.C. Auxiliary switches, Mpro-27 trip unit, 24/30V dc shunt trip and 30/48V dc undervoltage trip with delay, 4P, 3PH, 4000A, 690V, 50kA@415V, fixed/Bolt-On, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, insulated case circuit breakers

MDN4083LEA0122NMNRNENRNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

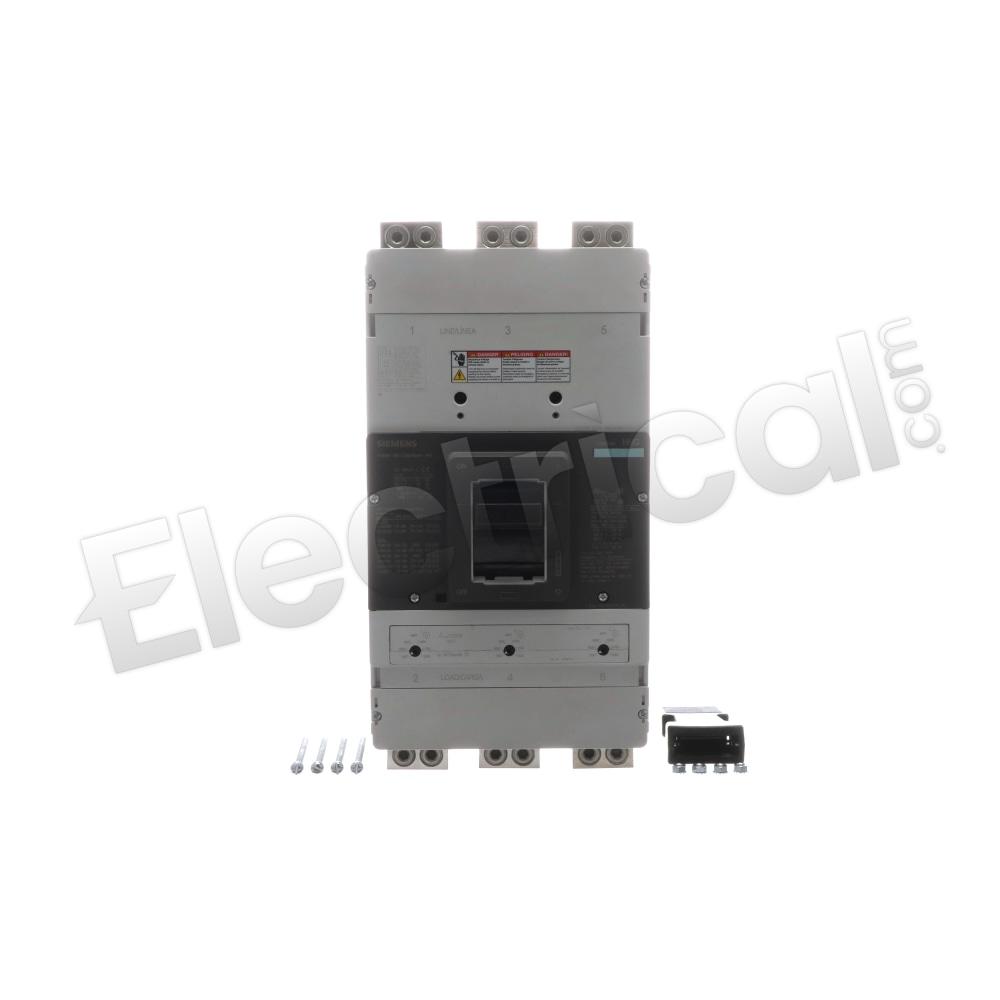

LNG3B800B, Siemens, VL Series, type , 3P, 3PH, 800A, 600V, 100kA@480V, very high interrupting capacity, 40ºC, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

SPB150-3P-2500A-EO-DO-LSG, Cutler Hammer, Systems Pow-R, type , 4000A frame size, 3P, 3PH, 2500A, 600V, 150kA@480V, standard interrupting capacity, Draw-Out, electrically operated, available with Pow-R Trip, Pow-R Trip 7, Digitrip RMS 510, 610, 810, 910, Digitrip OPTIM 750 and 1050, LSG - Long-Time, Short-Time and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers; these breakers are obsolete, however we still stock them

SSD3G6E9U, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 2000A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, RELT & modbus communication features and 1600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

3VL3720-2SE36-0AA0, Siemens, SENTRON 3VL, type , 1P, 1PH, 200A, 690V, 70kA@415V, Bolt-On/fixed mount with lug terminal, complete with LSI - Long-Time, Short-Time and Instantaneous trip functions, ETU20 Solid State electronic trip, molded case circuit breakers

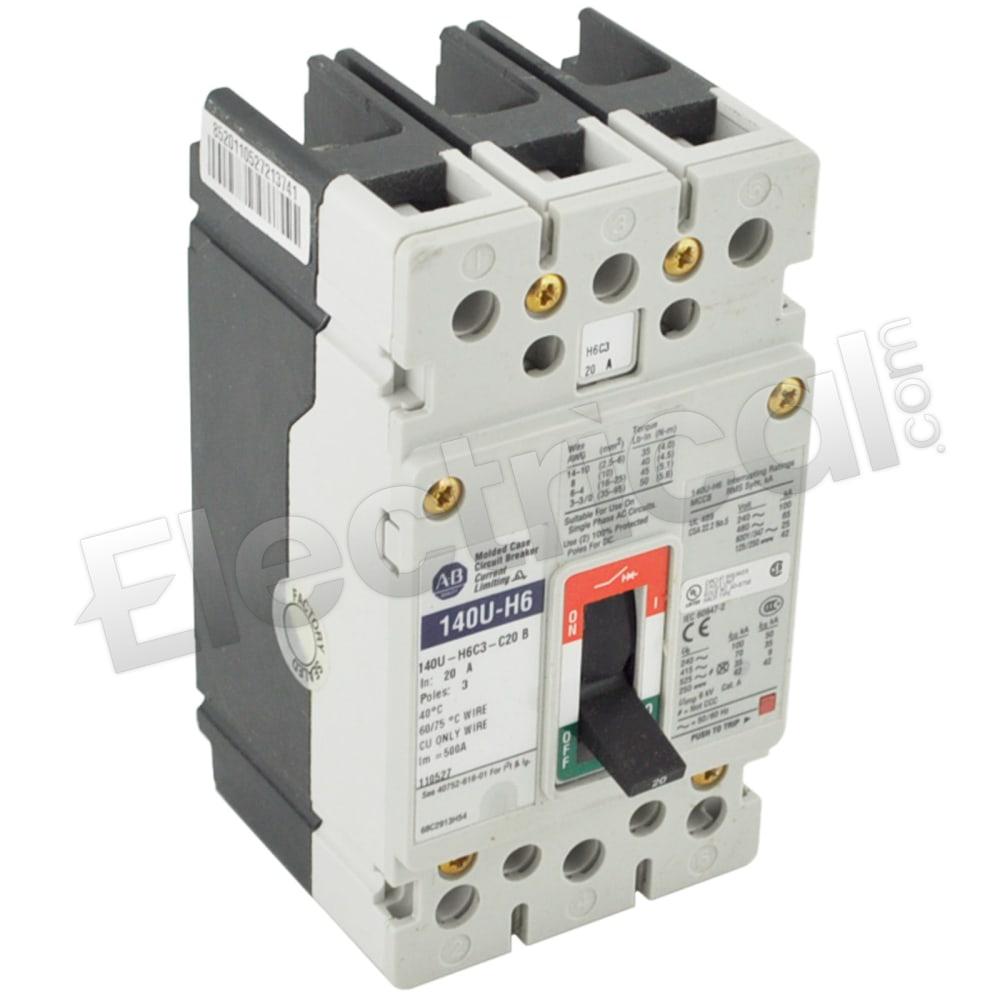

140U-H0C3-C15, Allen-Bradley, Bulletin 140U, type , 3P, 3PH, 15A, 600V, 100kA@480V, current limiting, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

MDN4083LEA0822NMNENYNADAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0822NMNG4YNACCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

PDF33MH400P8DN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 65kA@480V, 100% UL, Bolt-On, no lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

K1600-EO-BO-LSIG, ABB, K-Line, type , 1600A frame size, electrically operated/Bolt-On, 3P, 3PH, 1600A, 600V, 50kA@480V, originally supplied with OD electro-mechanical overcurrent trip device, SS, MPS or MPS-C trip device but can also be retrofitted with a modern Solid State electronic trip unit with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power air circuit breakers
