SED36800LIGES6D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 800A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

B1NQ1B6T, Noark Electric, UL 489, type , 1PH, 1P, 120/240V, 6A, 10kA@240V, Bolt-On quick connect terminals load side, Thermal Magnetic, din rail mounted molded case circuit breakers

MDN4083LEA0522NMNR4ENNDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, with shutters, pre-wired

MHL367001027, Square D, MHL Series, type , 3P, 3PH, 700A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, complete with 24Vdc shunt trip, non-interchangeable trip LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

HGL36020AEBCUJ, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, 525/600 VAC under voltage release (UVR), molded case circuit breakers

PDG24K0080TFFN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 100% neutral, 600V, 80A, 50kA@480V, Bolt-On, no terminals, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

S09QJ0R3, Siemens, QJ Series, type , shunt trip, 48Vdc, suitable for use with QJ2,QJH2,QJ2H,HQJ,HQJ2H molded case circuit breaker frame types

HDA260501BKUPYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 50A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with alarm switch and overcurrent trip switch, low-level, 48 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HGA36060U43XAEBKUOYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 24 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDG32FH250E2XJ, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 1PH, 2P, 600V, 250A, high override, 25kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

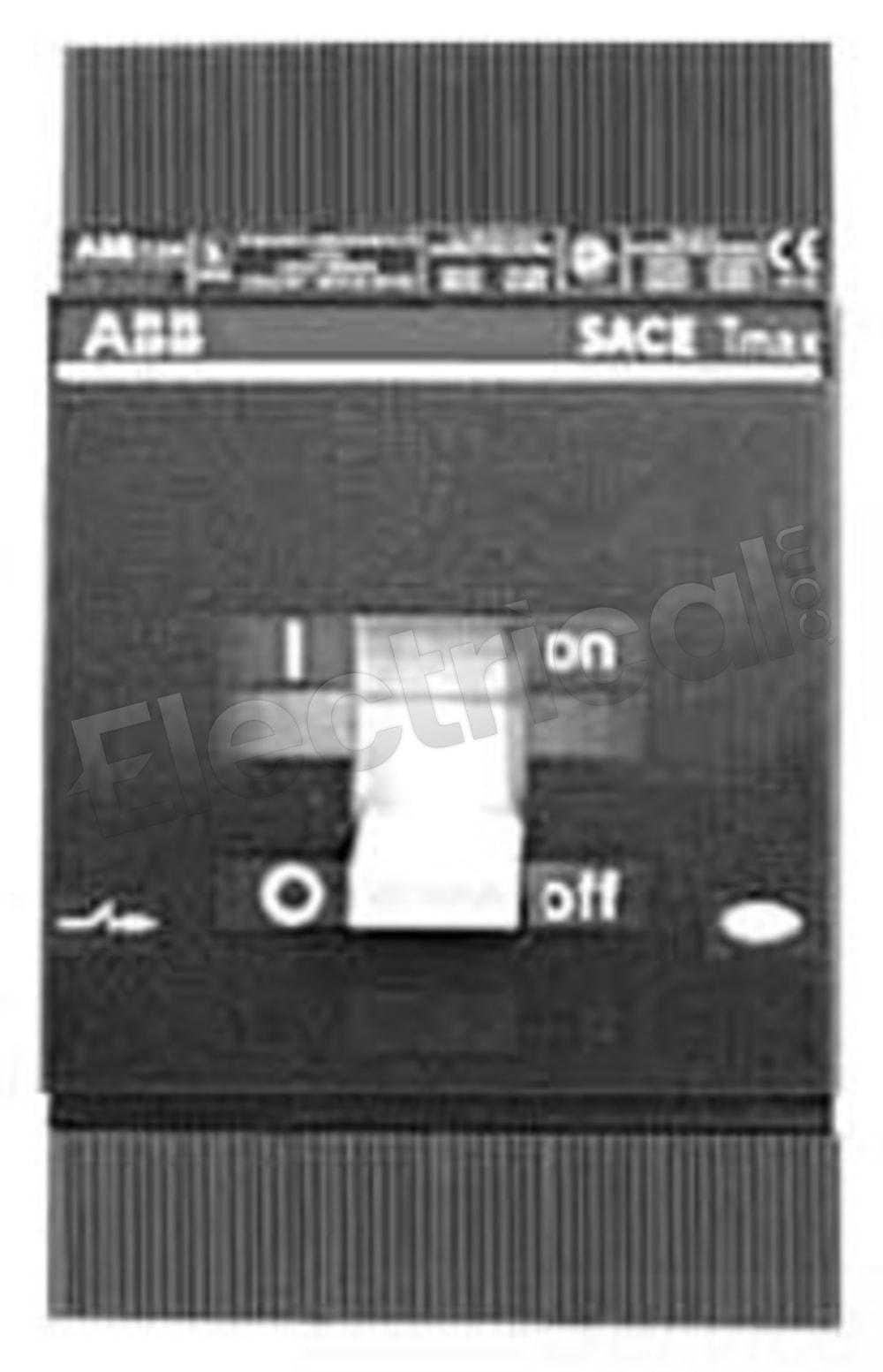

TS3LQ100TW, ABB, SACE Tmax, type , 3P, 3PH, 100A, 600V, 85kA@480V, 85kA@415V, 100% rated, Bolt-On, suitable for reverse feed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0722NMNA2NNANAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

PDG32KH400E2MK, Eaton, Cutler Hammer, Power Defense, type , 600A frame, 1PH, 2P, 600V, 400A, high override, 50kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HLA36100AEBEUD, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 208/277 VAC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0122NMNHNNCNMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

SSD25B220H, General Electric, Power Break II, type , 3P, 3PH, 600V, 2500A frame, with 2000A rated trip, 65kA@480V, standard interrupting capacity, Draw-Out, complete with MicroVersaTrip Plus programmer trip device, high-range instantaneous protection, Solid State, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

E6V-A50-4P-3600A-DO-EO-LSIG, ABB, EMax, type , 4P, 3PH, 5000A frame, 3600A rating plug, 600V, 125kA@480V, Draw-Out, electrically operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

HDA261504AEBCSJ, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, 525/600 VAC shunt trip, molded case circuit breakers

PKF36120CU63BE1BC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1200A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 1A/1B alarm switch, micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

SEF36200LIGA4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 200A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HNH2C120L, Siemens, VL Series, type , NG frame, 2P, 1PH, 1200A, 600V, 65kA@480V, high interrupting capacity, 50°C, Feed-Thru, 100% rated, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

PJM36025CU64AE1AC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 250A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line side lug terminals, Solid State electronic, molded case circuit breakers

PDG32F0125D4DL, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 125A, 25kA@480V, Bolt-On, load side lug terminals, complete with PXR20D ARMS trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HLL36080ABBHUPYP, Square D, PowerPact, type , 3P, 3PH, 80A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 48 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers
