MPA42F3202320, General Electric, M-PACT, type , frame size 2, manually operated, 5 N.O- 3 N.C. Auxiliary switches, 48V dc motor operator, 110/130V dc/ac closing coil and 48V dc shunt trip, 4P, 3PH, 3200A, 690V, 50kA@415V, fixed/Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

PKL36025CU73AE1BC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 250A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with 1A/1B alarm switch, micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

SEHF361600LIES2D5, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1600A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

609905-T705, ABB, Power Shield trip units and programmers, type , 2000A-3000A, suitable for use with K-Line K3000 low voltage power air circuit breakers

LGC360035WH08, Cutler Hammer, Series G, type , 3P, 3PH, 600A, 600V, 100kA@480V, current limiting, UL listed for Marine applications 40°C, Bolt-On, complete with interchangeable trip, LSG - Long-Time, Short-Time and Ground Fault trip functions, lugs not included, Solid State electronic molded case circuit breakers

MDN4083LEA0622NMNA2YHNDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HLL36125AFBESL, Square D, PowerPact, type , 3P, 3PH, 125A, 600V, 100kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, 48 VAC shunt trip, molded case circuit breakers

HGA36050ABBHSVYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 50A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 60 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

FDH36TG125GD General Electric Record Plus, type , FDH160 frame, 430363, 3P, 3PH, 125A, 690V, 80kA@415V, Feed-Thru, complete with interchangeable LTMD trip, LI - Long-Time and Instantaneous trip functions, generator Thermal Magnetic, molded case circuit breakers

SEF36300LSIGET4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 300A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SBA0808D, Siemens, SB Series, type , 3P, 3PH, 1200A frame, rated for 800A max, 600V, 65kA@480V, alternate interrupting rating, Draw-Out, Solid State electronic, insulated case circuit breakers

SEF362000LIES3F4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 2000A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HJL36150M74ABBESVYP, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, Magnetic Only, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 60 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA36050AEBEUAYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 50A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 120 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEF361800LSES8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HGL26060ABBEUH, Square D, PowerPact, type , 2P, 1PH, 60A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 380/480 VAC under voltage release (UVR), molded case circuit breakers

HGA260205AEURYP, Square D, PowerPact, type , 1PH, 2P, C & A phase connection, 20A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0122NMNC2ENACPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

LGH463032WVH09, Cutler Hammer, Series G, type , 4P, 3PH, 630A, 600V, 65kA@480V, high interrupting capacity, for Naval applications 50°C, not UL listed, Bolt-On, complete with interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic molded case circuit breakers

SHD5G824W, General Electric, Power Break II, type , 3P, 3PH, 600V, 3000A current sensor rating, 150kA@480V, high interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, current metering, RELT, modbus communication & ZSI features and 2000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PDF63N2000D2MM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 2000A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

PDG34F0125E5WN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 125A, 25kA@480V, Bolt-On, no lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PJM36040CU31ARE10, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with door mounted standard black handle, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, Solid State electronic, molded case circuit breakers

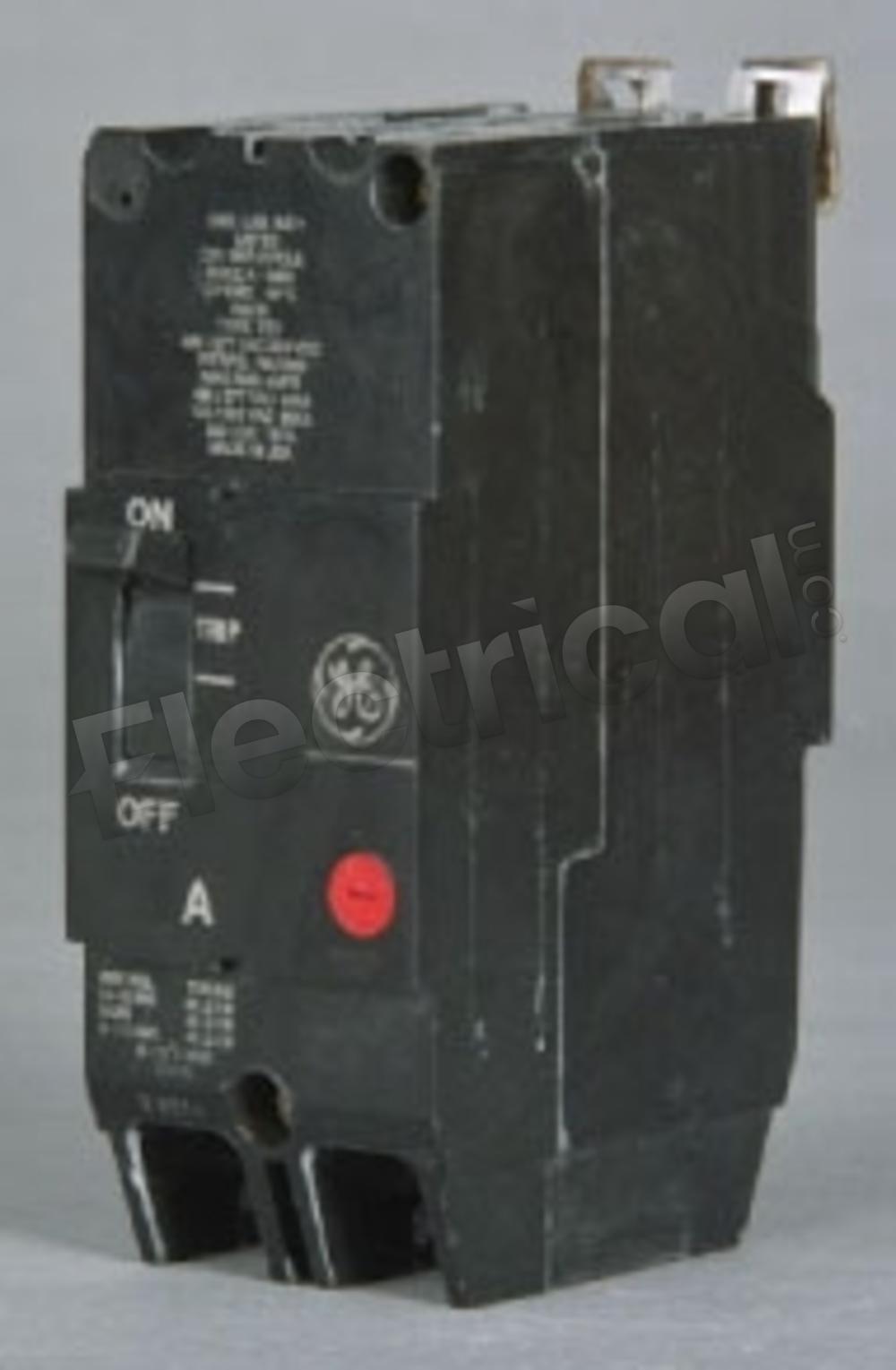

TEY260AS1B, General Electric, Q-Line, type , 2P, 1PH, 60A, 277/480V, 14kA@480V, standard interrupting capacity, 40°C, Bolt-On, with factory installed N.C. Auxiliary switch, Thermal Magnetic molded case circuit breakers
