EEJD240080SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 80A, AC phase connection, 480V max, Copper, Single Branch mounting style, suitable for use with ED,EDH,EDC,JD,HJD,JDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

3VA6460-6KT31-2AA0, Siemens, SENTRON 3VA, type , 100% rated, 3PH, 3P, 600V, 600A, high breaking capacity, 65kA@480V, Feed-Thru, fixed mounted, complete with ETU856 trip unit, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

DK-25-MO-DO-LSIG, Westinghouse, DK Series, type , 600A frame size, manually operated/Draw-Out, 3P, 3PH, 50-600A current sensor rating, 600V, 30kA@480V, originally supplied with oil dashpot or thermal-magnetic trip device but can be retrofitted with a modern Solid State electronic trip unit with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power air circuit breakers

PDG33K0225VFAK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 225A, 50kA@480V, Bolt-On, standard line side lugs, complete with LI - Long-Time and Instantaneous trip functions, 50ºC Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications; non-UL listed

SSD1G3X2K, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 800A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

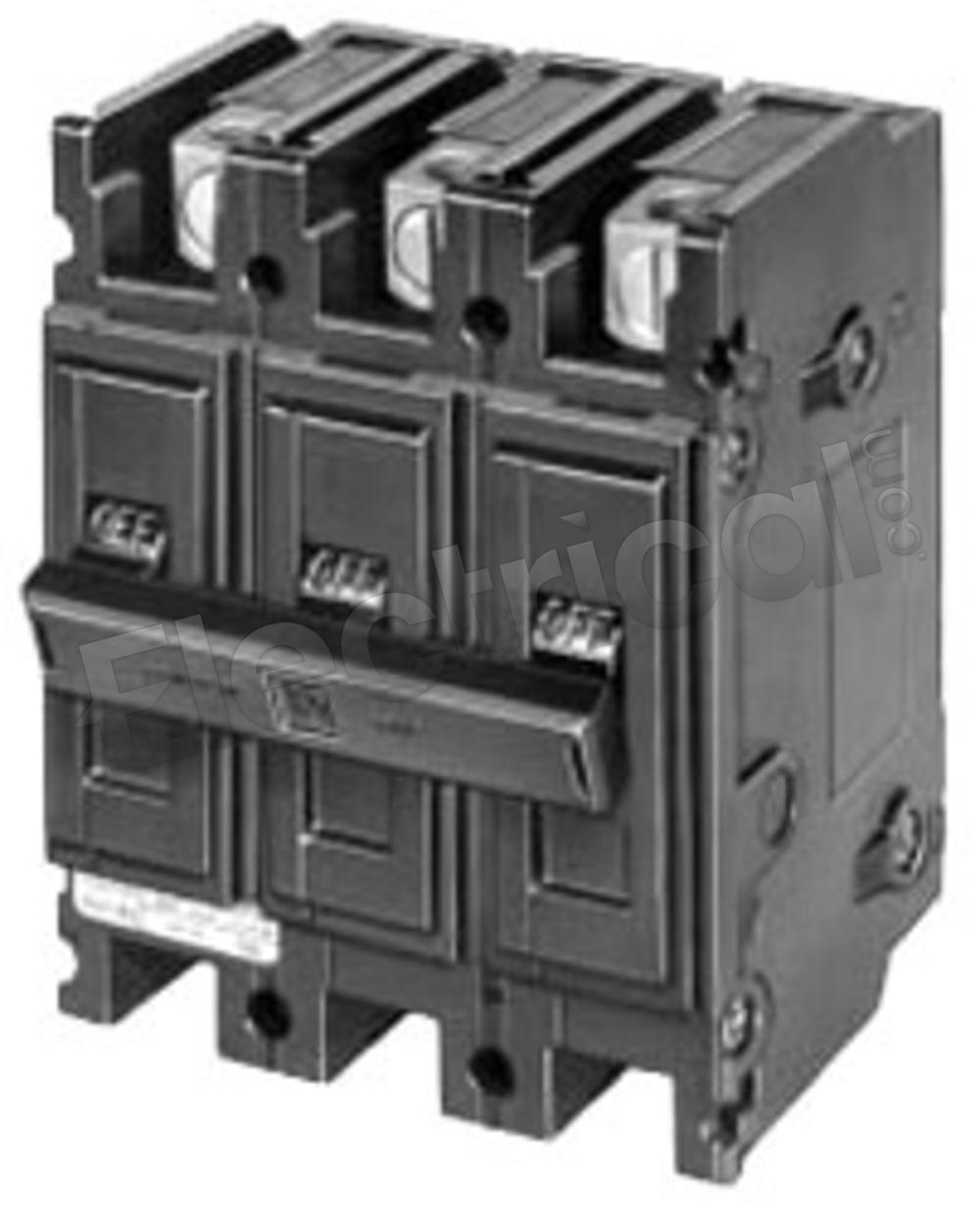

QCD3055H, Cutler Hammer, Quicklag, type , 3P, 3PH, 55A, 240V, 10kA@240V, standard interrupting capacity, 40°C, Bolt-On, DIN rail mounted, used on 120V fluorescent lighting, LI - Long-Time and Instantaneous trip functions & load side lug terminals, Thermal Magnetic, miniature molded case circuit breakers

SHB2G5F1N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 1600A frame rating, complete with Entelliguard trip, LI - Long-Time and Instantaneous trip functions, full metering & modbus communication features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0522NMNKNEMNCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed metal padlockable pushbutton cover, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

NGB1K090, Siemens, GB2 Series, type , 1P, 1PH, 90A, 347V, 25kA@277V, standard interrupting capacity, panelboard mounting, suitable for reverse feed applications, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0422NMNA2ENRMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SSB3G6R7P, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, back connected, 2000A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, modbus communication & ZSI features and 1000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PDG34N0400P2DL, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 400A, 85kA@480V, Bolt-On, load side lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

IZMH2-4-A2500, Klockner Moeller, IZM Series, type , 4P, 3PH, 2500A, 690V, 100kA@415V, high switching capacity, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, insulated case circuit breakers for distribution circuit protection

PDF54P0800D5WM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 800A, 100kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault with ARMS trip functions with relays, modbus & ZSI option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

A2L6RPK, Cutler Hammer, Series G, type , bell alarm, (1) alarm switch, right side mounted, pigtail style leads, , 2A/2B contacts, when installed in a circuit breaker the part number suffix is -B12, suitable for use with Series G RD,RDC,CRD,CRDC,RGH,RGC,E2R,E2RM frame molded case circuit breakers

MDN4083LEA0322NMNX4YNRNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

MDN4083LEA0822NMNHNYNLCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

WLH1D312JD, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1200A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLLCD48 LCD display, LSI - Long-Time, Short-Time and Instantaneous trip functions and 500A rating plug, Solid State electronic, low voltage insulated case circuit breakers

PDG32M0250E4MK, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 250A, 65kA@480V, Bolt-On, line side lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0122NMNANYNNCWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

685947, Merlin Gerin, Masterpact, part and accessory, safety Shutters (VO), suitable for use with Masterpact 800-2000A, 4P, MP & MC type, insulated case circuit breakers

MDN4083LEA0422NMNK4ENKNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

PDG34N0250E3ZL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 250A, 100kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0622NMNF4YNNMPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired
