SKLC3608L7T6 General Electric Spectra Series, type , 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI-CP, LSICP - Long-Time, Short-Time, Instantaneous and Circuit Protection and ZSI, zone selective interlocking trip functions and advanced metering, modbus & waveform capture communication features, Solid State electronic, molded case circuit breakers

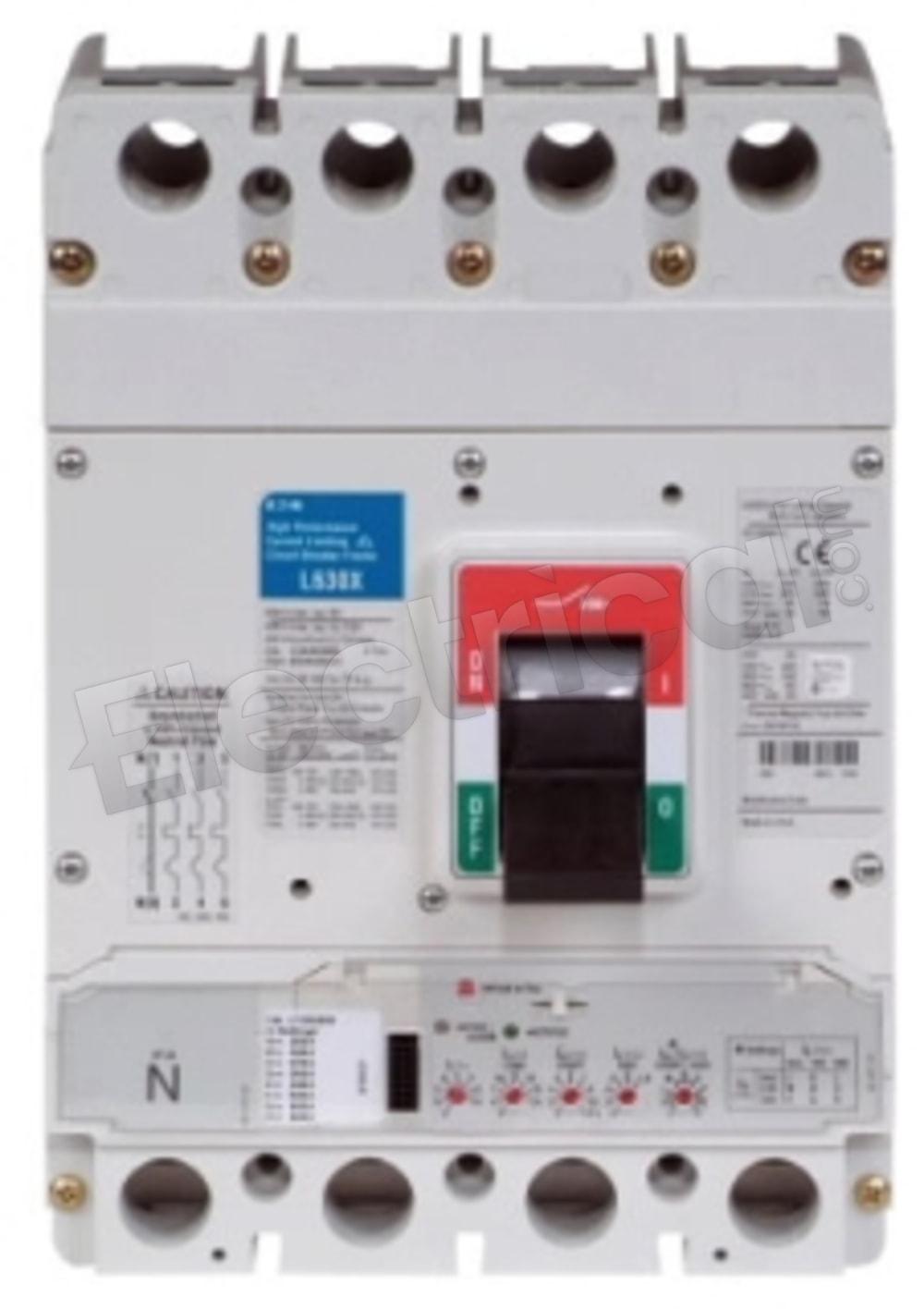

LGC463035G, Cutler Hammer, Series G, type , 4P, 3PH, 630A, 600V, 100kA@480V, current limiting, Feed-Thru, complete with interchangeable trip, LSG - Long-Time, Short-Time and Ground Fault trip functions and line & load side lug terminals, Solid State electronic molded case circuit breakers

MDN4083LEA0822NMNF2ENRDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

21-S13GSEDT, Hardware Resource Company, direct replacement circuit breaker retrofit mounting hardware for GE, E150 Line, rated for 150A 600V max, Dual/Twin Branch mounting configuration, to be used with TED,THED circuit breakers installed into QMR panelboards and switchgear systems

AKR-7A-50-EO-DO-LI, General Electric, Electrically Operated, Draw-out, Low Voltage air circuit breaker, AKR Series, Type , 1600A Frame, 3PH, 3P, 600Vac, {Aic Rating@480VAC}@480VAC, Standard Electric Operator, Control Voltage and Wiring to be determined before ordering, with MicroVersa Trip RMS-9 Solid State Overcurrent Protection, LI - Long-Time and Instantaneous trip functions, Optional Trip Functions, Current Sensor and Rating Plug Amperages available

MDN4083LEA0722NMNRNNNCNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

SKHH3608L4R8 General Electric Spectra Series, type , 3P, 3PH, 800A, 600V, 50kA@480V, extra high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and RELT, reduced energy let-through trip functions and advanced metering, modbus, waveform capture & protective relays communication features, Solid State electronic, molded case circuit breakers

MDN4083LEA0722NMNG2YNRCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

E4S-A36-4P-3000A-BO-EO-LSIG, ABB, EMax, type , 4P, 3PH, 3600A frame, 3000A rating plug, 600V, 65kA@480V, fixed/Bolt-On, electrically operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

WLH1D312QT, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 1200A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU755 programmer + WLGFA76 ground fault module, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions and 1200A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0222NMNCNNNCNSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SSF4G7F81, General Electric, Power Break II, type , 3P, 3PH, 600V, 2500A current sensor rating, 100kA@480V, standard interrupting capacity, Bolt-On, front connected, 2500A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, full metering & modbus communication features and 2500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0122NMNA2YHNNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PEDC4ATAK0150, General Electric, GuardEon, type , 3PH, 4P, 600V, 45-150A, 25kA@480V, front connection/Feed-Thru, toggle mechanism, complete with PremEon G interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

WLL3D350N, Siemens, WL Series, type , frame size III, drawout, 3P, 3PH, 5000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state programmer with LSI - Long-Time, Short-Time and Instantaneous trip functions and 800A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SHF4G458N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 2500A frame rating, complete with Entelliguard trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0122NMNK4NHNCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MDN4083LEA0622NMNG4YNYMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

THS303LD25, General Electric, Power Break I, Dual Magnetic type , 3000A frame, 3P, 3PH, 600V, 2500A, 150kA@480V, standard interrupting capacity, Feed-Thru, manually operated, includes bus connectors and dual magnetic trip unit with adjustable ampere setting, 8000-15,000A, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic insulated case circuit breakers; these breakers are obsolete, however we still stock them

PDG62N2000P2YM, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 2000A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays, modbus, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated

MDN4083LEA0122NMNR4NCNMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 208-240Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PDF33FH250E4CN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 250A, High Override, 25kA@480V, 100% UL, Bolt-On, no lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions and CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SSF1G3J7N, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 800A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, modbus communication and relays features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

MDN4083LEA0222NMNK4NNAMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired
