PDG42M0800D5YN, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 800A, 65kA@480V, Bolt-On, no lug terminals, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays, modbus, ZSI and CAM, Solid State electronic, molded case circuit breakers; globally rated

HMCP250A5S43, Eaton, Westinghouse, Cutler Hammer, Series C, type , J Frame, 3P, 3PH, 250A, 600V, 35kA@480V, Feed-Thru, complete with left-pole mounted 110-125Vdc right side shunt trip, I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 350-700A, Magnetic Only, molded case circuit breakers

HRA36100U31XAEBEUD, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 200kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 208/277 VAC under voltage release (UVR), molded case circuit breakers

674699, General Electric, Redline, Series, G61B32, 1P, 1PH, 32A, 240/415V, 6kA@415V, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

HGL36020ABBHUJ, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 525/600 VAC under voltage release (UVR), molded case circuit breakers

SGPB36BB6500C, General Electric, Spectra Series, type , 3P, 3PH, 500A, 600V, 100kA@480V, high interrupting capacity, current limiting, Bolt-On, complete with SRPG600B500 rating plug, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, Plus trip unit with LSIT - Long-Time, Short-Time, Instantaneous and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

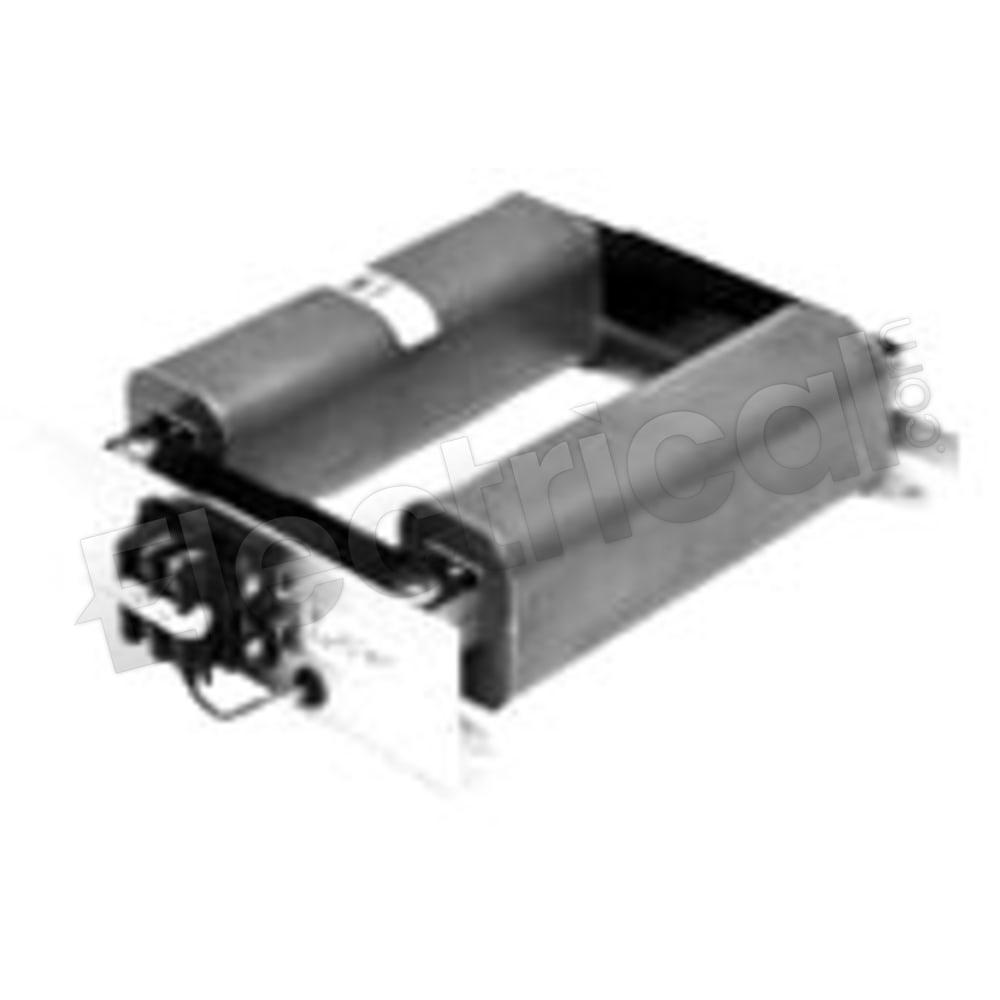

270R401, Square D, Micrologic, split-core Current Transformers, 600V class, 3-9/16 x 8-3/16 inch window size, 400:5, 60 Hz, suitable for Micrologic circuit breakers

HDA260501ABBHUN, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 50A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 12 VDC under voltage release (UVR), molded case circuit breakers

PKF36080CU64AE1, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HDA36150ABBCUJYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch, 525/600 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

KCF24070, Square D, KCF Series, type , 2P, 1PH, 70A, 480V, 65kA@480V, extra high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

HRA36100U33XBCUK, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 200kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with alarm switch, 24 VAC under voltage release (UVR), molded case circuit breakers

M32H03C, Square D, Masterpact, type , H1/H2/HI/L1 type, cubicles (cradles), 3P cradle suitable for drawout style, 3200A Masterpact Masterpact, 690Vac, IEC rated Masterpact insulated case circuit breakers

HGA36100AFUOYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, 24 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDL26150ABBESHYP, Square D, PowerPact, type , 2P, 1PH, 150A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MP08-3P-125A-MO-BO-LSI, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 800A frame with 250A trip and 125A rating plug, 3P, 3PH, 600V, 50kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

SKPP3612L4N2 General Electric Spectra Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, extra high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and ZSI, zone selective interlocking, RELT, reduced energy let-through & neutral protection trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

HDA260701BHUH, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 70A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with alarm switch low-level, 380/480 VAC under voltage release (UVR), molded case circuit breakers

PDG34P0400E4RN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 400A, 100kA@480V, Bolt-On, no lug terminals, complete with PXR20 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HJY3U400L, Siemens, VL Series, type , JG Frame, 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, 100% rated, complete with non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Digital Solid State Electronic molded case circuit breakers

HGL36020AEBCUKYP, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, 24 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HGA260901AABCUR, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 125 VDC under voltage release (UVR), molded case circuit breakers

MP20H2-3P-2000A-MO-DO-LIG, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 2000A frame, includes 2000A sensor rating with 2000A rating plug, 3P, 3PH, 600V, 100kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

CKD3200Y, Cutler Hammer, Westinghouse, Eaton, Series C, type , 3P, 3PH, 200A, 600V, 35kA@480V, standard interrupting capacity, 40ºC, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, line side lug terminals included, 100% rated, Thermal Magnetic molded case circuit breakers
