PDD33K0175TFAL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 240V, 175A, 85kA@240V, Bolt-On, load side lug terminals only, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; UL/CSA certifications

3VA9133-0JC12, Siemens, , wire connector large, with control wire tap, 3 single lugs and 1 extended terminal cover, 1 barrel, AWG 4 / 300 MCM, Aluminum, field installable, suitable for use with 3VA51 125A frame circuit breakers

SGHH3601L7PX General Electric Spectra Series, type , 3P, 3PH, 150A, 600V, 35kA@480V, standard interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI-CP, LSI - Long-Time, Short-Time and Instantaneous and ZSI, zone selective interlocking & RELT, reduced energy let-through and basic metering communication features, Solid State electronic, molded case circuit breakers

MP08H-3P-500A-EO-DO-LSG, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 800A frame, includes 600A or 800A sensor rating with 500A rating plug, 3P, 3PH, 600V, 65kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP trip units, Solid State electronic, insulated case circuit breakers

TJJ626Y600WL General Electric J600 Line, type , 2P, 1PH, 600A, 600V, 30kA@480V, complete with line & load side lug terminals and non-interchangeable trip unit, standard interrupting capacity, 40ºC, Feed-Thru, Non-Automatic switch, NA - No Overcurrent Protection, molded case circuit breakers

FD3030LA02, Eaton, Westinghouse, Cutler Hammer, Series C, type , 3P, 3PH, 30A, 600V, 35kA@480V, standard interrupting capacity, 40°C, Feed-Thru, complete with factory installed rear, left pole mounted 1A/1B auxiliary contact, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

PDG33P0400E5XL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, 100kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

SGLB36BB6400C, General Electric, Spectra Series, type , 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, current limiting, Bolt-On, complete with SRPG600B400 rating plug, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, Plus trip unit with LSIT - Long-Time, Short-Time, Instantaneous and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

PDG62M1600P3MM, Cutler Hammer, Eaton, Power Defense, type , 1PH, 2P, 600V, 1600A, 65kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated

PDD23F0090TFFJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 240V, 90A, 35kA@240V, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; UL, CSA certifications

PDF64N2000D2MM, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 2000A, 85kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

HLDDC20900, Cutler Hammer, Eaton, Westinghouse, Series C, type , 2P, 1PH, 900A, 600V, DC rated, 50kA@250V, high interrupting capacity, Feed-Thru, complete with trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

HMCP250L5S86, Westinghouse, Cutler Hammer, Eaton, Series C, type , J Frame, 3P, 3PH, 250A, 600V, 35kA@480V, Feed-Thru, complete with left-pole mounted 48-60Vdc rear shunt trip, I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 1125-2250A, Magnetic Only, molded case circuit breakers

MA-MVR-250C-1200A, CBS, MA-MVR Series, , 3PH, 3P, 5000 VAC, 1200 Frame, Electrically Operated, Draw-Out, Medium Voltage vacuum circuit breaker Breaker, For Use In Type D Switchgear. Operating Voltage, Control Voltages, Wiring, and Additional Accessories to be determined before ordering.

PDG24F0225D2ML, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 225A, 25kA@480V, Bolt-On, load side lug terminals, complete with Xpert Release PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions, relays and modbus, Solid State electronic, molded case circuit breakers; globally rated

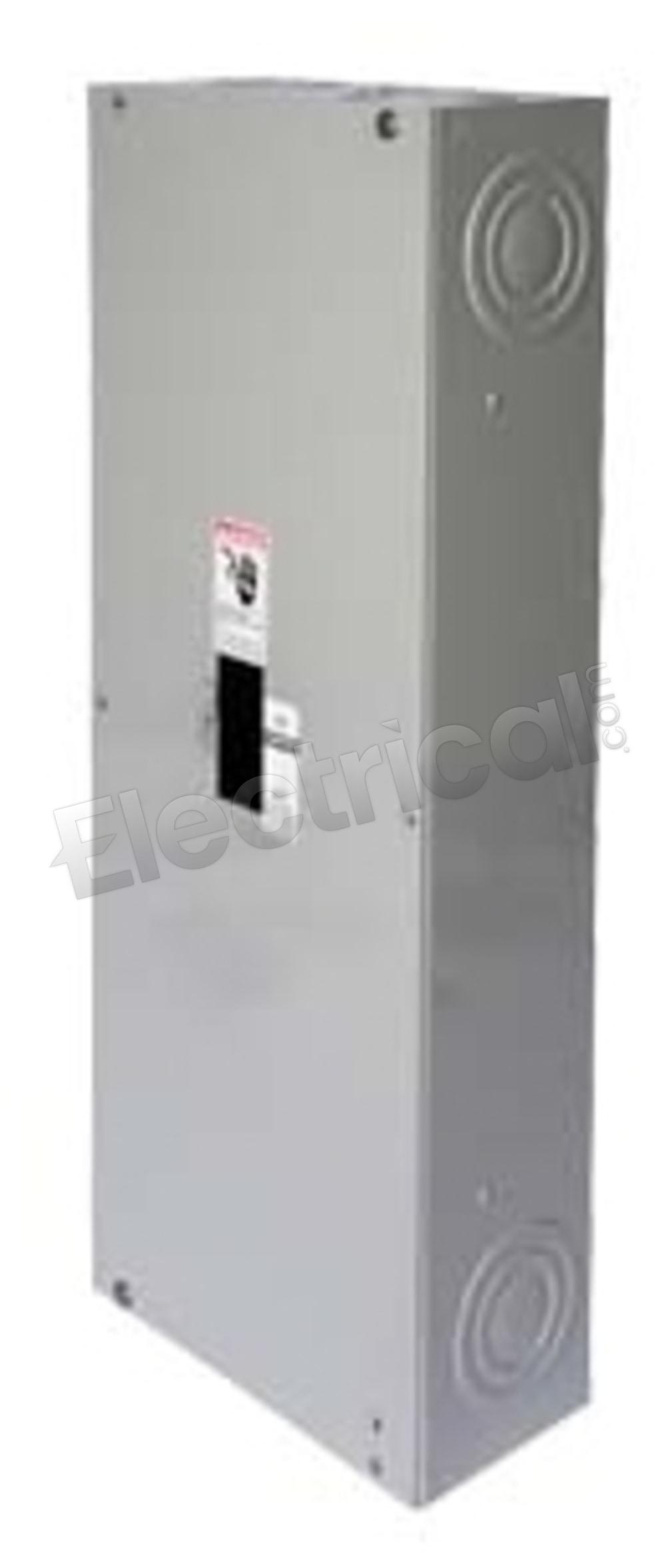

E4XED42B020, Siemens, SENTRON, type , 2P, 1PH, 20A, 480V, 18kA@480V, standard interrupting capacity, 40ºC, Feed-Thru, complete with Type 4X stainless steel enclosure, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

XT4HU3225RFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 225A, 600V, 25kA@600V, Ekip Touch Measuring LSI, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

314C640G22, Westinghouse, LA3175S, LA Series, type , 3P, 3PH, 175A, 600V, 30kA@480V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, Saf-T-Vue window and load side lug terminals, Thermal Magnetic molded case circuit breakers; these breakers are obsolete, however we do still stock them

NJS6309, Federal Pacific, NJS Series, type , 3P, 3PH, 90A, 600V, 30kA@480V, standard interrupting capacity, Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are obsolete; however, we do still stock them

SGHC3604L4RX General Electric Spectra Series, type , 3P, 3PH, 400A, 600V, 35kA@480V, standard interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault and RELT, reduced energy let-through trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

PDG33MH400P2DN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 65kA@480V, Bolt-On, no lug terminals, complete with PXR25 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with MODBUS RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG26M0025TFFN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 60% neutral, 600V, 25A, 65kA@480V, Bolt-On, no terminals, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG33P0250D3MJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 250A, 100kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG34P0600D4DN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 600A, 100kA@480V, Bolt-On, no lug terminals, complete with PXR20D ARMS trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications
