ECN2411CAE, Cutler Hammer, Freedom Series, combination, non-reversing motor starter with HMCP and CPT (control power transformers), type , 3P, 3PH, 10 HP @ 460V, 600V, complete with 480V coil, NEMA size 1, 30A HMCP circuit breaker enclosed in NEMA Type 1 enclosure, suitable for use with Freedom Series motor control systems

8539SHG7V06, Square D, Class 8539, combination non-reversing motor starter, NEMA size 6, requires 3 thermal units, supplied with 800A type MAL thermal magnetic circuit breaker and NEMA type 1 enclosure, 3P, 3PH, 600V, 400 HP @ 480V, complete with 480V coil, suitable for use with Class 8539 motor control systems

8739SGW6V06H30, Square D, Class 8739, type , full voltage reversing motor starter with JLL 250A thermal magnetic circuit breaker, 3P, 3PH, 125-150HP @ 600V, 600V with 480V 60Hz/440V 50Hz coil, NEMA size 5, includes NEMA 4 & 4X watertight and dust-tight stainless steel enclosure, Motor Logic SSOLR Class 10/20

MMKT700TC3, Siemens, Sentron Series, type , trip units and programmers, 3P, interchangeable trip, LI - Long-Time and Instantaneous trip functions, rated for 700A, trailing cable high range, magnetic range 1250-2500A, suitable for Thermal Magnetic MM6B,MMKB mining service molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

0282A7165G001, General Electric, PowerVac, Prop Latch, VB-1 0,1, ML-18, qty 1 needed per breaker, suitable for VB1 4.16-250 (1200 & 2000A), VB1 4.16-350 (1200, 2000, 3000A), VB1 7.2-500 (1200 & 2000A), VB1 13.8-500 (1200 & 2000A), VB1 13.8-750 (1200 & 2000A), VB1 13.8-1000 (1200, 2000, 3000A) breakers

LDA36250U31X, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 250A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breaker

PGL36080CU31A, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru, 100% rated, complete with micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breaker

CCV2100, Eaton, Cutler Hammer, Tenant Main, type , 2P, 1PH, 100A, 120/240V, 10kA@240V, UL listed, standard interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, suitable for use as tenant main circuit breaker, Thermal Magnetic, molded case circuit breakers

25PCG2500, Westinghouse, SELTRONIC, type , fixed rating plug element, rated for 2500A, suitable for use with 2500A Seltronic - PCG,PCGA,PCCG,PCCGA molded case circuit breaker frame types, for use with Seltronic solid state electronic trip units & circuit breakers; these rating plugs are obsolete; however we do still stock them

LFB3150M, Cutler Hammer, AB DE-ION, type , part and accessory, Terminal Accessories, current limiter, breaker rating 150A, provides 200kA up to 600Vac, UL listed, bolts to the load end of a magnetic only FB Series FB molded case circuit breakers; these current limiters are obsolete, however we still stock them

21-D186SKL, Hardware Resource Company, direct replacement mounting hardware strap kit for General Electric AV-1,AV-2,CCB panel boards, rated for 800A 600V max, Copper, Single Branch mounting style, suitable for use with TKM,THKM,SK circuit breaker frames, complete with all associated hardware, screws and cover plates

8539SEW3V06, Square D, Class 8539, combination non-reversing motor starter, NEMA size 3, requires 3 thermal units, supplied with 90A type FAL thermal magnetic circuit breaker and NEMA type 4 & 4X enclosure, 3P, 3PH, 600V, 40 HP @ 480V, complete with 480V coil, suitable for use with Class 8539 motor control systems

EEJD560175SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 175A, BCL or ABR phase connection, 600V max, Copper, Single Branch mounting style, suitable for use with ED,EDH,EDC,JD,HJD,JDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

XT2HU4060EFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 60A, 600V, 25kA@600V, Ekip LS/I (Electronic, LS/I protection), UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

8539SFW44V04, Square D, Class 8539, combination non-reversing motor starter, NEMA size 4, requires 3 thermal units, supplied with MAG-GARD KAL36250-29M circuit breaker and NEMA type 4 & 4X enclosure, 3P, 3PH, 600V, 50 HP @ 240V, complete with 277V 60Hz coil, suitable for use with Class 8539 motor control systems

SRPK800B500, General Electric, Spectra Series, type , interchangeable rating plug element, rated for 500A, suitable for use with the 800A sensor rating, SK series - SKHB,SKHH,SKLB,SKLL,SKPB,SKPP molded case circuit breaker frame types, for use with MICROVERSATRIP-PLUS,MICROVERSATRIP-PM solid state electronic trip units & circuit breakers

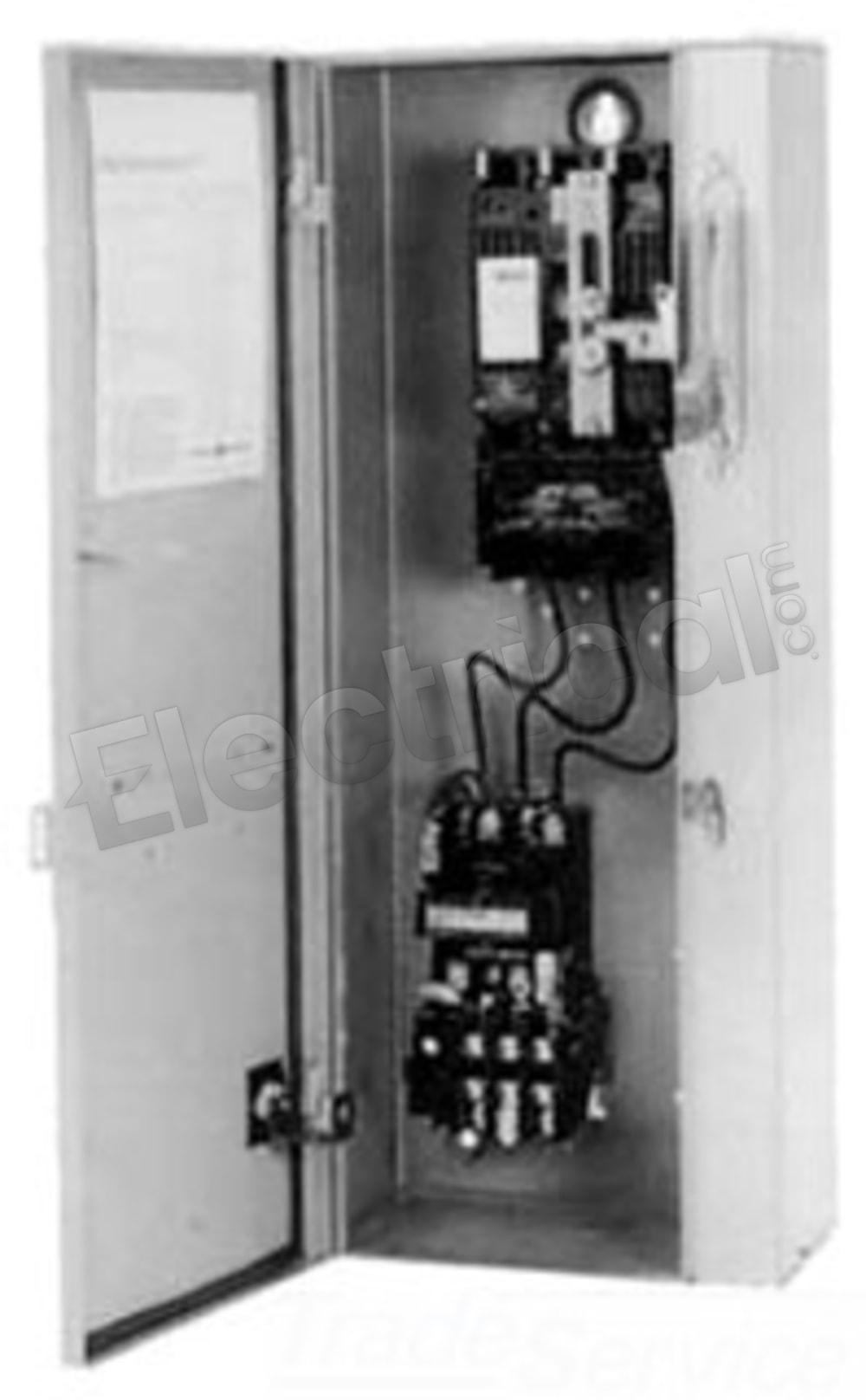

CR387CT03MF1AAAAA, General Electric, 300 Line, type , 3P, 3PH, 27-30A, 600V, 7.5 hp, complete with 230V-240V 50/60Hz, AC coil, non-reversing, combination, mag-break circuit breaker type magnetic starter, NEMA size 00 includes NEMA type 1 surface mount enclosure, suitable for use with 300-Line motor control systems

XT4XU3150EFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 150A, 600V, 100kA@600V, Ekip LS/I (Electronic, LS/I protection), UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

CR492C408ME1AAAAA, General Electric, CR492, type , 3P, 3PH, 25-27A, 600V, 5 hp, complete with 200V-208V 60Hz, AC coil, 2 speed, 1 winding, mag-break circuit breaker type magnetic starter, NEMA size 00 includes NEMA type 4/4X surface mount enclosure, suitable for use with CR492 motor control systems

TQ32030PL, General Electric, type , 3P, 3PH, 30A, 240V, 10kA@240V, Plug-In, non-padlocking handle lock, complete with internal common trip, LI - Long-Time and Instantaneous trip functions and load side lug terminal, Thermal Magnetic, molded case circuit breaker; these breakers are not obsolete, however, we do still stock them

EZSKHC3608L3R, General Electric, Spectra Series RMS main circuit breaker kit for EntellEon panelboards, type , requires 6X bus space, 3P, 3PH, 800A, 600V, 50kA@480V, UL listed, complete with MicroEntelliGuard trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions and RELT, Solid State electronic, molded case circuit breakers

CR412E204TL1AAAAA, General Electric, CR412, type , 3P, 3PH, 80-90A, 600V, 40 hp, complete with 460V-480V 60Hz, AC coil, 2 speed, 1 winding, combination, thermal magnetic circuit breaker type magnetic starter, NEMA size 00 includes NEMA type 12 surface mount enclosure, suitable for use with CR412 motor control systems

EEJD510200B2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 200A, BCL or ABR phase connection, 120V max, Copper, Single Branch mounting style, suitable for use with ED,EDH,EDC,JD,HJD,JDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

8739SDA1V01SH30, Square D, Class 8739, type , full voltage reversing motor starter with HLL 60A thermal magnetic circuit breaker, 3P, 3PH, 20HP @ 480V, 25HP @ 600V, 600V with 24V 60Hz coil, NEMA size 2, includes NEMA 12/3R dust-tight industrial use enclosure without external reset, Motor Logic SSOLR Class 10/20
