MDN4083LEA0822NMNHNYCNCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SHB4G453N, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 2500A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & ZSI features and 800A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEF361600ES9E8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1600A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MGA266005UK, Square D, Schneider Electric, PowerPact, type , 2P, C & A phase connection, 1PH, 600A, 600V, 35kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, complete with 24Vac UVR, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State, molded case circuit breakers

ENT3212BF3H2, General Electric, EntellEon, type , low-voltage panel board interior, UL listed, 3-phase, 3-wire, main 1200A rated, 600VAC, 32X, bolted feed through, Copper bus material, Main Breaker style; to be used with SK, SG, SF, SE main circuit breakers

MJF26500SD, Square D, Schneider Electric, PowerPact, type , 2P, 1PH, 500A, 600V, 65kA@480V, UL listed, current limiting, Bolt-On, complete with 208/277Vac shunt trip, basic non-interchangeable ET 1.0 trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

LAL362501124, Square D, LAL Series, type , 3P, 3PH, 250A, 600V, 30kA@480V, standard interrupting capacity, Feed-Thru, complete with 240Vac UVR, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

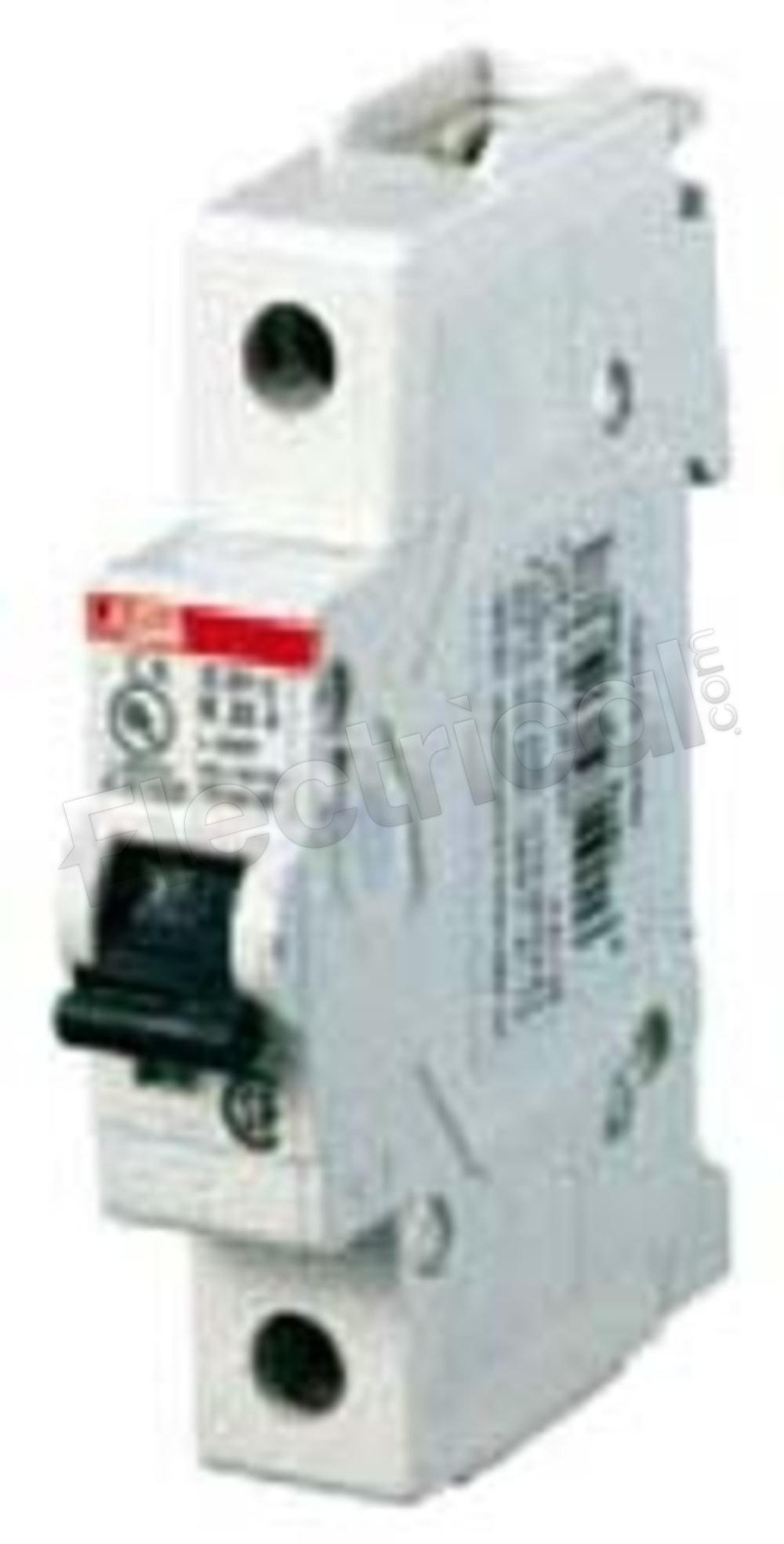

S201U-Z0.5, ABB, S 200 U Series, type , 1P, 1PH, 0.5A, 240Vac, 10kA@240Vac, standard interrupting capacity, current limiting, DIN rail mounted, Feed-Thru, suitable for reverse feed, UL/CSA/IEC approval, branch circuit protection, Z trip characteristic, Thermal Magnetic trip functions, Thermal Magnetic, miniature molded case circuit breakers and supplemental protectors

SEHD361200LIGES9C8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1200A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LIG - Long-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2 N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PKF36120U43BBD, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1200A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 1A/1B overcurrent trip switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

MDN4083LEA0322NMNXNENHNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

GUT45C16BFA, General Electric, EntellEon, type , Panelboard Assemblies, gutter cover, Type 1 door, suitable for use with EntellEon 45 width enclosure with center orientation and 16X bus height with bolted lug with feed-through

SEF36400D8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 4A4B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SED361400LSIGET6, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1400A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & 48VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PLL24000S80BD, Square D, Schneider Electric, PowerPact, type , 2P, 1PH, 800A, 480V, 100kA@480V, very UL listed, high interrupting capacity, Feed-Thru, complete with 1A/1B overcurrent trip switch, NA - No Overcurrent Protection, Non-Automatic switch, line & load side lug terminals, molded case circuit breakers

MDN4083LEA0522NMNE4YNACAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

PGA36040CU41AE1YP, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, 100% rated, complete with fixed handle padlocking device, modbus communications, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

EEHJD540250SB2, Cutler Hammer, EE Series, mounting hardware, plug-in mounting module, rated for 250A, BCL or ABR phase connection, 480V max, Copper, Single Branch mounting style, suitable for use with JD,HJD,JDC circuit breaker frames and EP panelboards; these modules are obsolete, however we still stock them

MDN4083LEA0422NMNX2EHNDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB plastic frame padlockable pushbutton cover, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 2A/2B auxiliary switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0122NMNXNENAMWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

TP4VT40GB, General Electric, MicroVersaTrip 4, type , trip units and programmers, 4000A current sensor rating, 600V, Solid State electronic, LIG - Long-Time, Instantaneous and Ground Fault trip functions, suitable for use with Power Break I 3000-4000A frame insulated case circuit breakers

PLP34080U63BE1RD10, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Bolt-On, complete with direct mounted standard black handle, micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

SEHD363000LSIGES2D4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 3000A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PGL36080CU33BBC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru, 100% rated, complete with 1A/1B alarm switch, micrologic interchangeable standard 5.0 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers
