150-DH-500A-1200A, Westinghouse, DH Series, , 3PH, 3P, 15000 VAC, 1200 Frame, Electrically Operated, Draw-Out, Medium Voltage air circuit breaker, For Use In De-ion DH Switchgear. Operating Voltage, Control Voltages, Wiring, and Additional Accessories to be determined before ordering.

7829C54G03 /<strong>D82LS</strong>, Eaton, Cutler Hammer, Westinghouse, DS Series, Digitrip 810D, LS - Long-Time and Short-Time trip functions, suitable for use with All DS, DSL, DSII, DSLII low voltage power air circuit breakers

3VA6325-5KQ41-2AA0, Siemens, SENTRON 3VA, type , 100% rated, 3PH, 4P, 600V, 250A, medium breaking capacity, 35kA@480V, Feed-Thru, fixed mounted, complete with ETU860 trip unit, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, molded case circuit breakers

PDG54M1200P5YN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 1200A, 65kA@480V, Bolt-On, no terminals, complete with PXR25 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip with ARMS functions with relays, modbus, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated

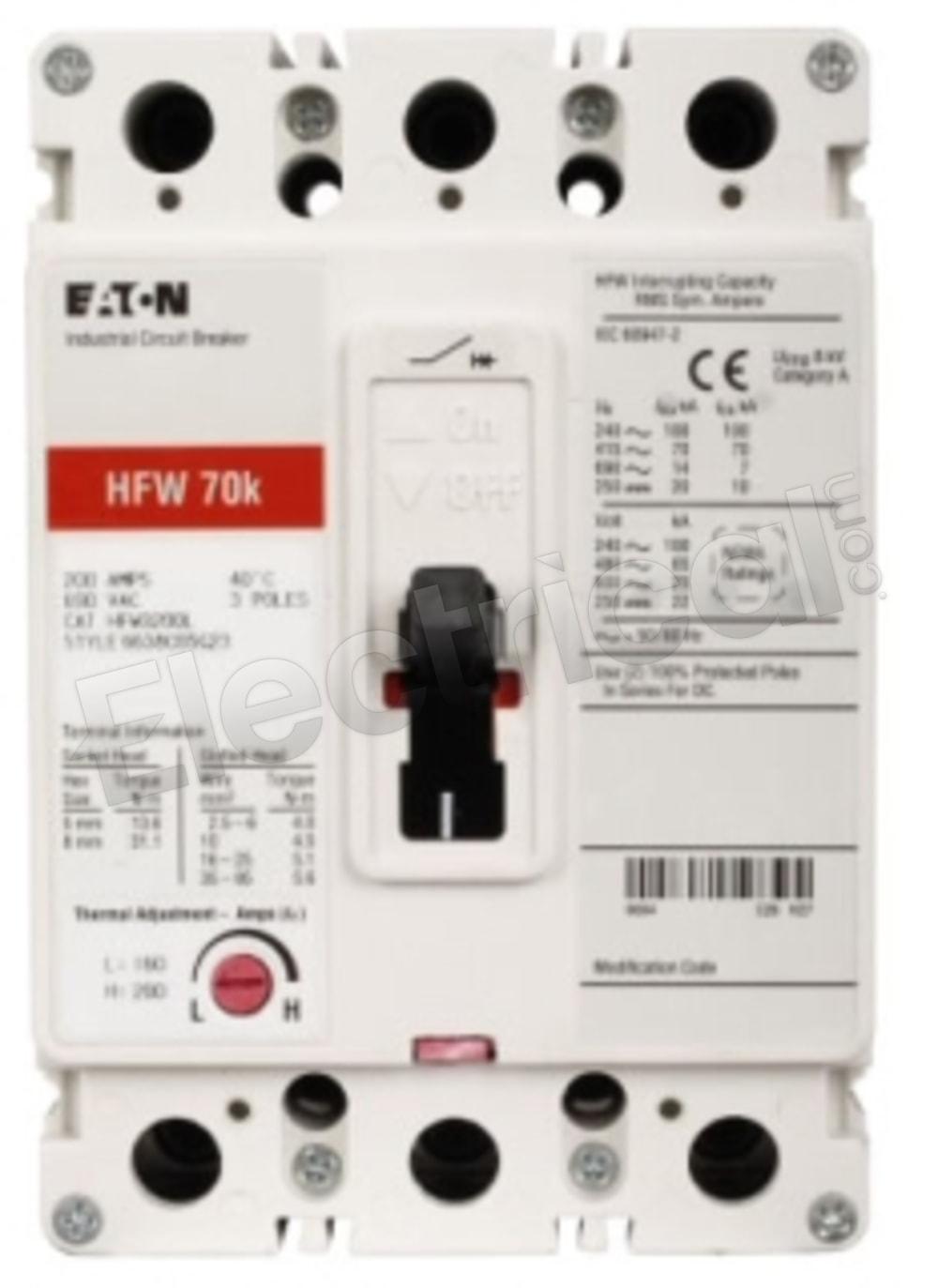

HFW3160JL, Eaton, Westinghouse, Cutler Hammer, Series C, type , 3P, 3PH, 160A, 690V, 70kA@415V, high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable magnetic range 800-1600, Thermal Magnetic, molded case circuit breakers

EE2A040, Siemens, ITE, EE Series, type , 2P, 1PH, 40A, 240V, 10kA@240V, standard interrupting capacity, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, standard magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

PDG52M0800E4XM, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 800A, 65kA@480V, Bolt-On, no terminals with metric tapped conductors, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous with ARMS trip functions with relays, ZSI & CAM option, Solid State electronic, molded case circuit breakers; globally rated

HDA36150U43XSNYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 5.2A non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 12 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

XT2HU4060QFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 60A, 600V, 25kA@600V, Ekip Touch LSIG, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

LNG3K120L, Siemens, VL Series, type , 3P, 3PH, 1200A, 600V, 100kA@480V, very high interrupting capacity, Feed-Thru, complete with interchangeable trip with LCD display, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers

HDA260702AABCUKYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 70A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch, 24 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HJL36090ABBHSHYP, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch low-level, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDG33K0125E5ML, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 125A, 50kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG23F0225D3WN, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 225A, 25kA@480V, Bolt-On, no lug terminals, complete with Xpert Release PXR20D trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays, modbus, CAM and ZSI, Solid State electronic, molded case circuit breakers; globally rated

PDF64M2000E2MN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 2000A, 65kA@480V, Bolt-On, no terminals, complete with PXR20 trip with LSI - Long-Time, Short-Time and Instantaneous trip functions with relays and modbus option, Solid State electronic, molded case circuit breakers; globally rated with 100% UL rating

HJL36050M72AFBH, Square D, PowerPact, type , 3P, 3PH, 50A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 84-546A, Magnetic Only, complete with 2A/2B low-level aux switch, alarm switch low-level, molded case circuit breakers

HRA36100U31XAASV, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 200kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B aux switch, 60 VDC shunt trip, molded case circuit breakers

HE2M040L, ITE, Siemens, HE Series, type , 2P, 1PH, 40A, 480V, 25kA@480V, high interrupting capacity, Feed-Thru, marine duty rated, 50°C, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete, however we do still stock them

HGA260902AFBCURYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 90A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

PDG34NH250E5XL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 4P, 600V, 250A, High Override, 100kA@480V, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

HLA36100AEBHUR, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 100A, 600V, 100kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch low-level, 125 VDC under voltage release (UVR), molded case circuit breakers

EHC3100L, Cutler Hammer, EHC Series, type , 3P, 3PH, 100A, 480V, 14kA@480V, standard interrupting capacity, 40ºC, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

MP63H2-3P-6000A-EO-DO-LIG, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 6300A frame, includes 6300A sensor rating with 6000A rating plug, 3P, 3PH, 600V, 125kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

HDL36020AABESH, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, 380/480 VAC shunt trip, molded case circuit breakers
