BARP075, BRAH Electric, Micrologic, type , field installable, interchangeable direct replacement rating plug; this rating plug sensor will rate your max amperage to 75% of the full load amperage of your circuit breaker; direct fit & suitable for use with all Square D Micrologic Series B solid state trip units, this rating plug sensor is designed to operate the following Micrologic solid state molded case circuit breaker frame types: LX,LXP,LXL,LXF,LE,LEP,LEL,LEF,MX,MXP,MXL,MXF,ME,MEP,MEL,MEF,NX,NXL,NXP,NXF,NE,NEL,NEP,NEF,PX,PXF,PXL,PXP,PE,PEL,PEP,PEF; as well as the following solid state insulated case circuit breaker frame types: SED, SEHD (Draw-Out) & SEF, SEHF (Fixed Mount)

SBS3225DV, Siemens, SB Series, type , 3P, 3PH, 3200A frame, rated for 2500A max, 600V, 100kA@480V, standard interrupting rating, Draw-Out, for vertical bus systems, Solid State electronic, insulated case circuit breakers

HGA36060U31X, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 60A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breaker

FB3070, Westinghouse, Cutler Hammer, AB DE-ION, type , 3P, 3PH, 70A, 600V, 14kA@480V, standard interrupting capacity, 40?C, Bolt-On, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

SL6D direct replacement mounting hardware strap kit for Siemens FC1,FCII,P5,S5,CDP5,CDP6,SB1,SB2,SB3 panel boards, rated for 600A 600V max, Copper, Single Branch mounting style, suitable for use with LL,LD,LXD,HLD,HLXD,HHLD,HHLXD circuit breaker frames, complete with all associated hardware, screws and cover plates

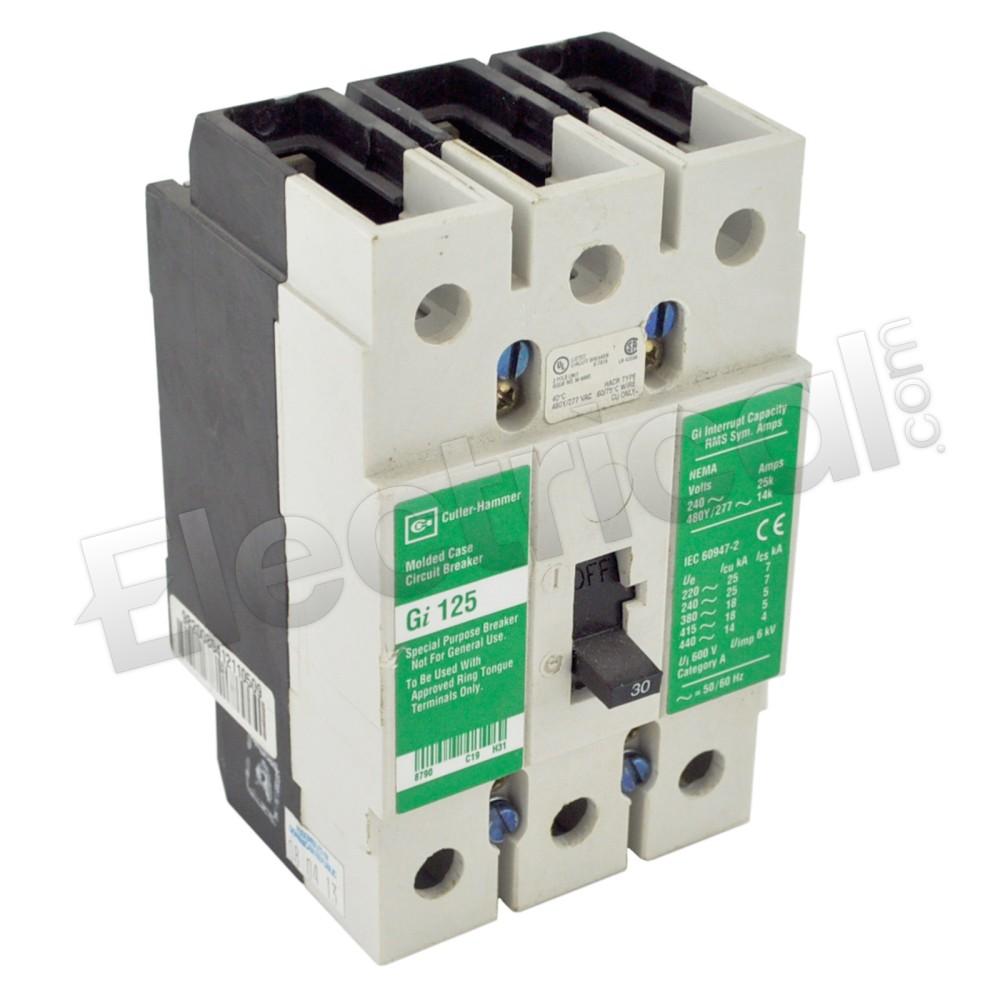

GI3030, Cutler Hammer, Universal, type , 3P, 3PH, 30A, 480V, 14kA@480V, 40°C, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

HGA36040, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 40A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MCP13300R, Cutler Hammer, Westinghouse, MCP Series, type , 3P, 3PH, 30A, 600V, 65kA@480V, Bolt-On, I - Instantaneous protection only, aluminum load side lug terminals, MCP, motor circuit protector, magnetic range 100-300A, Magnetic Only, Magnetic Only molded case circuit breakers

SPUV240ACR, General Electric, circuit breaker, under voltage release

CHFGFT125, Cutler Hammer, Eaton, CH Series, type GFCI, ground fault circuit interrupter, self-testing, 1P, 1PH, 25A, 120V, 10kA@120V, 40°C, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers

PH6CK, PCS aftermarket replacement mounting hardware for Cutler Hammer, Eaton, Westinghouse, rated for 225A 240V max, Copper, Dual/Twin Branch mounting style, suitable for use with 3P CC,CCH,CHH branch circuit breakers, complete with all associated hardware, screws and cover plates

ED61B060L, Siemens, Sentron Series, type , 1P, 1PH, 60A, 600V, 30kA@347V, standard interrupting capacity, 40ºC, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

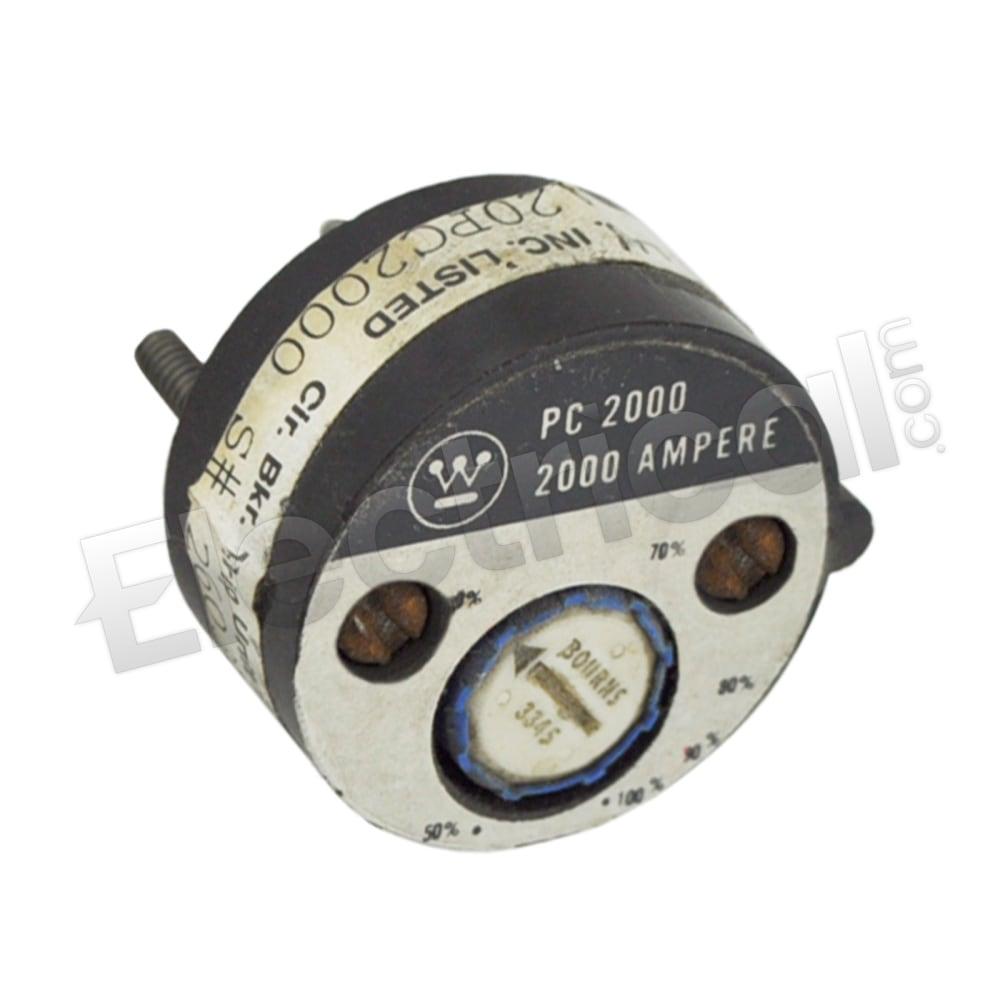

A20PC2000, Westinghouse, SELTRONIC, type , adjustable rating plug element, rated for 2000A, adjustable magnetic trip setting 4000-16000A, suitable for use with 2000A Seltronic - PC,PCA,PCC,PCCA,PCG,PCGA,PCCG,PCCGA molded case circuit breaker frame types, for use with Seltronic solid state electronic trip units & circuit breakers; these rating plugs are obsolete; however we do still stock them

KT2125T, Cutler Hammer, Series C, type , interchangeable trip units and programmers with LI - Long-Time and Instantaneous trip functions, rated for 125A, suitable for Series C- KD,DK,KDB,HKD,HKDB,KDC,CKD,CHKD molded case circuit breaker frame types, Thermal Magnetic trip units & circuit breakers

KH362001021, Square D, I-Line, Type , 3P, 3PH, 200A, 600V, 35kA@480V, high interrupting capacity, 40°C, complete with 120/240 Vac shunt trip, I-Line Style Plug-In, Thermal Magnetic molded case circuit breakers

HND63F120, Siemens, Sentron Series, type , 3P, 3PH, 1200A, 600V, 65kA@480V, standard interrupting capacity, 40ºC, Feed-Thru, lugs not included, Thermal Magnetic molded case circuit breakers

6LC500, Eaton, SELTRONIC, type , fixed rating plug element, rated for 500A, suitable for use with 600A Seltronic - LC,LCA,LCG,LCGA,HLC,HLCA,HLCG,HLCGA,LCC,LCCA,HLCC,HLCCA,LCCG,LCCGA,HLCCG,HLCCGA molded case circuit breaker frame types, for use with Seltronic solid state electronic trip units & circuit breakers; these rating plugs are obsolete; however we do still stock them

TCAL125, General Electric, TCAL Series, lug terminal kit, 1 single lug sold individually, 4 barrel, 250-500 MCM, Copper-Aluminum lugs, field installable, suitable for use with SKHB,SKHH,SKLB,SKLL,SKPB,SKPP frame molded case circuit breakers

JXD63B350, Siemens circuit breaker molded case Sentron Series, type , JD Frame, 3PH, 3P, 600V, 350A, 35kA@480V, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic

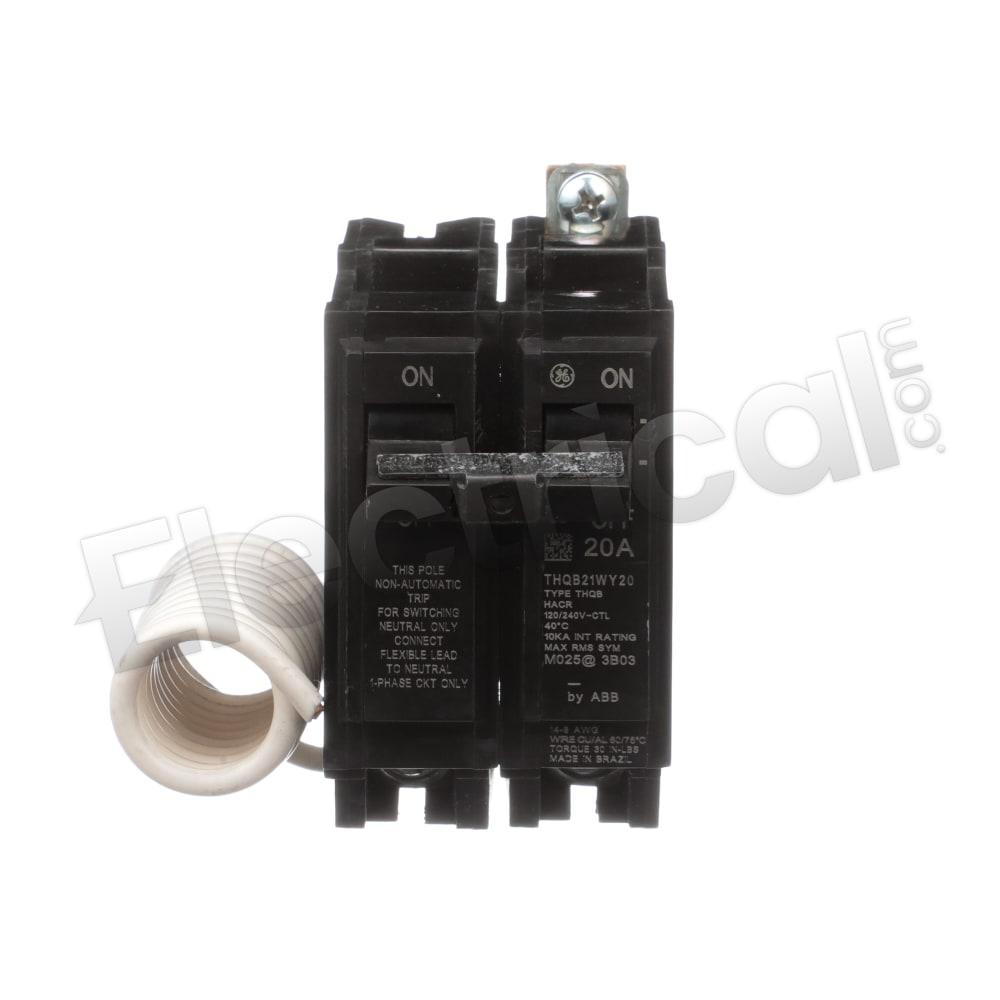

THQB21WY20, General Electric, type , 2P, 1PH, 20A, 240V, 10kA@120V, 40?C, UL listed, Bolt-On, with switching neutral single Thermal Magnetic pole; single nonautomatic pole, LI - Long-Time and Instantaneous trip functions and load side lug terminals, molded case circuit breaker

EGH2050FFB, Cutler Hammer, Eaton, Series G, type , 2P, 1PH, 50A, 600V, 65kA@480V, high interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip unit and load side lug terminals, Thermal Magnetic molded case circuit breakers
