BD2015, Cutler Hammer, Eaton, Westinghouse, BD Series, type duplex, 2P, 1PH, 20/15A, 120V, 10kA@120V, standard interrupting capacity, Feed-Thru, HACR rated, UL type BRD, install breaker only in panel positions that have notched bus stabs, complete with rejection tab feature, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

BQ220240, Cutler Hammer, BQ Series, type quadplex independent trip, 2P, 1PH, 20A/40A, 120/240V, 10kA@240V, standard interrupting capacity, Feed-Thru, HACR rated, UL type BRD, install breaker only in panel positions that have notched bus stabs, complete with rejection tab feature, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

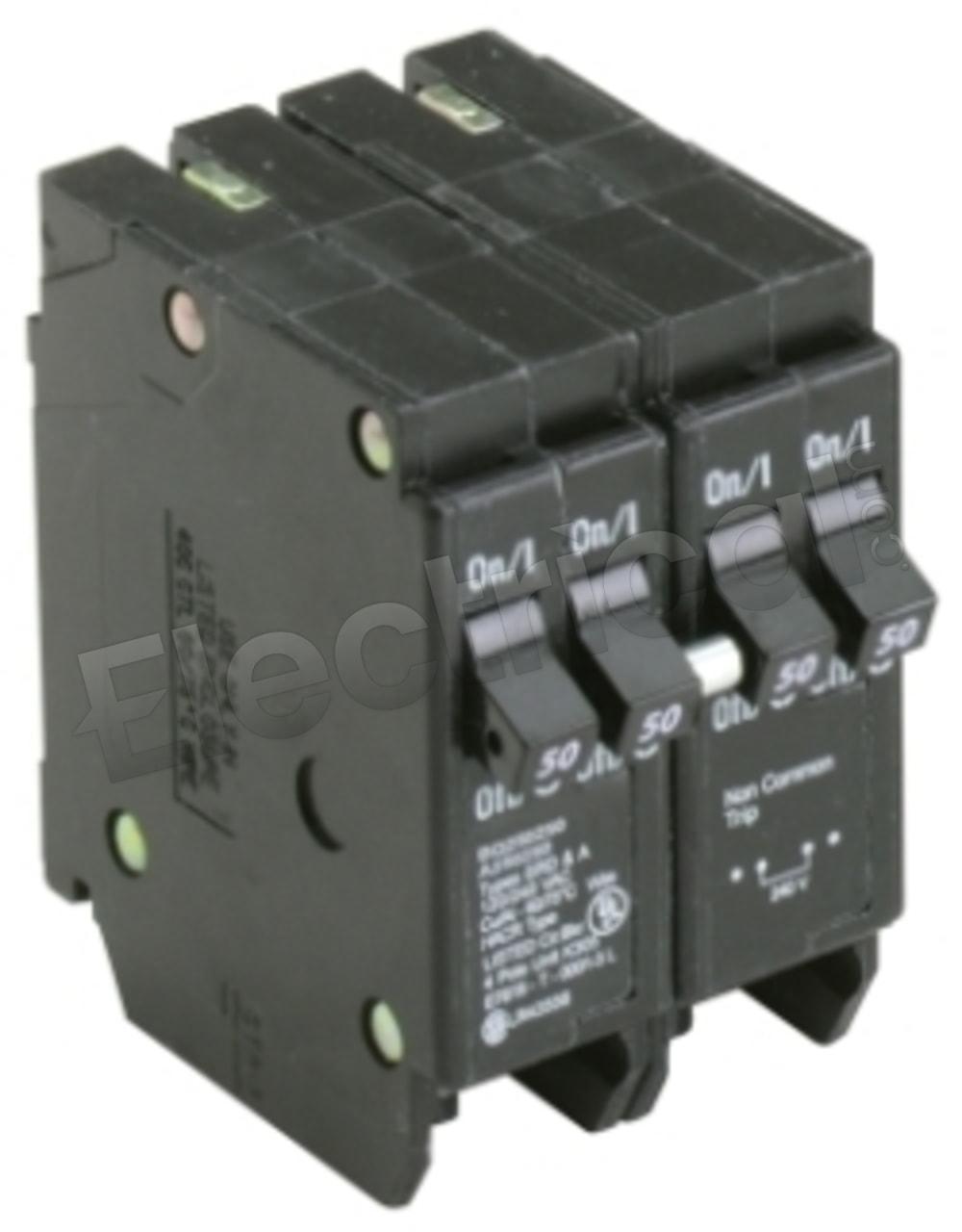

BQ250250, Cutler Hammer, BQ Series, type quadplex independent trip, 2P, 1PH, 50A/50A, 120/240V, 10kA@240V, standard interrupting capacity, Feed-Thru, HACR rated, UL type BRD, install breaker only in panel positions that have notched bus stabs, complete with rejection tab feature, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Q2M3125MTH, Square D, Q2 Series, type , 3P, 3PH, 125A, 240V, 22kA@240V, UL listed, standard interrupting capacity, Bolt-On, top mounted, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, suitable for use as main circuit breaker, Thermal Magnetic, molded case circuit breakers, these breakers are now obsolete; however, we do still stock them

1493D44G02, Cutler Hammer, Series C, type , auxiliary, 1A/1B, pigtail style leads, left or right side mounted, when installed in a circuit breaker the part number suffix is -A06, suitable for use with LDB,LD,HLD,LDC,CLD,CHLD,CLDC,MDL,HMDL,MDLB,HMDLB,LG,E2L,E2LM,E2M,E2MM frame and L-frame HMCP molded case circuit breakers

Q2M3150MT, Square D, Q2 Series, type , 3P, 3PH, 150A, 240V, 10kA@240V, UL listed, standard interrupting capacity, Bolt-On, top mounted, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, suitable for use as main circuit breaker, Thermal Magnetic, molded case circuit breakers, these breakers are now obsolete; however, we do still stock them

Q2M3225MT, Square D, Q2 Series, type , 3P, 3PH, 225A, 240V, 10kA@240V, UL listed, standard interrupting capacity, Bolt-On, top mounted, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, suitable for use as main circuit breaker, Thermal Magnetic, molded case circuit breakers, these breakers are now obsolete; however, we do still stock them

SQD-MOD6-36-BC-1000TM-MAP-SZ6, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 36 tall, 3PH, 600V, complete with Square D MAP361000 thermal magnetic molded case circuit breaker rated for 1000A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 6 FVNR motor starter rated for 540FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-24-BC-175TM-JJP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 24 tall, 3PH, 270A, 600V, complete with Square D JJP36175 thermal magnetic molded case circuit breaker rated for 175A and features long-time & instantaneous trip protection, this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-12-BC-60TM-HDP-SZ3, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 12 tall, 3PH, 90A, 600V, complete with Square D HDP36060 thermal magnetic molded case circuit breaker rated for 60A and features long-time & instantaneous trip protection, this also includes Nema Size 3 FVNR motor starter rated for 90FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-12-BC-50TM-HJP-SZ3, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 12 tall, 3PH, 90A, 600V, complete with Square D HJP36050 thermal magnetic molded case circuit breaker rated for 50A and features long-time & instantaneous trip protection, this also includes Nema Size 3 FVNR motor starter rated for 90FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-12-BC-40TM-HLP-SZ2, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 12 tall, 3PH, 45A, 600V, complete with Square D HLP36040 thermal magnetic molded case circuit breaker rated for 40A and features long-time & instantaneous trip protection, this also includes Nema Size 2 FVNR motor starter rated for 45FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-24-BC-175TM-LIP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 24 tall, 3PH, 600V, complete with Square D LIP36175 thermal magnetic molded case circuit breaker rated for 175A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-36-BC-350TM-LCP-SZ6, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 36 tall, 3PH, 600V, complete with Square D LCP36350 thermal magnetic molded case circuit breaker rated for 350A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 6 FVNR motor starter rated for 540FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-12-BC-150TM-HLP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 12 tall, 3PH, 270A, 600V, complete with Square D HLP36150 thermal magnetic molded case circuit breaker rated for 150A and features long-time & instantaneous trip protection, this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-48-BC-900TM-MAP-SZ6, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 48 tall, 3PH, 600V, complete with Square D MAP36900 thermal magnetic molded case circuit breaker rated for 900A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 6 FVNR motor starter rated for 540FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-18-BC-150TM-LCP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 18 tall, 3PH, 600V, complete with Square D LCP36150 thermal magnetic molded case circuit breaker rated for 150A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-36-BC-400TM-LAP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 36 tall, 3PH, 600V, complete with Square D LAP36400 thermal magnetic molded case circuit breaker rated for 400A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-36-BC-350TM-LAP-SZ5, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 36 tall, 3PH, 600V, complete with Square D LAP36350 thermal magnetic molded case circuit breaker rated for 350A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 5 FVNR motor starter rated for 270FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-12-BC-20TM-HJP-SZ1, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 12 tall, 3PH, 27A, 600V, complete with Square D HJP36020 thermal magnetic molded case circuit breaker rated for 20A and features long-time & instantaneous trip protection, this also includes Nema Size 1 FVNR motor starter rated for 27FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-18-BC-125TM-LCP-SZ4, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 18 tall, 3PH, 600V, complete with Square D LCP36125 thermal magnetic molded case circuit breaker rated for 125A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 4 FVNR motor starter rated for 135FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-48-BC-225TM-LHP-SZ4, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 48 tall, 3PH, 600V, complete with Square D LHP36225 thermal magnetic molded case circuit breaker rated for 225A with (LI) long-time and instantaneous trip functions; this also includes Nema Size 4 FVNR motor starter rated for 135FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.

SQD-MOD6-6-BC-15TM-FAP-SZ1, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 6 tall, 3PH, 600V, complete with Square D FAP36015 thermal magnetic molded case circuit breaker rated for 15A and features long-time & instantaneous trip protection, this also includes class 8536 nema size 1 FVNR motor starter rated for 27FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 4, copper and aluminum type buss motor control centers and vertical MCC sections.

SQD-MOD6-24-BC-150TM-JLP-SZ4, Square D, Model 6 MCC, electric motor starter/ Circuit Breaker type Combination MCC bucket, 24 tall, 3PH, 135A, 600V, complete with Square D JLP36150 thermal magnetic molded case circuit breaker rated for 150A and features long-time & instantaneous trip protection, this also includes Nema Size 4 FVNR motor starter rated for 135FLA, comes with heater overloads, 120V magnetic coil, complete with auxiliary contacts, control power transformer rated for 480 to 120VAC, red and green run lights, HOA pushbutton control switch, the bucket assembly includes all associated mounting hinges, screws, flat pan shelf and front door - everything you will need for the complete install. This MCC bucket is suitable for use with all Square D Model 5 & 6 copper and aluminum type bus motor control centers and vertical MCC sections.
