HJA36125AASHYP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 125A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, 380/480 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SHB4G4C2P, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 1600A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering & modbus communication features and 1000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PGD46040CU43ABD, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Draw-Out, 100% rated, complete with 1A/1B overcurrent trip switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

SEHF36350LIT4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 125VDC shunt trip & undervoltage trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

NRGF46060CU64AE1, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with micrologic interchangeable power 6.0P trip with Modbus communications, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

HDA260402AFBKSR, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 40A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 125 VDC shunt trip, molded case circuit breakers

HGL26070AFBCYP, Square D, PowerPact, type , 2P, 1PH, 70A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch, "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0622NMNJNYNRDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

PLD34100BC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 1000A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Draw-Out, complete with 1A/1B alarm switch, basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

WLH1F316QA, Siemens, WL Series, type , frame size I, fixed mount, 3P, 3PH, 1600A, 600V, 85kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with solid state ETU725 programmer, LSI - Long-Time, Short-Time and Instantaneous trip functions and 1200A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MJA36300UL, Square D, Schneider Electric, PowerPact, type , 3P, ABC phase circuit configuration, 3PH, 300A, 600V, 65kA@480V, UL listed, current limiting, I-Line Style Plug-In, complete with 48Vac UVR, basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0322NMNXNNMNNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed metal padlockable pushbutton cover, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

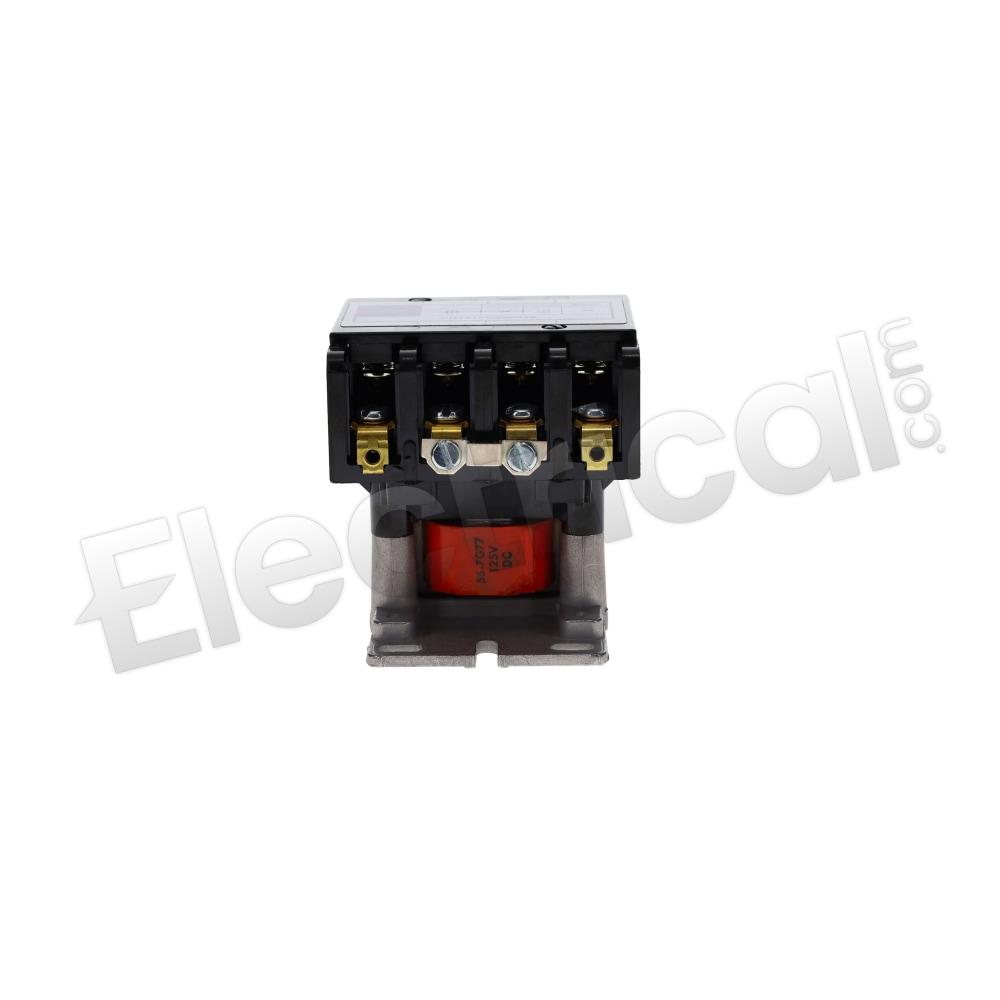

192A9770P2, General Electric, X relay, 125Vdc, used with R diagram and Quick Close AK, qty 1 needed per breaker, suitable for All AK, AKR Except AK-1 Series air breakers

SEF361400LSIGES9E4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1400A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEF36350LIB8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0522NMNA2NNRCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

LG3500S35, Cutler Hammer, Eaton, Westinghouse, Series G, type , 3P, 3PH, 500A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, suitable for reverse feed applications, magnetic pickup range 500-2500, complete with right-pole mounted 380-440Vac or 220-250Vdc, 50/60Hz left side mount shunt trip, I - Instantaneous trip functions and line & load side lug terminals, Solid State electronic, engine generator molded case circuit breakers

MDN4083LEA0722NMNFNNNKCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SEHD36600ES3F4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 600A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDG33M0125D5YK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 125A, 65kA@480V, Bolt-On, line side lug terminals, complete with PXR20D ARMS trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and Modbus RTU, CAM Link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MS31M04, General Electric, M-PACT Plus, type , frame size 1, manually operated, without cassette, moving portion only, 5 N.O.-3 N.C. Auxiliary switches, 3P, 3PH, 400A, 690V, 50kA@415V, Draw-Out, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

HGL36150U31XAEBHUH, Square D, PowerPact, type , 3P, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch low-level, 380/480 VAC under voltage release (UVR), molded case circuit breakers

QJ23B22500S07, Siemens, QJ Frame, type , 3P, 3PH, 225A, 240V, 10kA@240V, standard interrupting capacity, Bolt-On, complete with 24VDC shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

PLF34025CU64BE1AC, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 250A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Bolt-On, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable power 6.0P trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers
